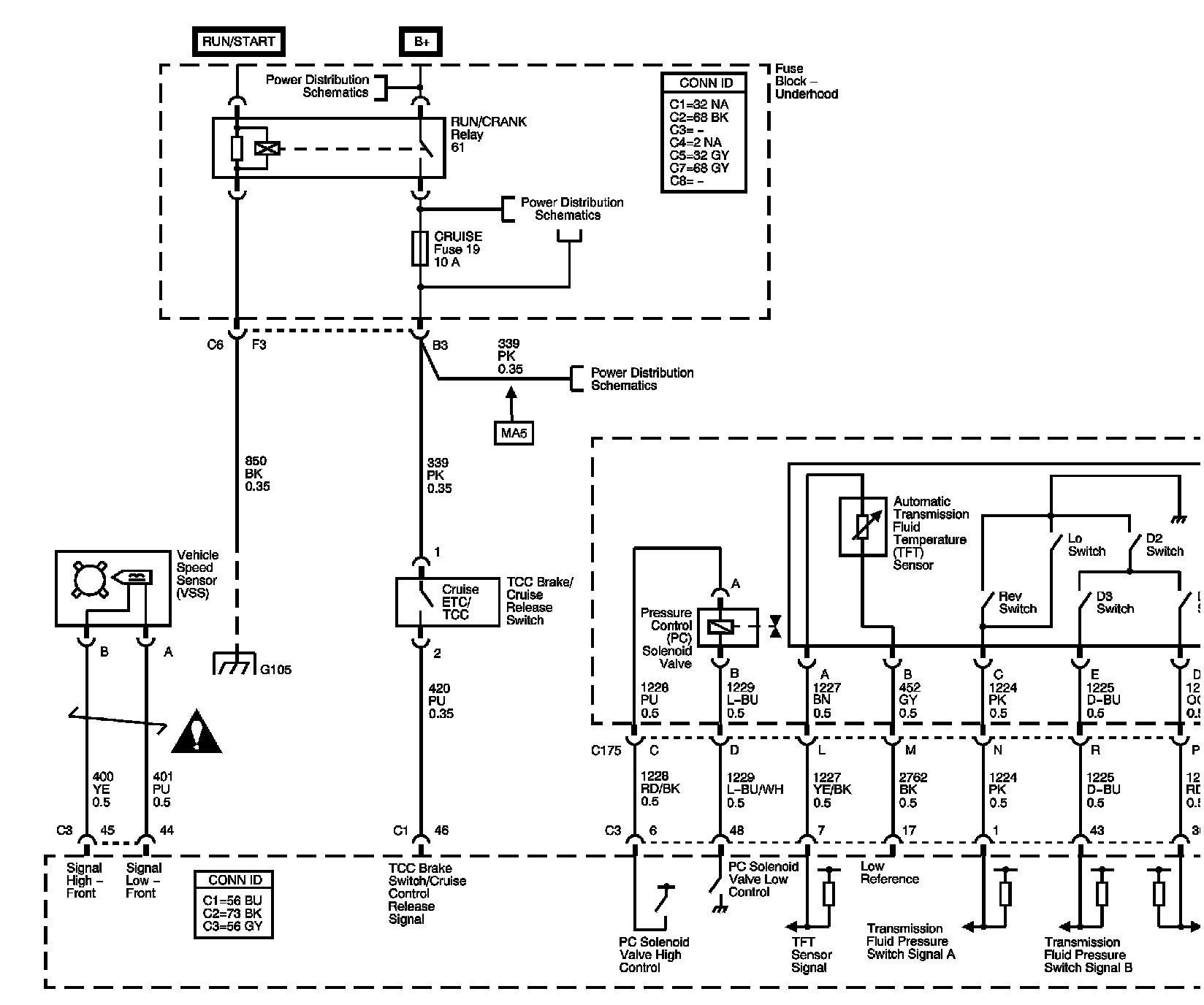

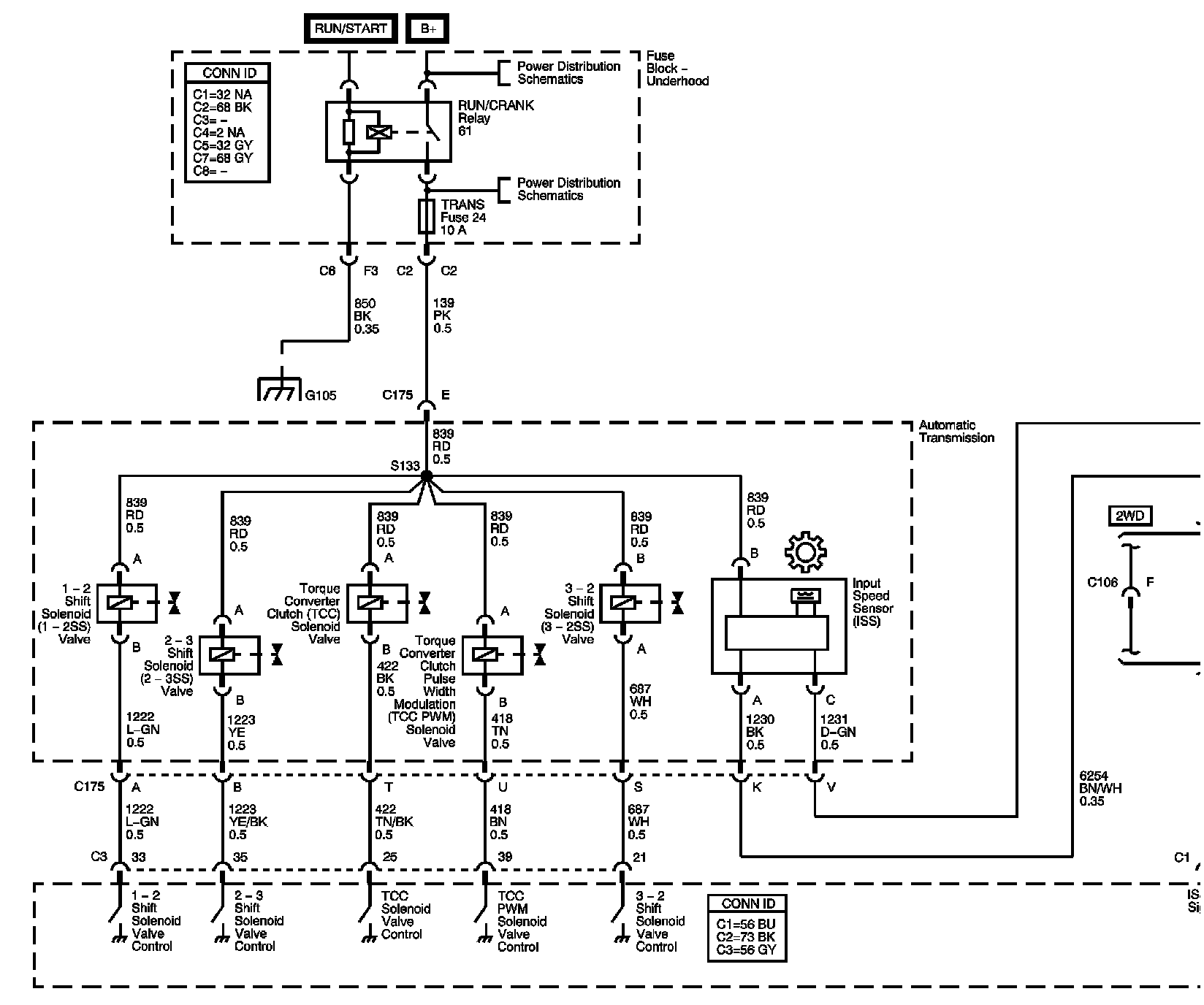

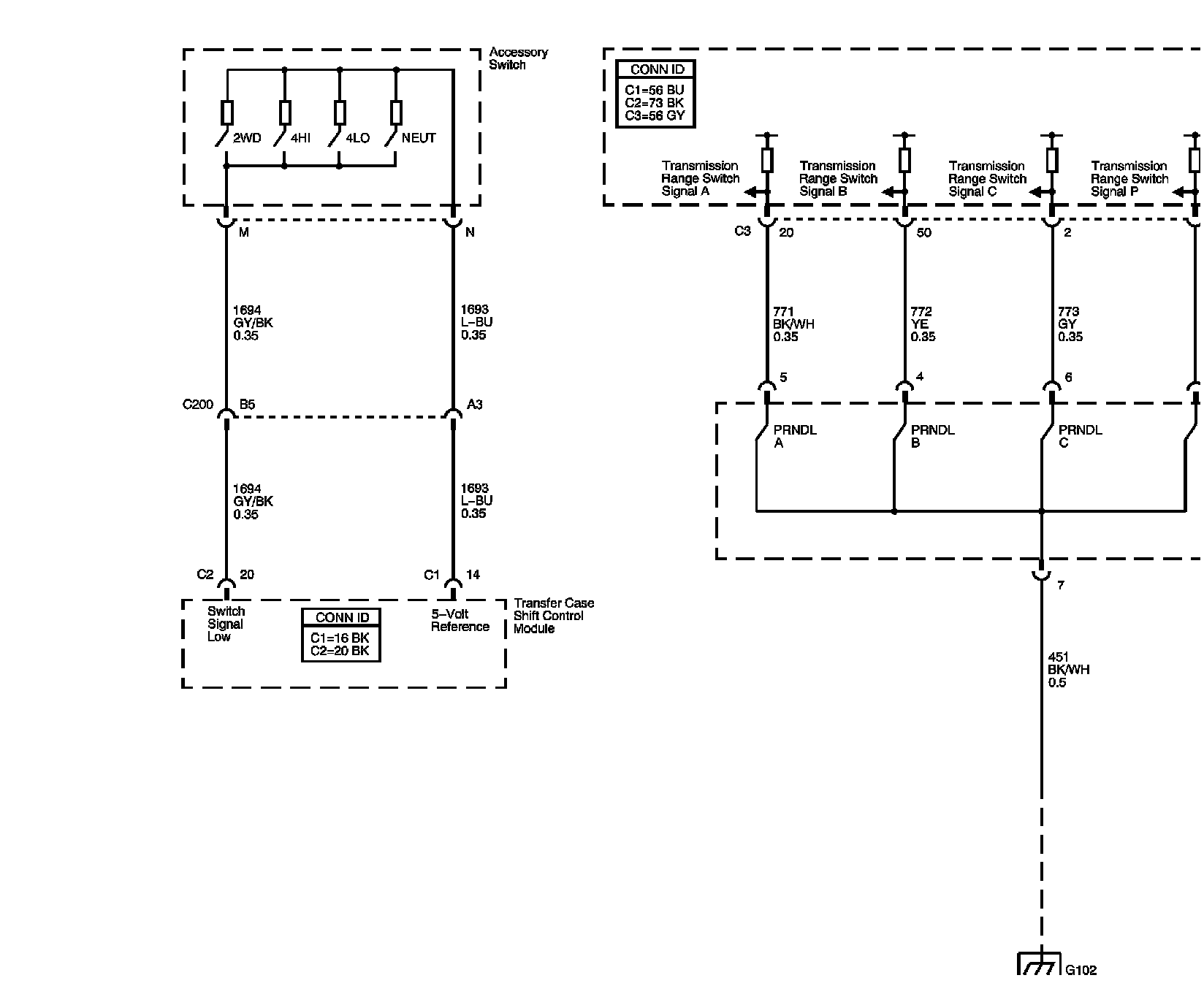

Automatic Transmission Controls Schematics



Automatic Transmission Controls Schematics

:::




MW::




*�::





Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
