Home >> Isuzu >> 2007 >> i-370 2WD L5-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Dimmer Switch

Dimmer Switch

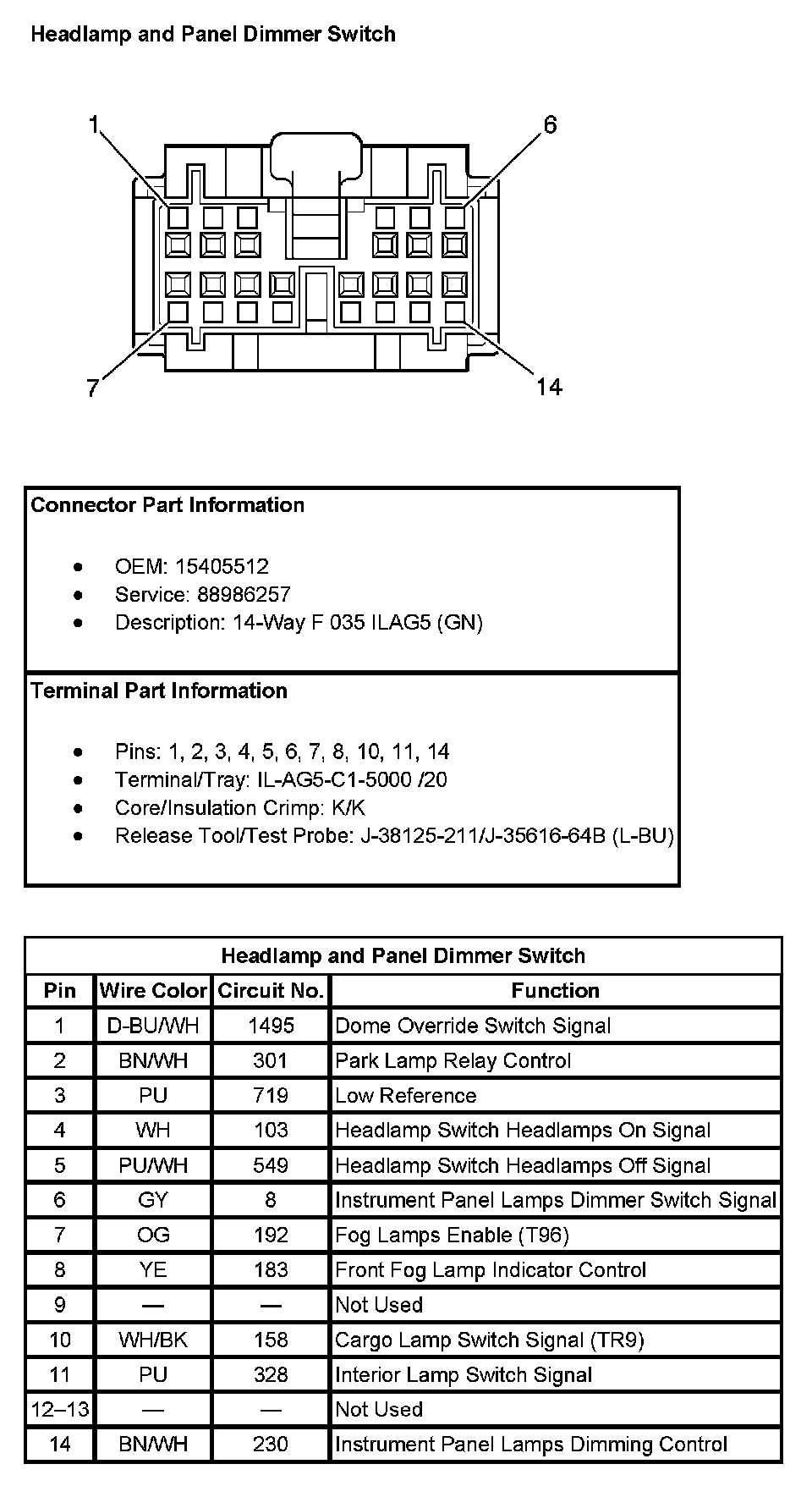

Headlamp And Panel Dimmer Switch:
