i-370 2WD L5-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Fluid Pressure Sensor/Switch, A/T
Fluid Pressure Sensor/Switch, A/T

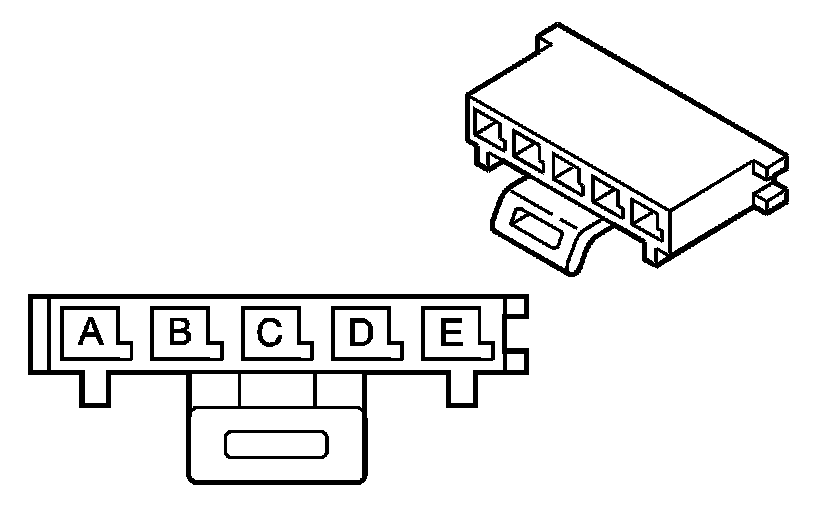

Automatic Transmission Internal Connector End Views

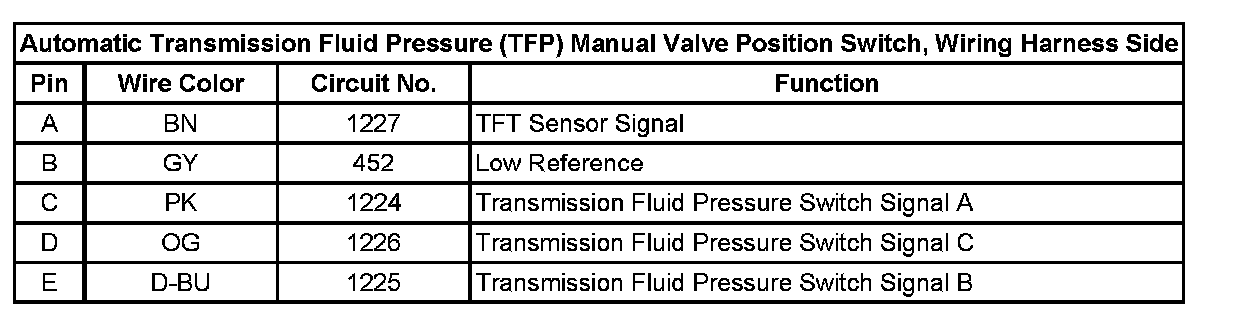

Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch, Wiring Harness Side:
