Electronic Brake Control Module: Diagrams



Antilock Brake System Connector End Views

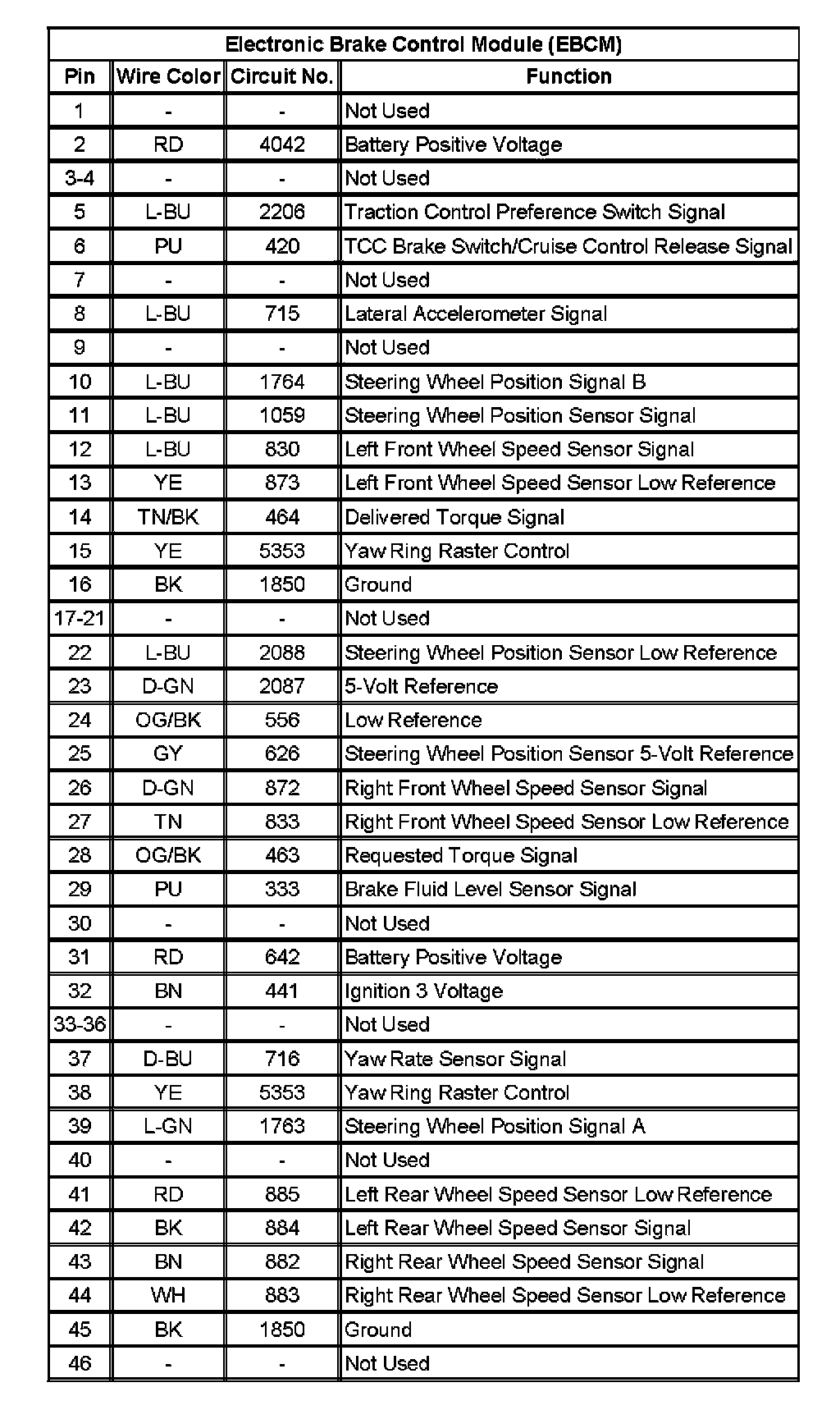

Electronic Brake Control Module (EBCM):







Electronic Brake Control Module (EBCM):
