Home >> Isuzu >> 2007 >> Ascender 2WD L6-4.2L >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Automatic Transmission Controls Schematics

Automatic Transmission Controls Schematics



Automatic Transmission Controls Schematics (4.2L)

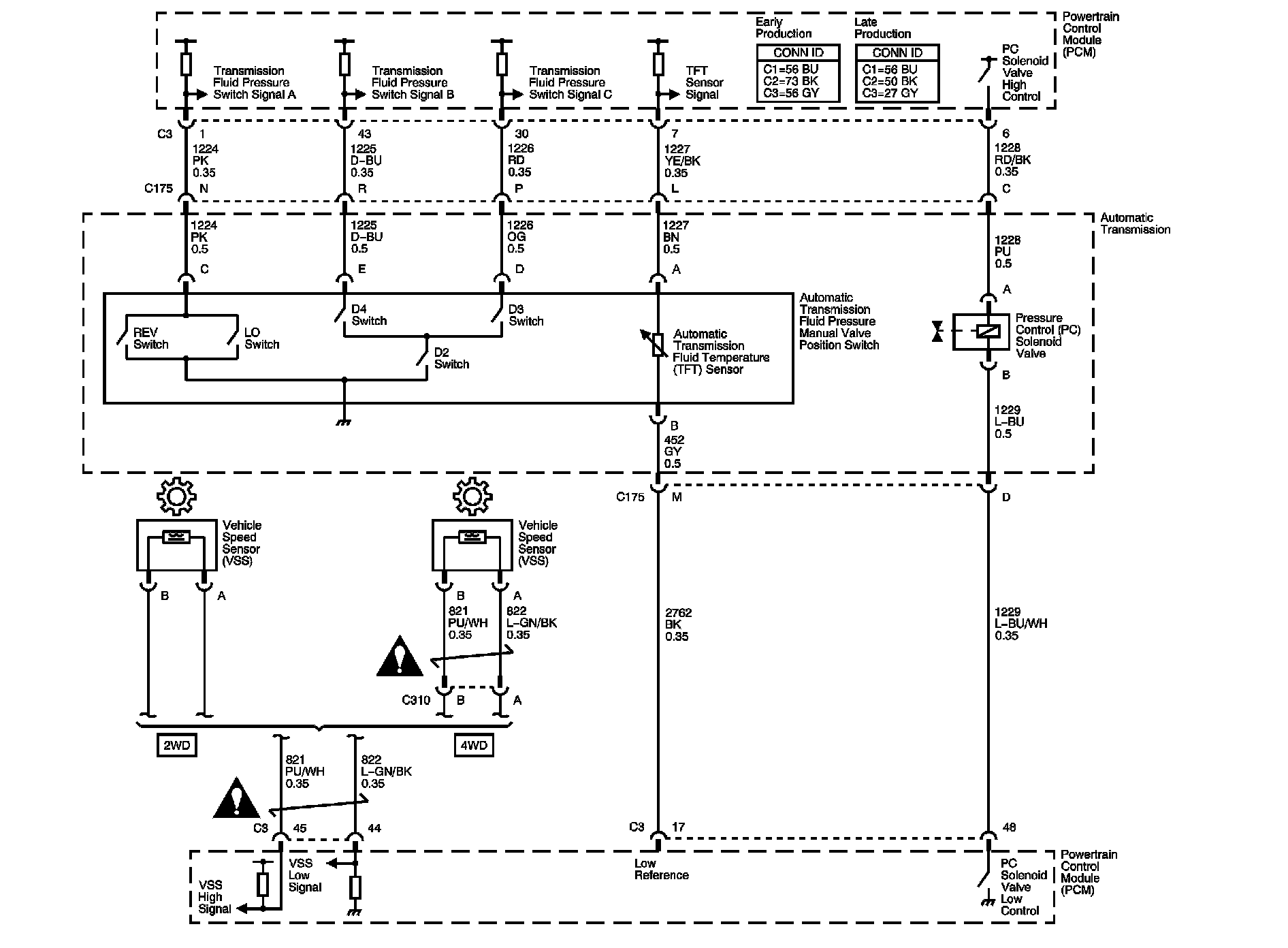

Automatic Transmission Controls Schematics 1:

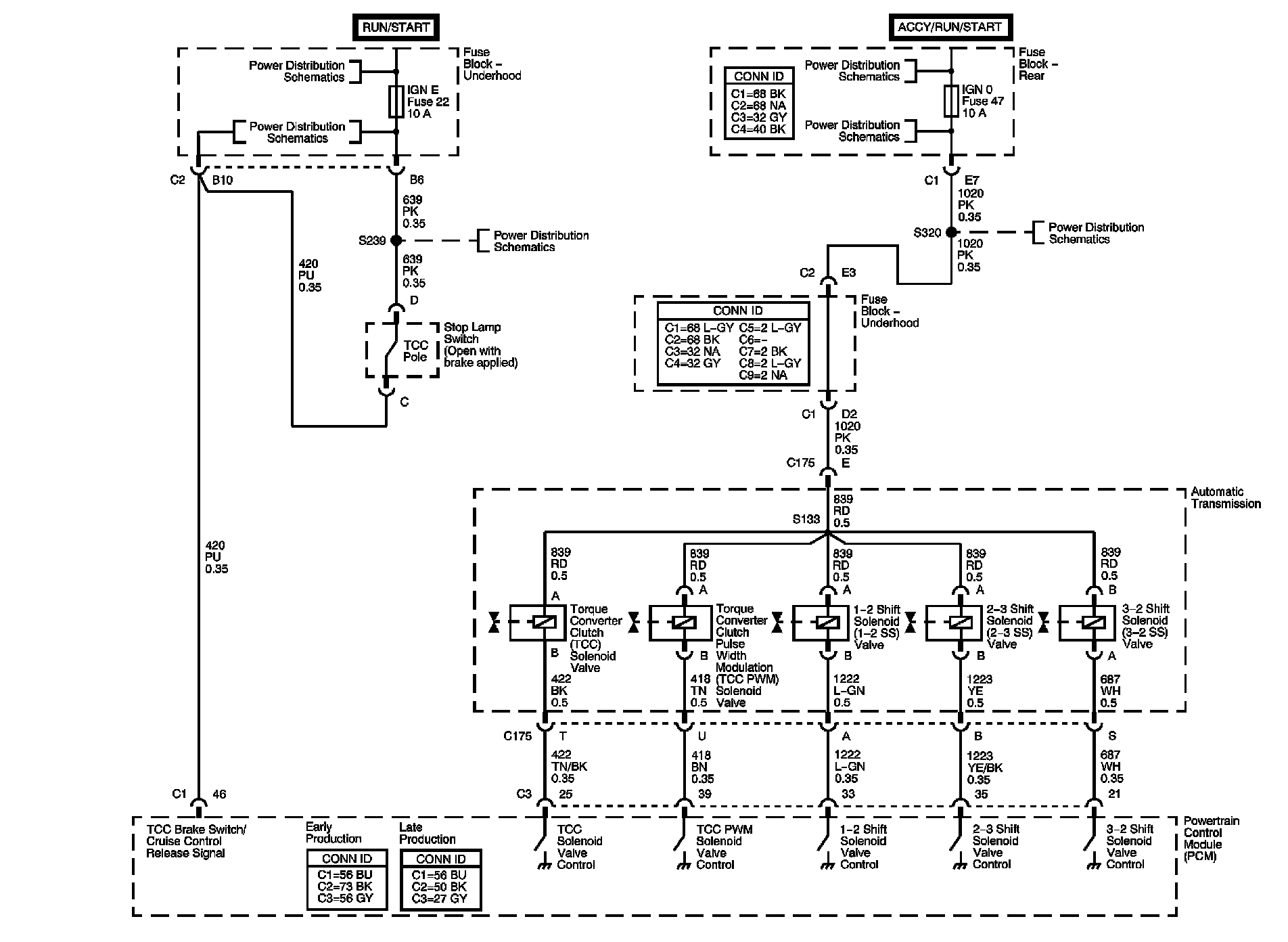

Automatic Transmission Controls Schematics 2:

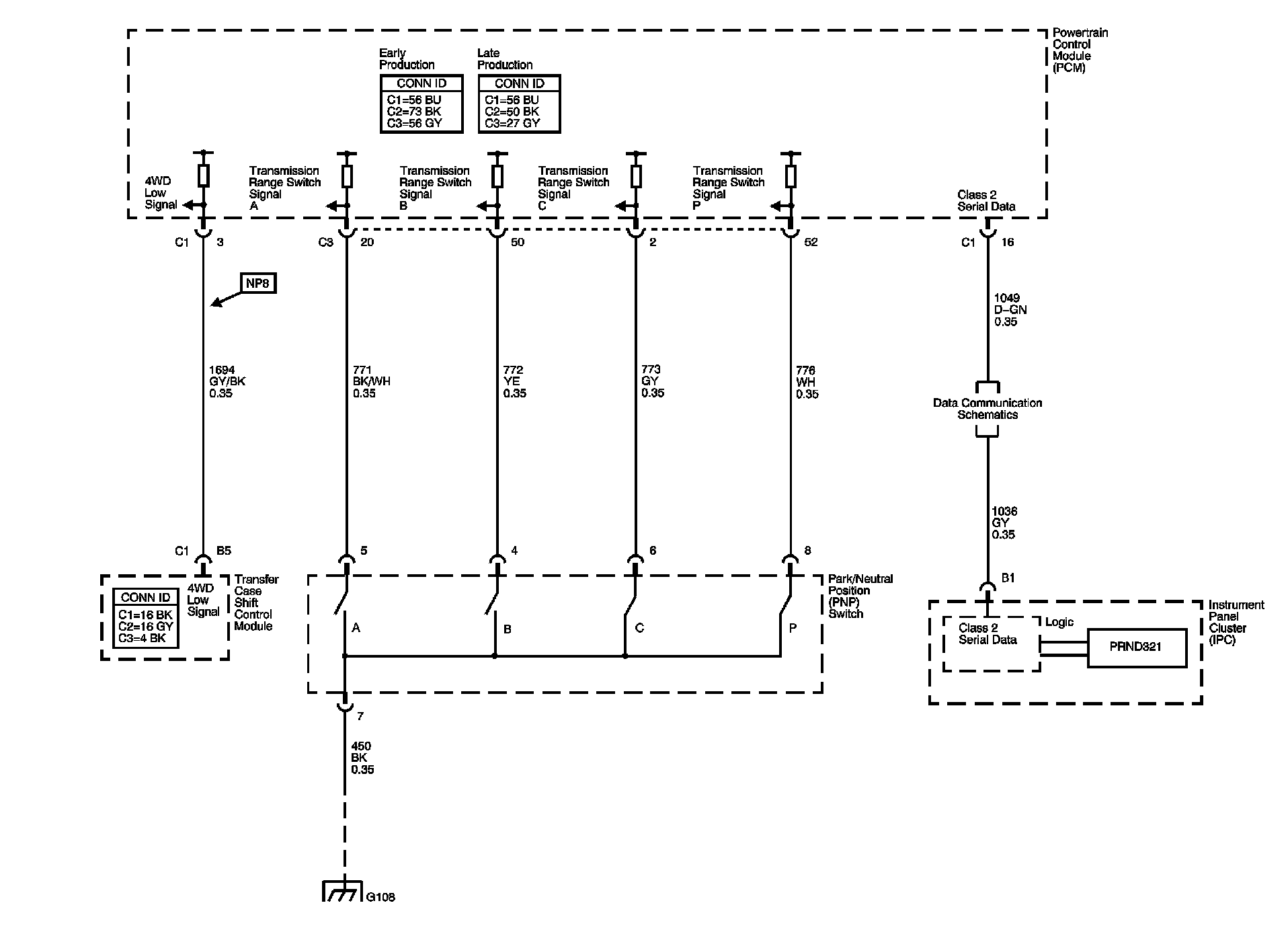

Automatic Transmission Controls Schematics 3:





Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
