Power and Ground Distribution
>>
Locations
>>
Engine Views
Engine Views

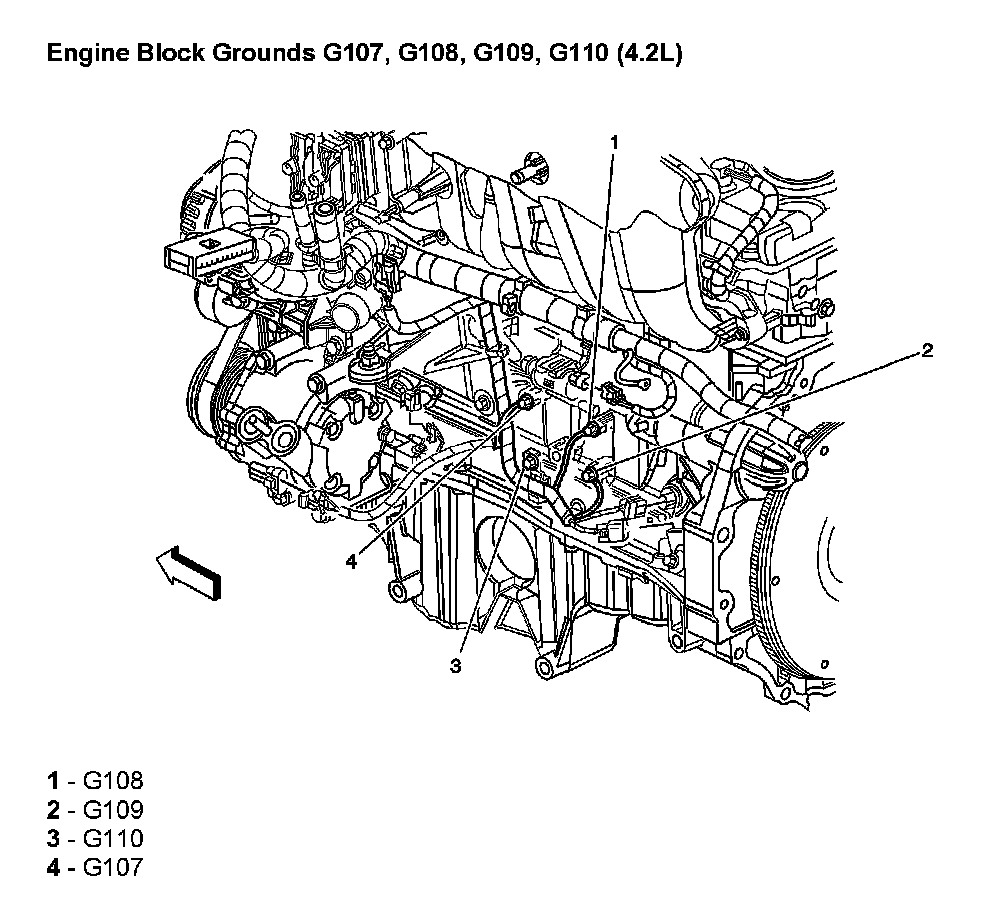

Engine Block Grounds G107, G108, G109, G110 (4.2L):
