Home >> Isuzu >> 2006 >> i-350 L5-3.5L >> Repair and Diagnosis >> Locations >> Component Locations

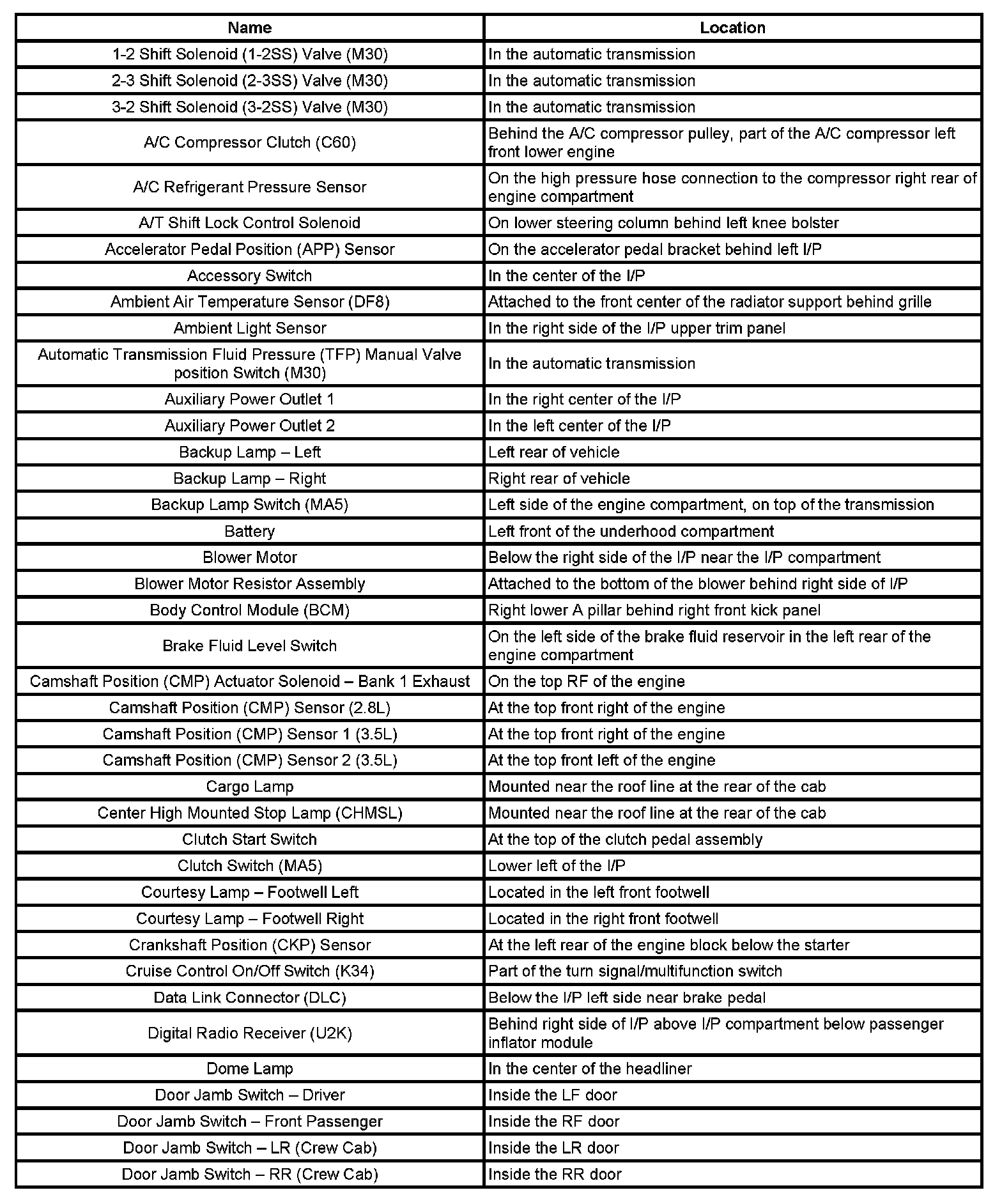

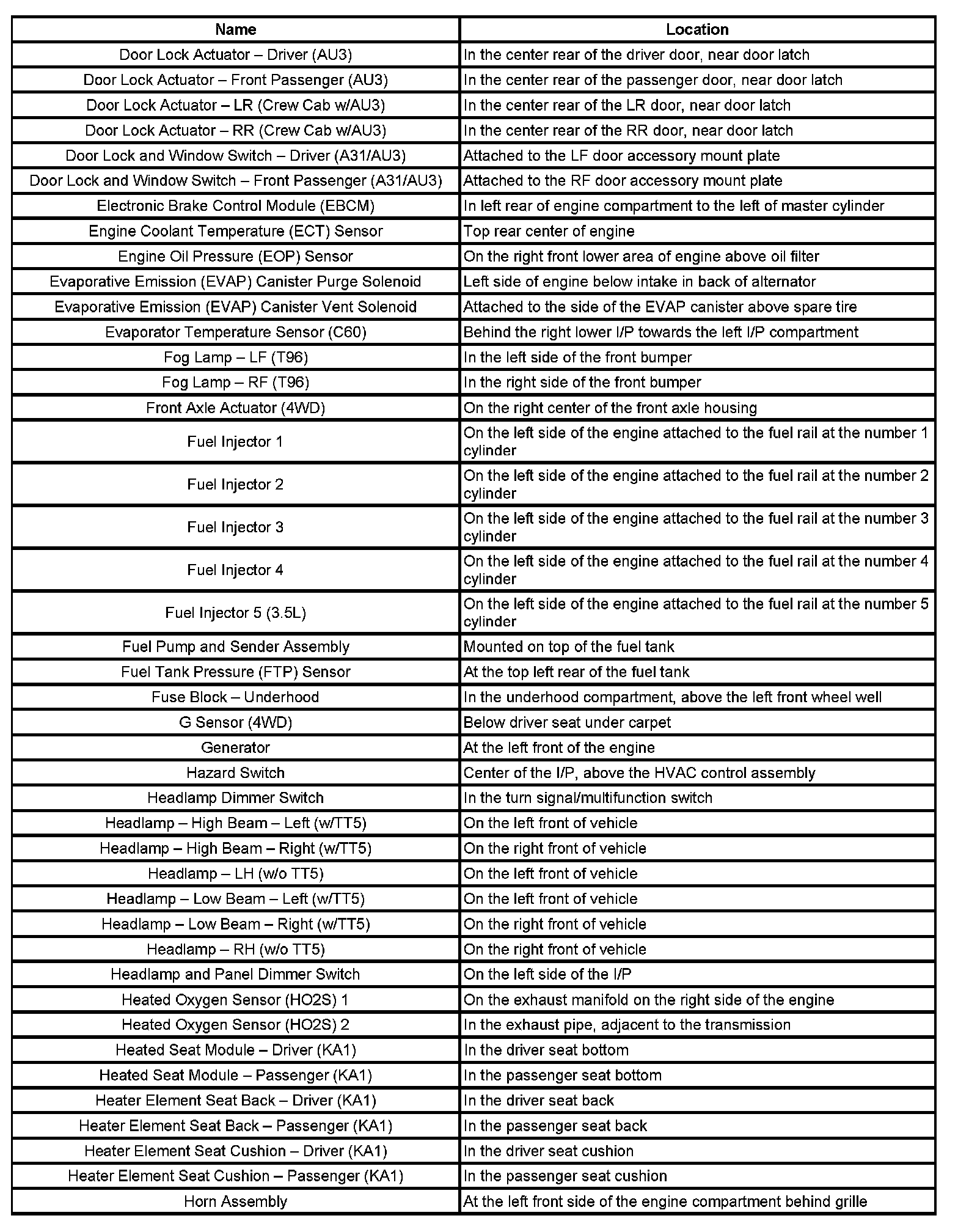

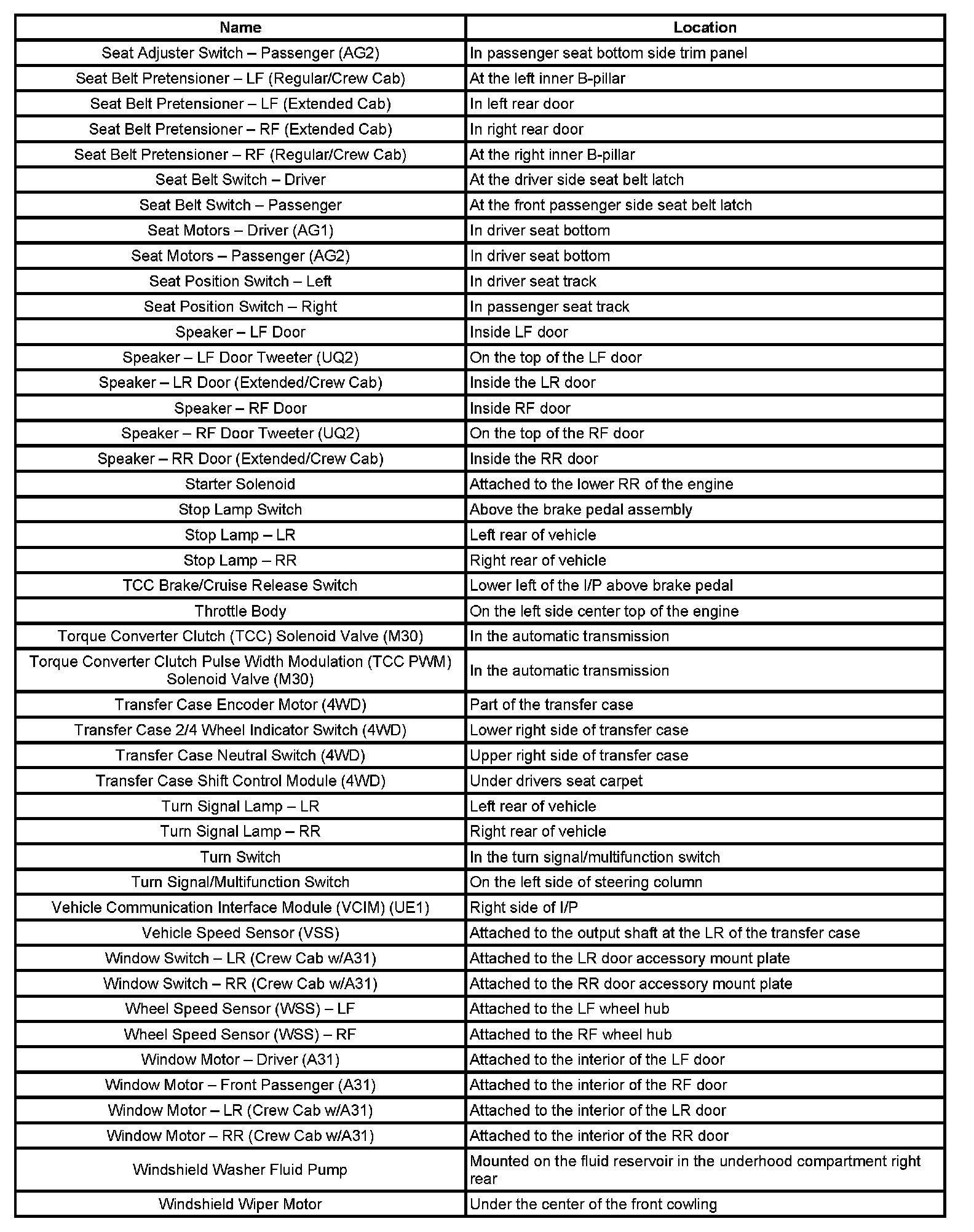

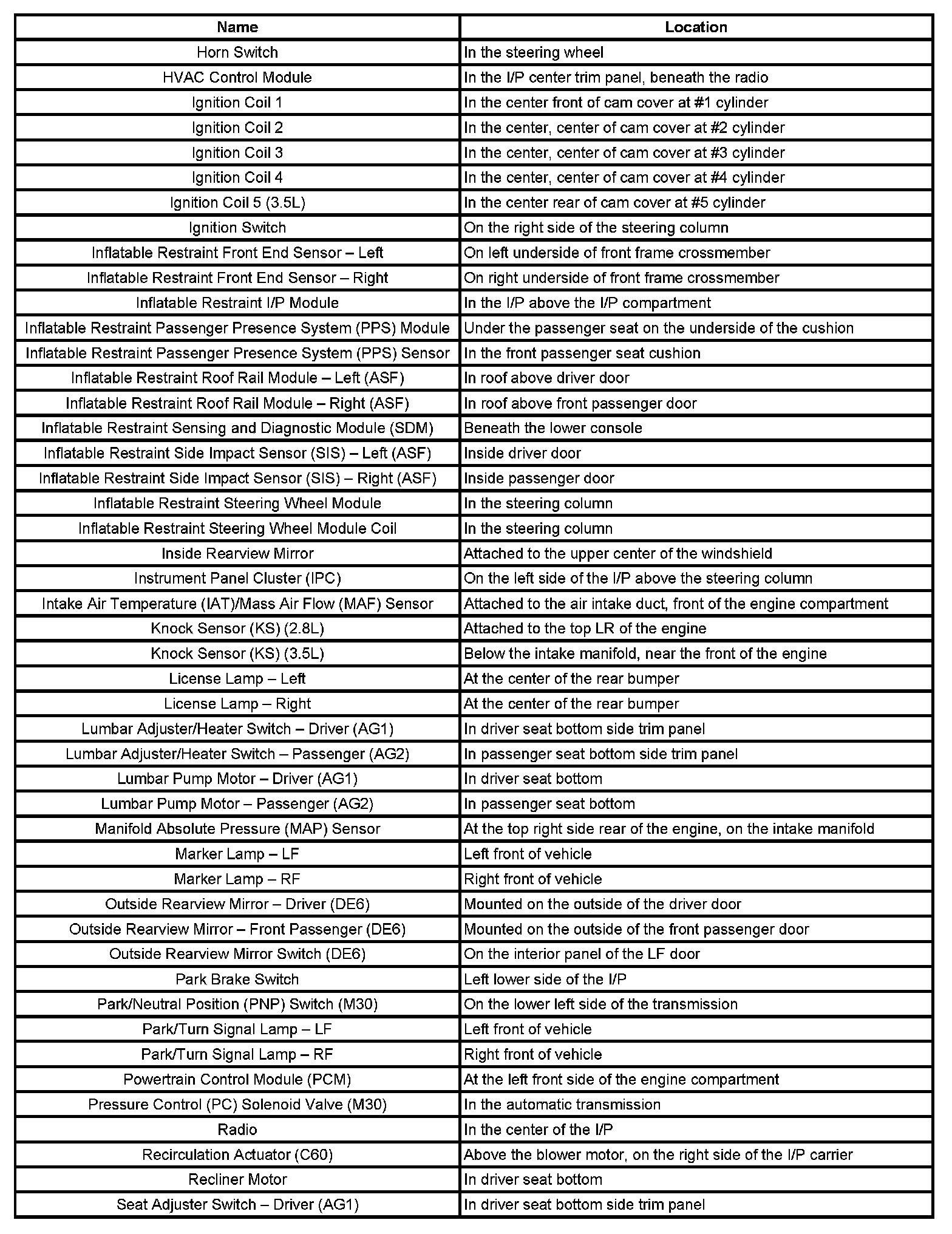

Component Locations

1-2 Sh - Do:

Do - Ho:

Ho - Se:

Se - Wi:

Windshield Wiper:
