Home >> Isuzu >> 2006 >> i-280 L4-2.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Application and ID

Relay Box: Application and ID

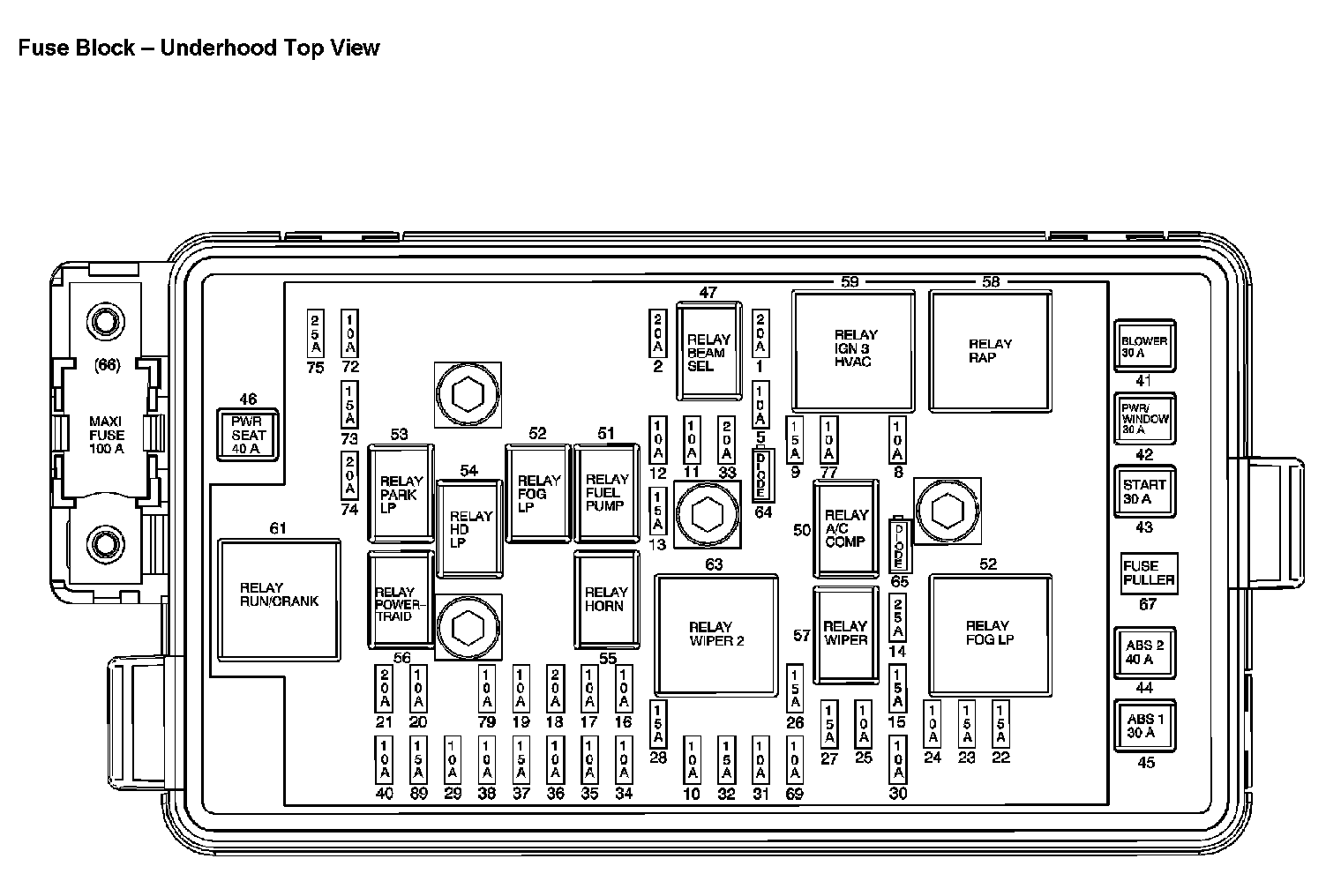

Location View:

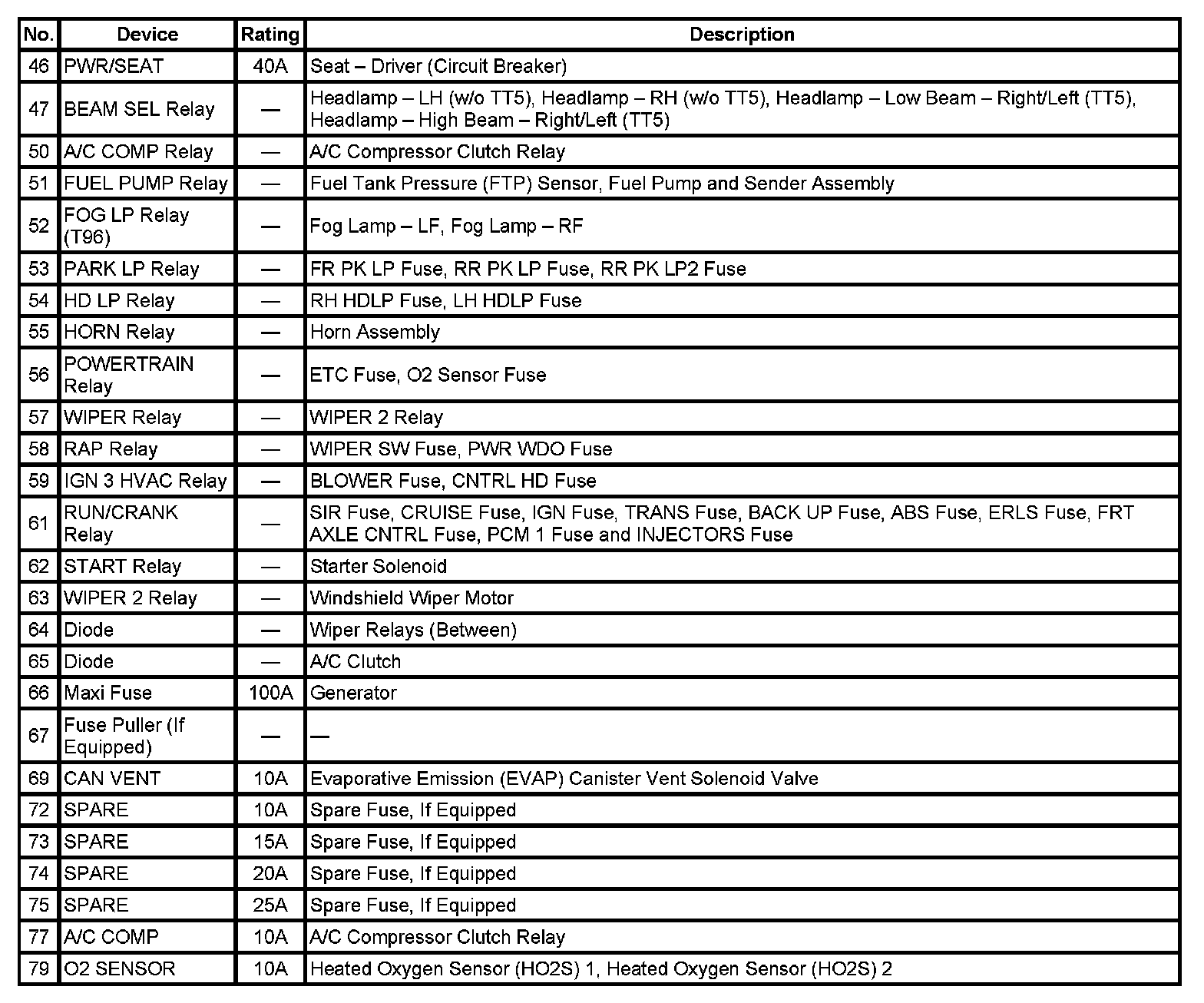

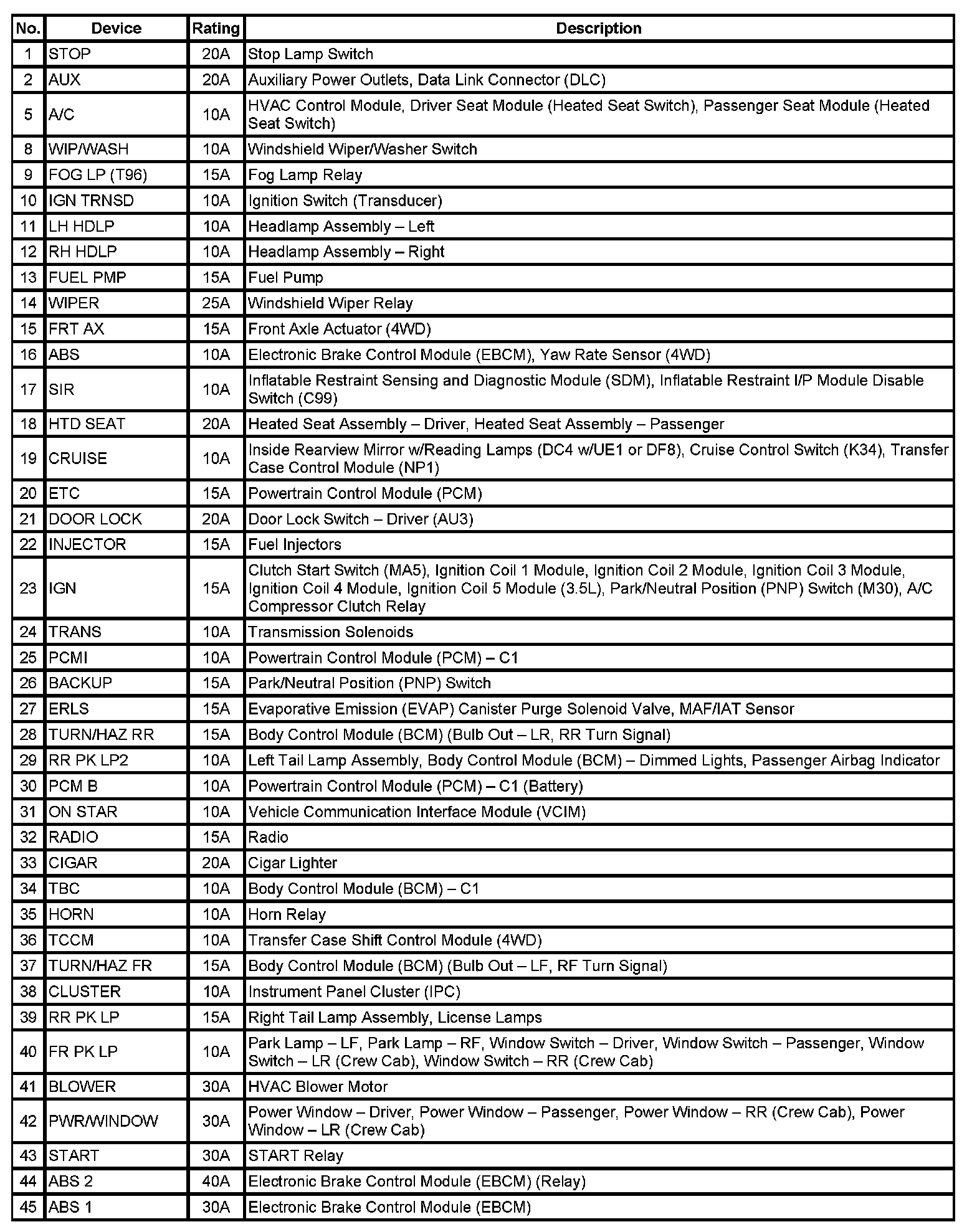

Application Table (Part 1):

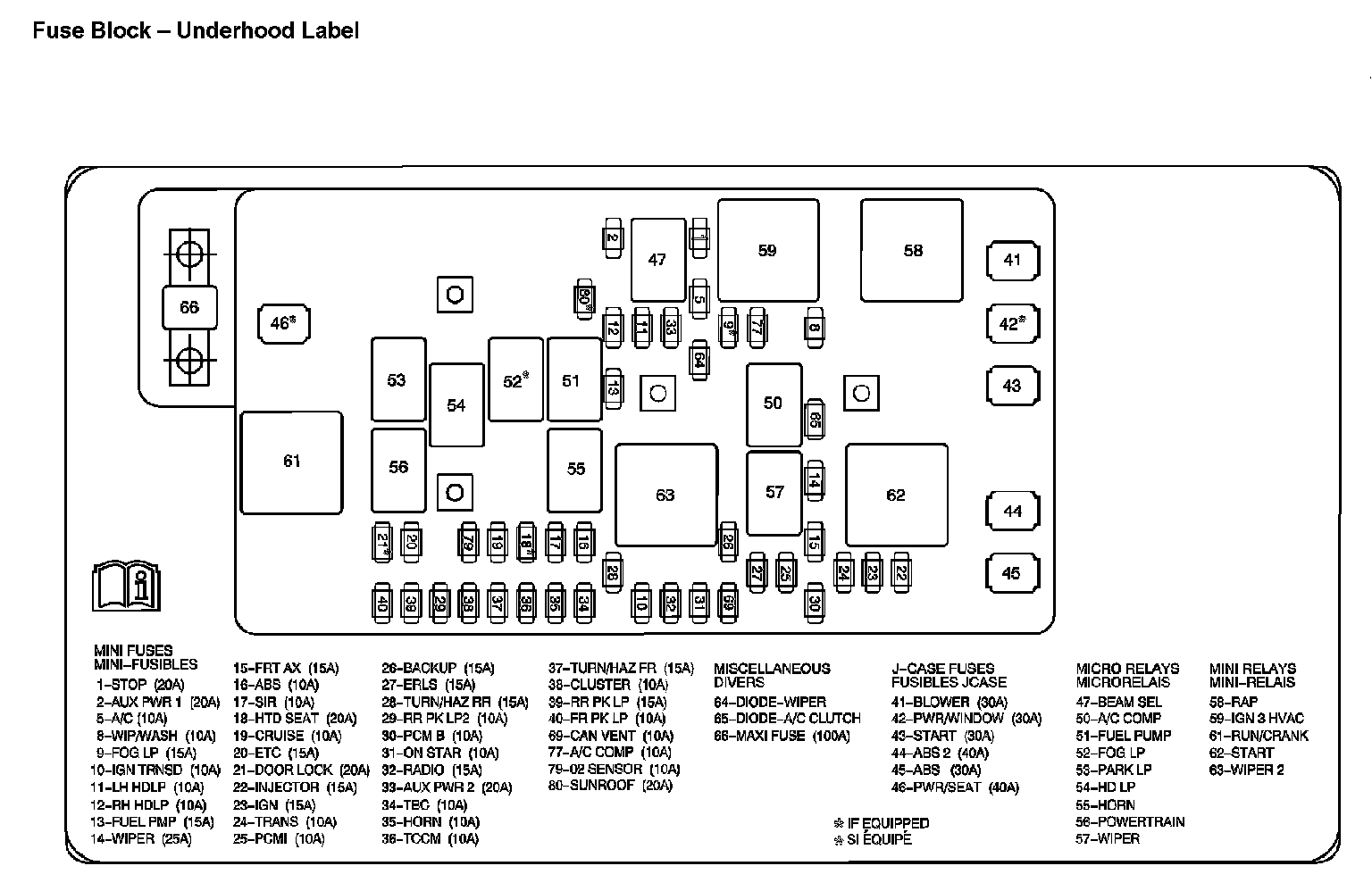

Application Label (Part 2):




Location View:




Location View:
