Home >> Isuzu >> 2006 >> i-280 L4-2.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> Instrument Panel Views

Instrument Panel Views

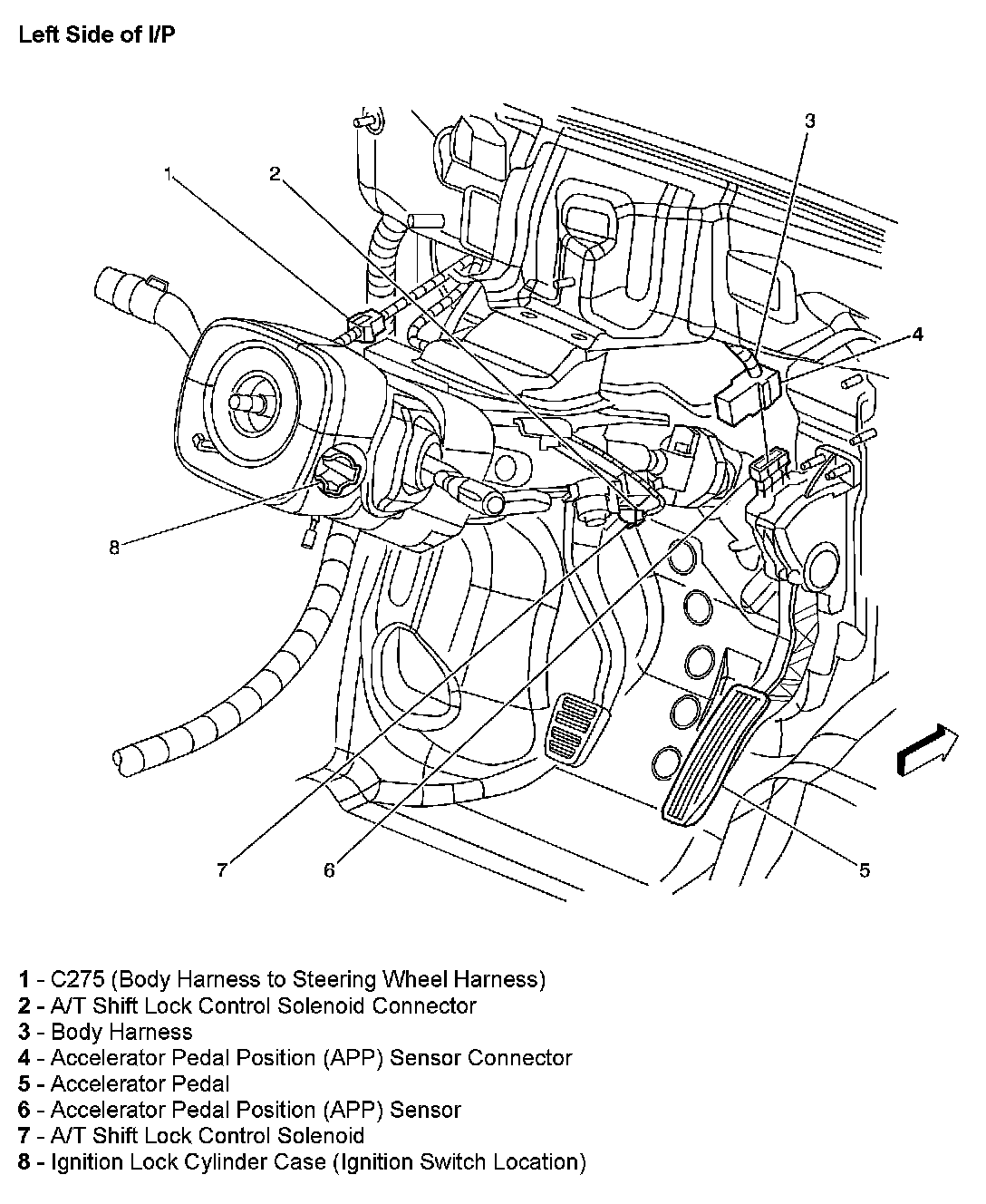

Left Side Of I/P:
