Home >> Isuzu >> 2006 >> i-280 L4-2.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> I/P View

I/P View

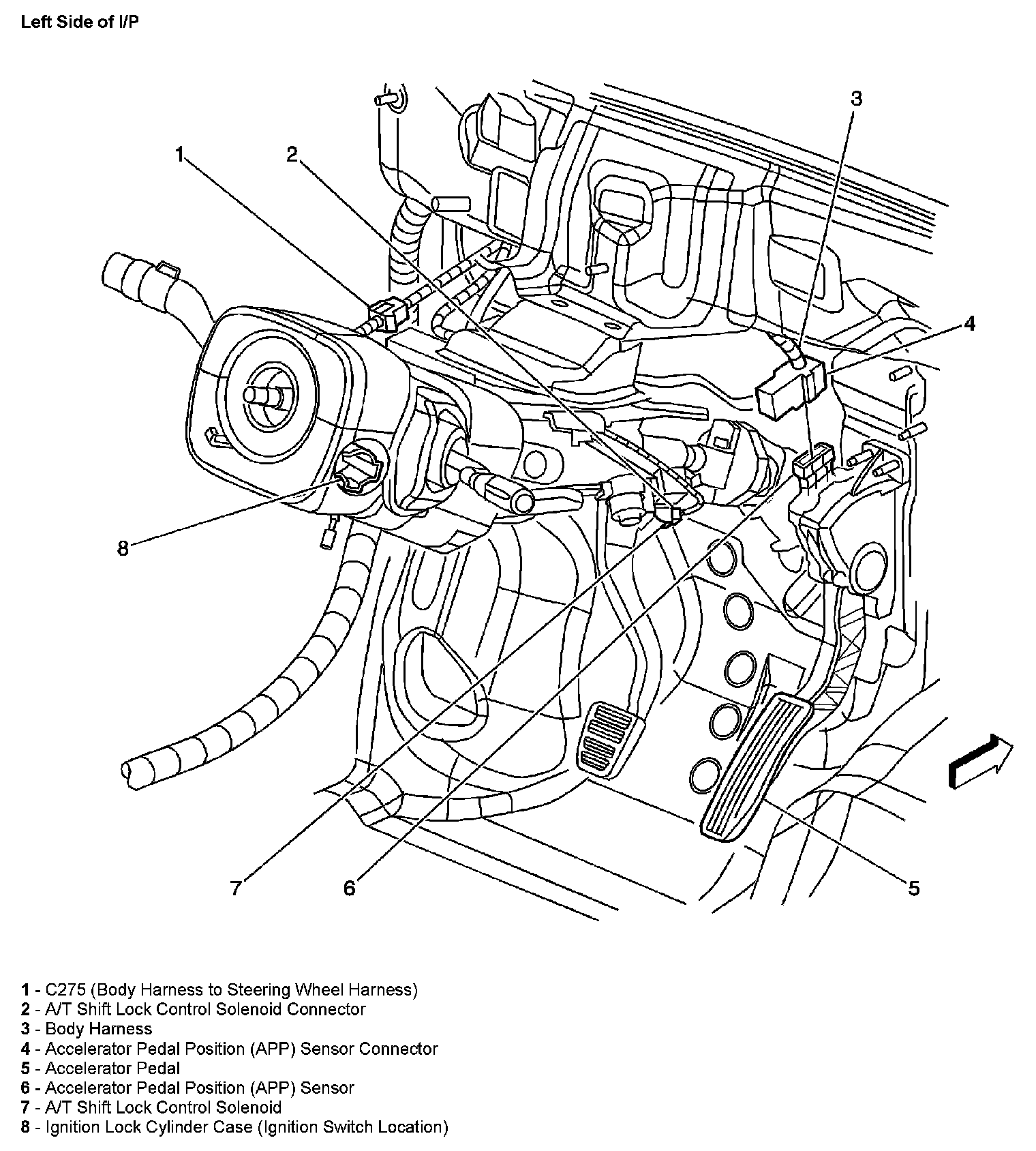

Left Side Of I/P:
