Engine Lift Bracket Installation



Engine Lift Bracket Installation

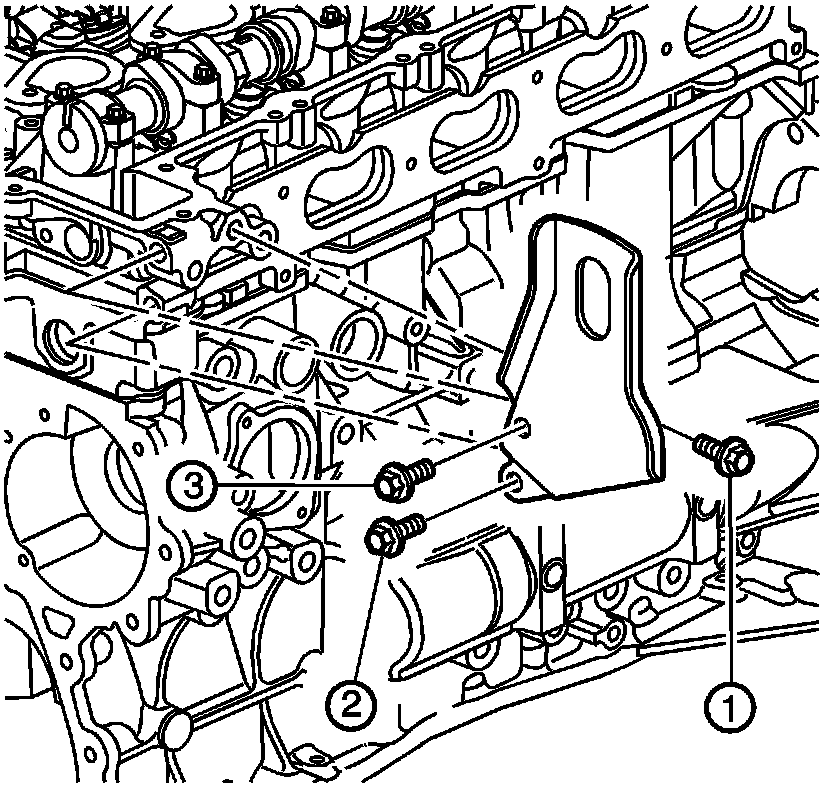

1. Install the engine lift bracket.

2. Notice: Refer to Fastener Notice in Service Precautions.

Install the engine lift bracket bolts in sequence.
^ Tighten the engine lift bracket bolts a first pass in sequence to 5 Nm (44 inch lbs.)
^ Tighten the engine lift bracket bolts a final pass in sequence to 50 Nm (37 ft. lbs.)
