Home >> Isuzu >> 2006 >> Ascender 2WD L6-4.2L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Fluid Pressure Sensor/Switch >> Specifications

Fluid Pressure Sensor/Switch: Specifications

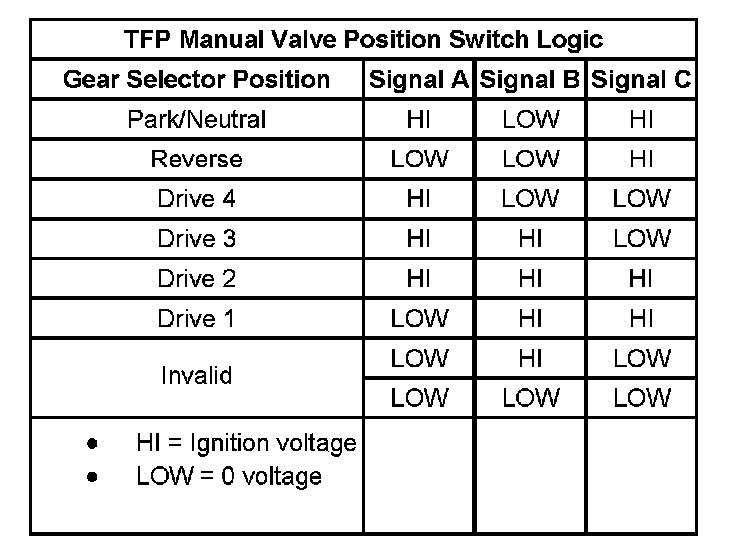

TFP Manual Valve Position Switch Logic:
