Electronic Brake Control Module: Diagrams

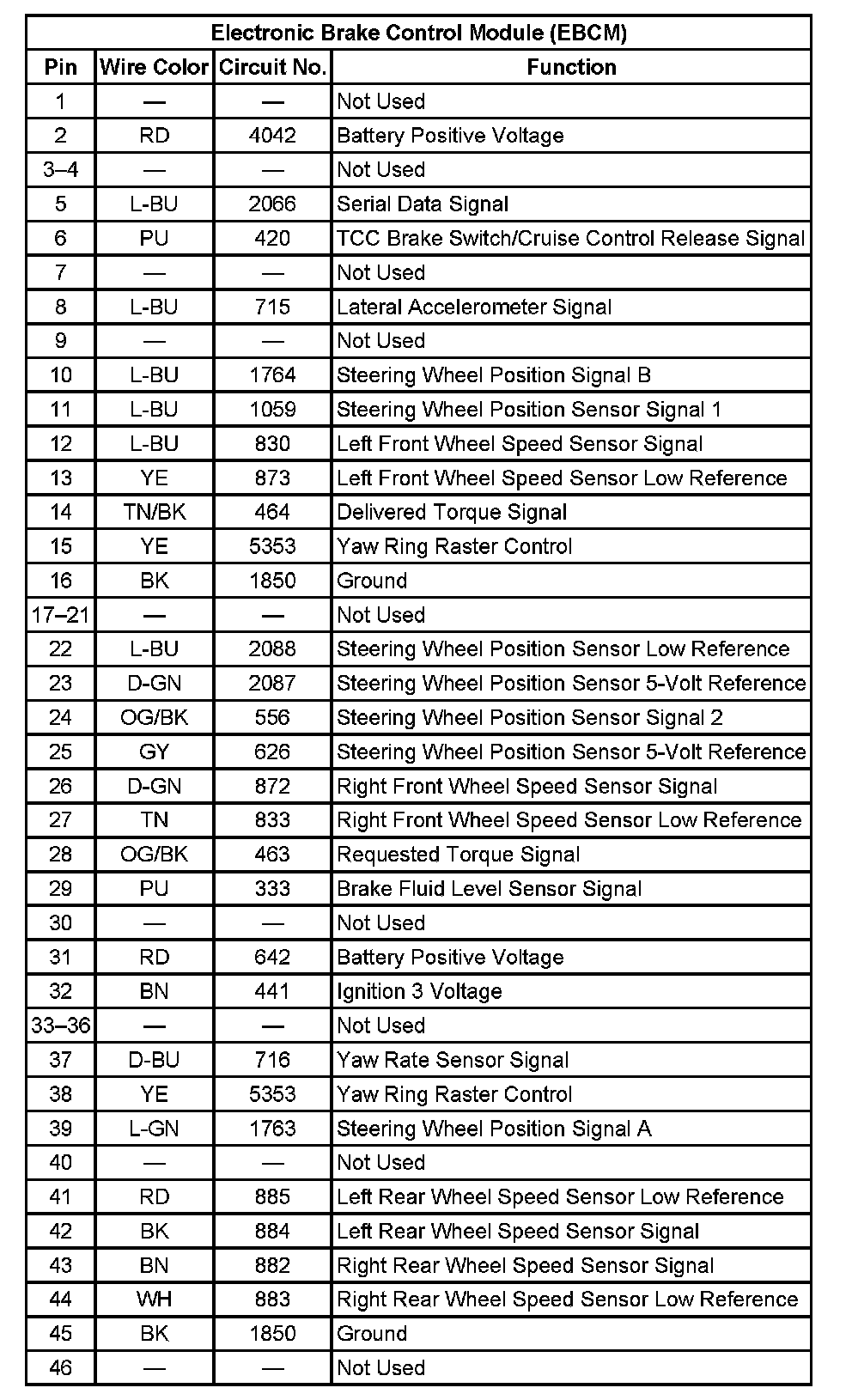

Electronic Brake Control Module (EBCM)

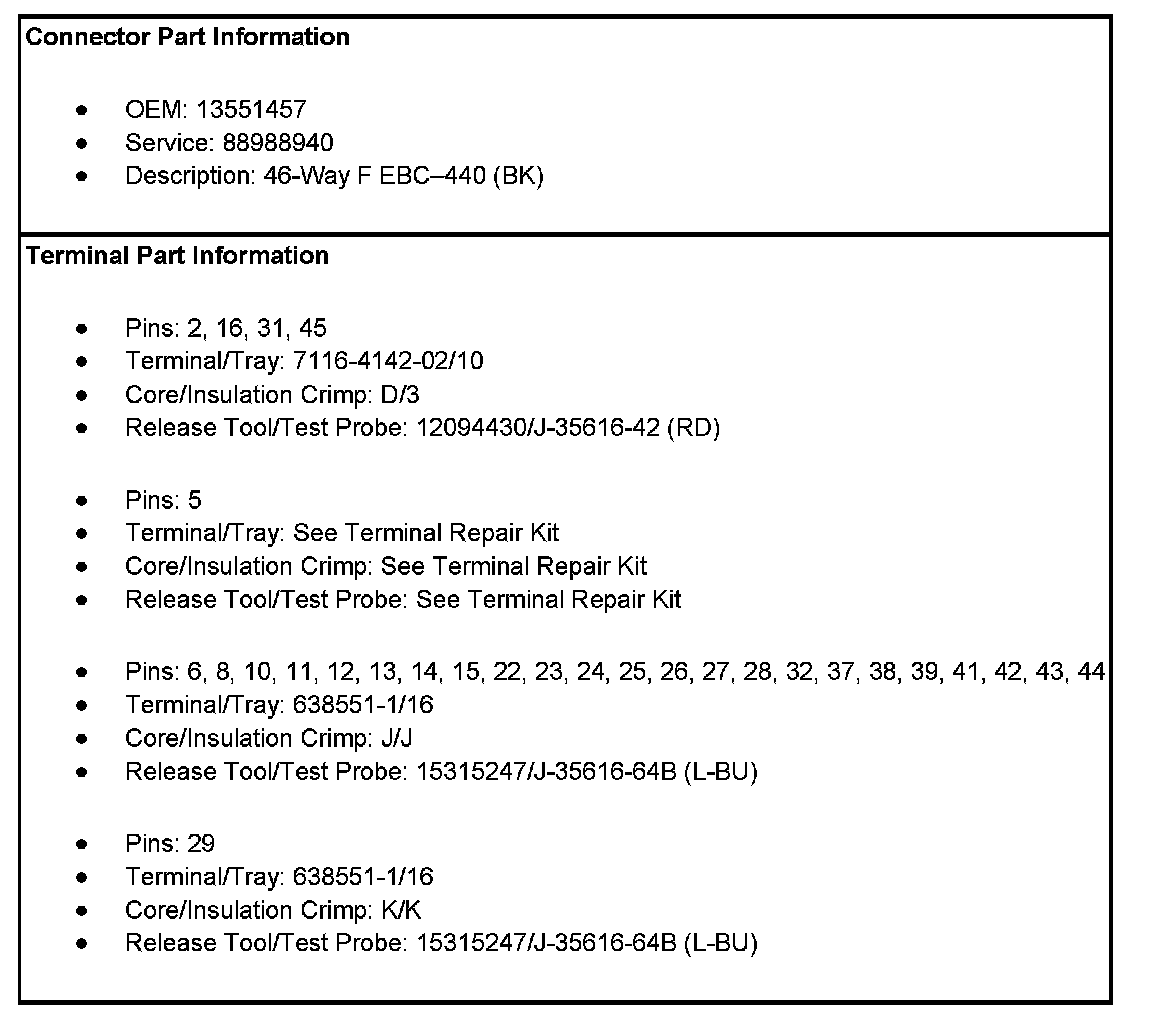

Electronic Brake Control Module (EBCM):




Electronic Brake Control Module (EBCM):




Electronic Brake Control Module (EBCM):
