Electrical Diagrams

Automatic Transmission Controls Diagrams (4.2L)

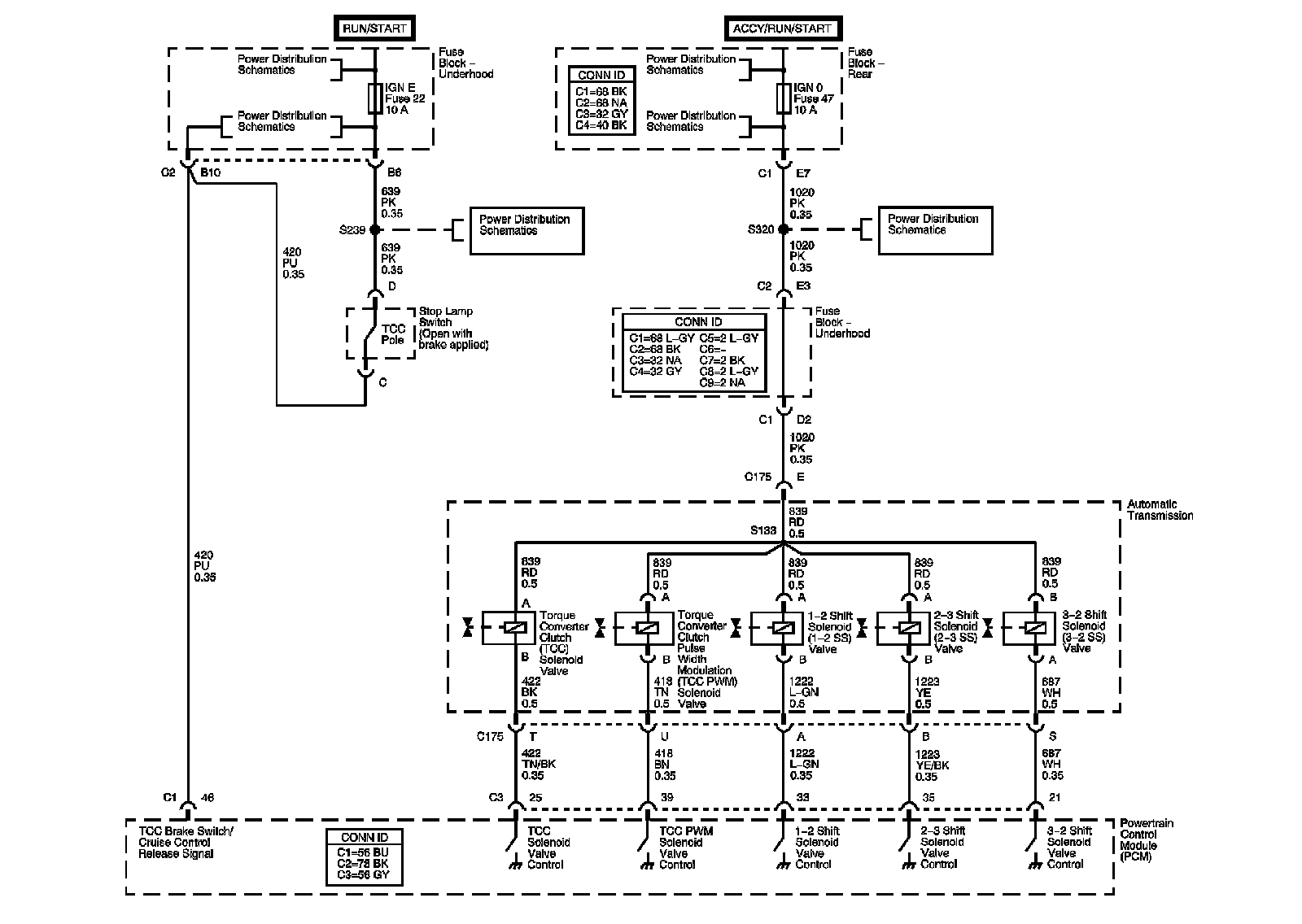

Automatic Transmission Controls Diagrams (Part 1):

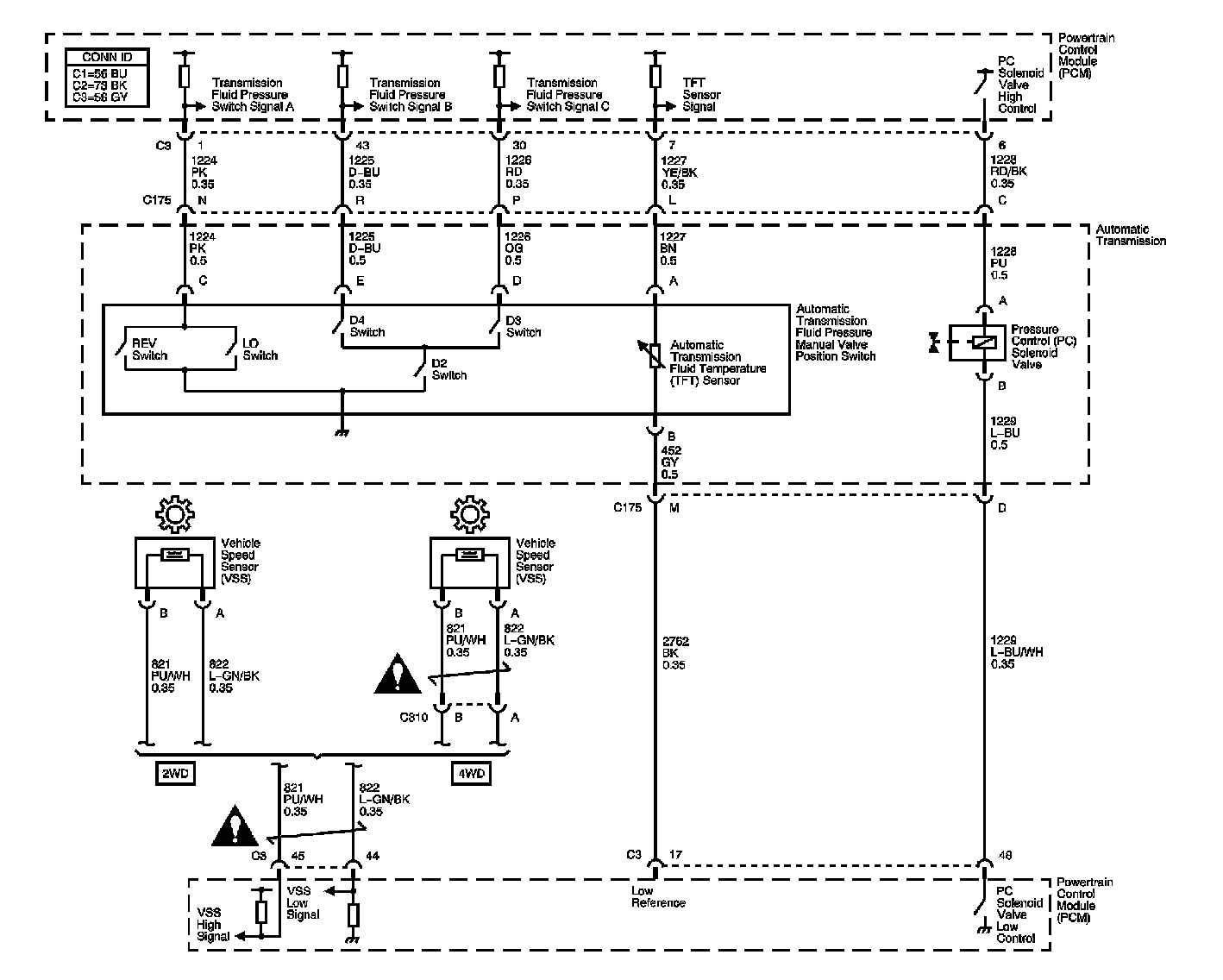

Automatic Transmission Controls Diagrams (Part 2):

Automatic Transmission Controls Diagrams (Part 3):

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
