Home >> Isuzu >> 2006 >> Ascender 2WD L6-4.2L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Data List >> Powertrain Control Module (PCM)

Powertrain Control Module (PCM)

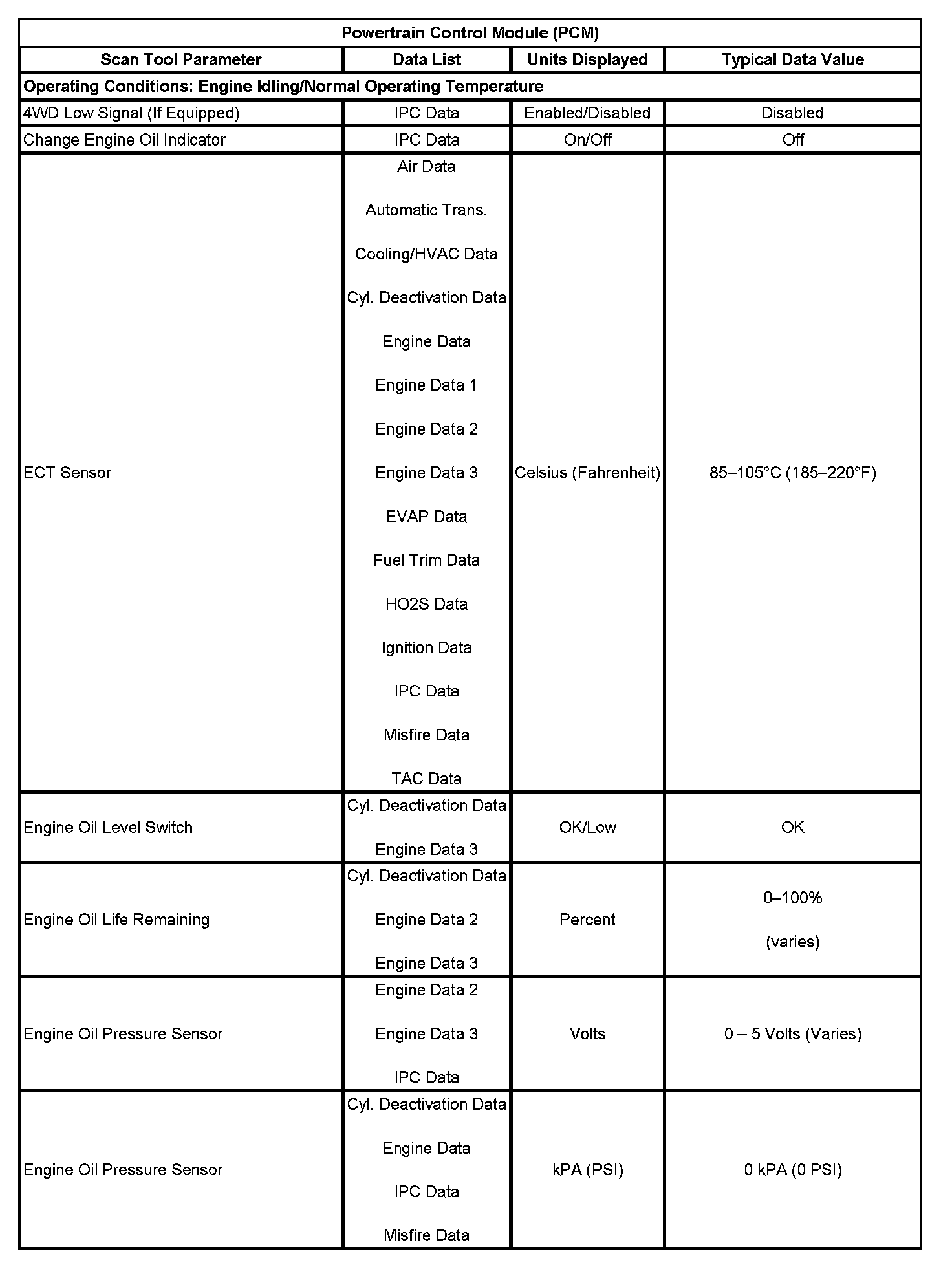

Powertrain Control Module (PCM) Part 1:

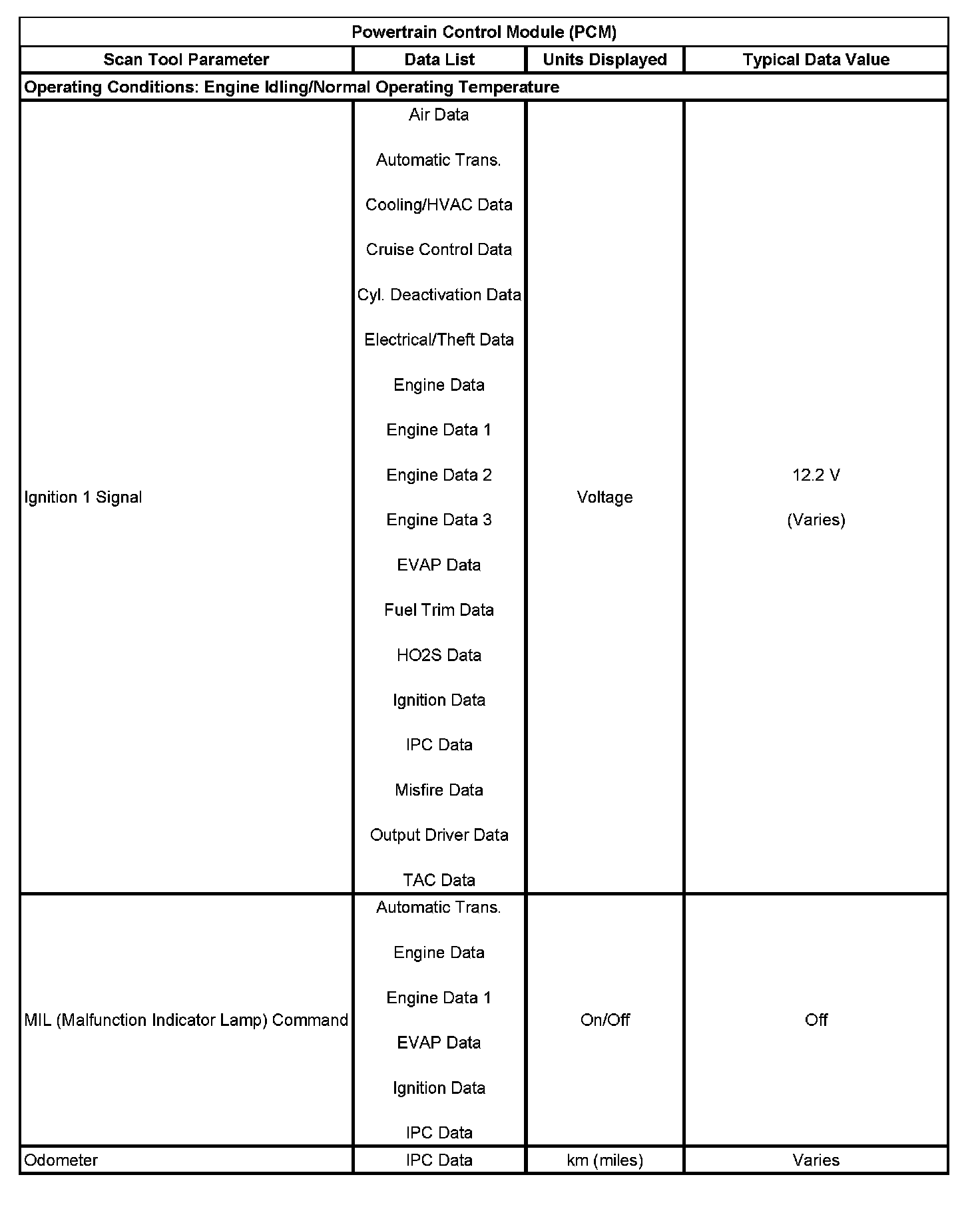

Powertrain Control Module (PCM) Part 2:

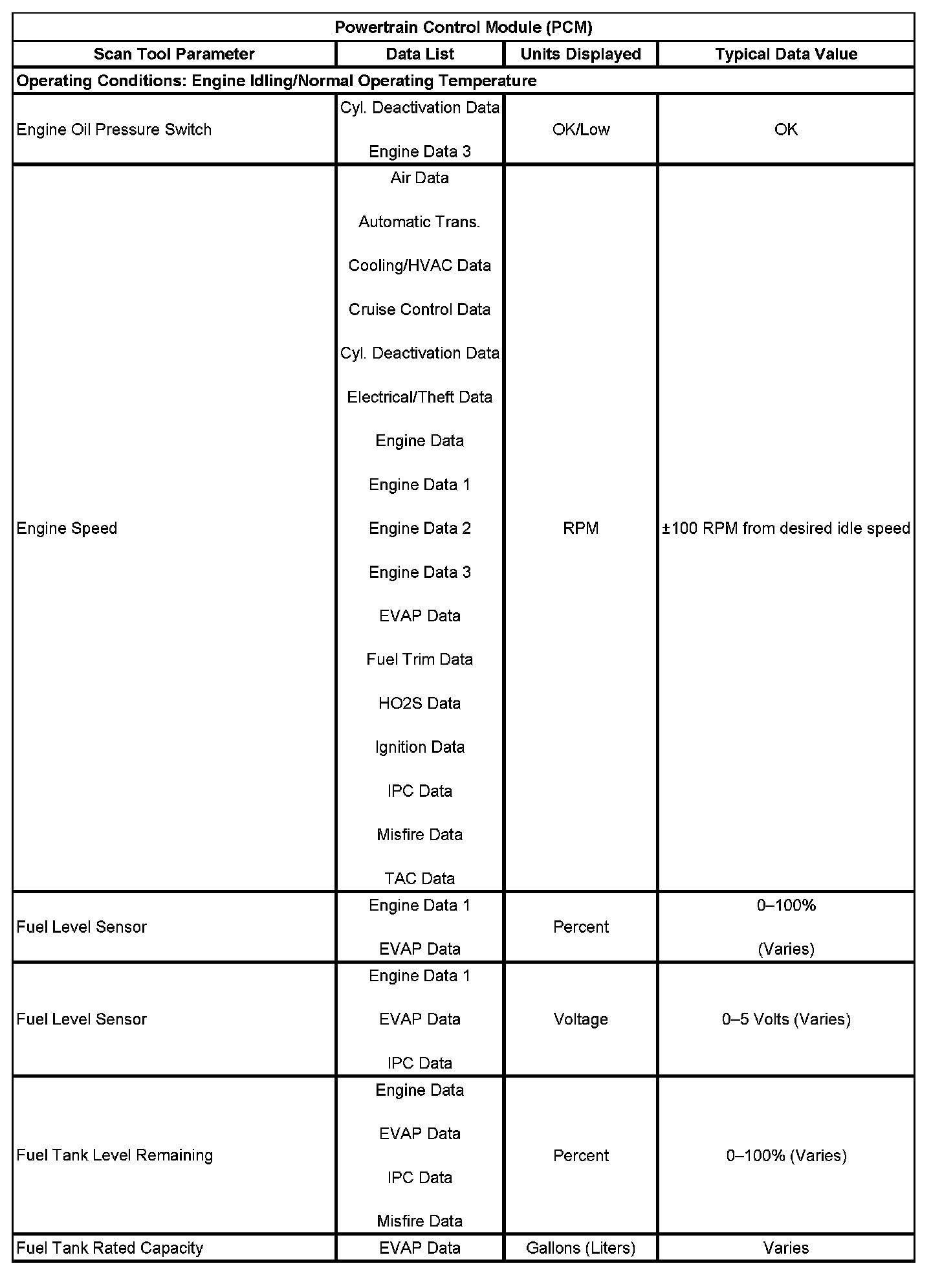

Powertrain Control Module (PCM) Part 3:



Powertrain Control Module (PCM) Part 4:
