Engine Lift Bracket Installation



Engine Lift Bracket Installation

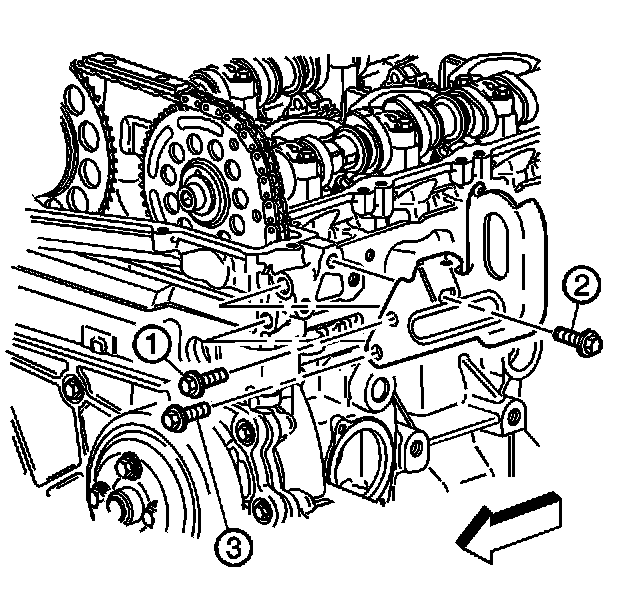

1. Install the engine lift bracket.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the engine lift bracket bolts in sequence.

Tighten the engine lift bracket bolts in sequence to 50 N.m (37 lb ft)
