No Malfunction Indicator Lamp (MIL): Notes

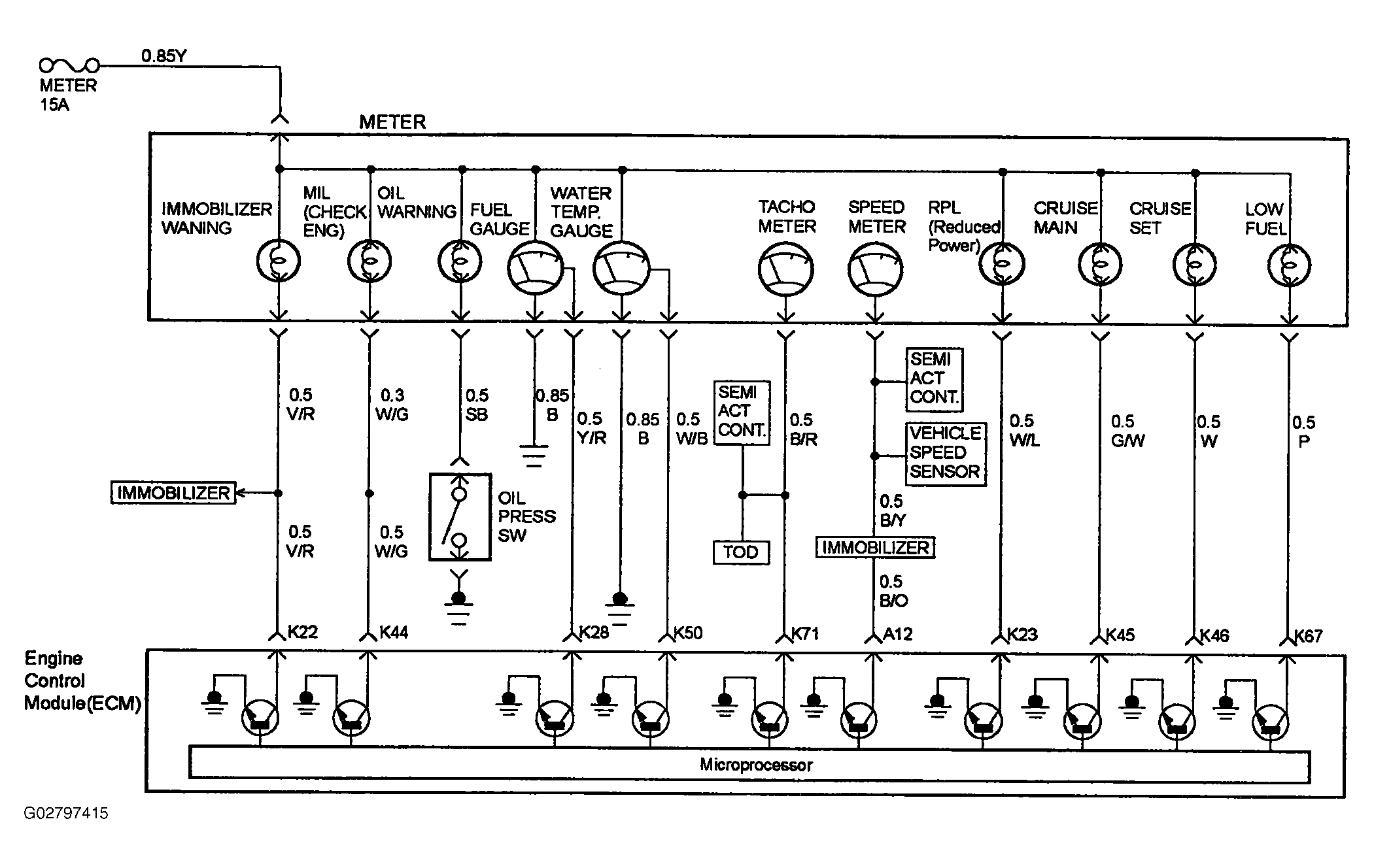

Fig 1: Identifying No Malfunction Indicator Lamp (MIL) Diagram

G02797415

Courtesy of ISUZU MOTOR CO.
