Home >> Isuzu >> 2004 >> Axiom 4WD V6-3.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Dash Fuse Box

Dash Fuse Box

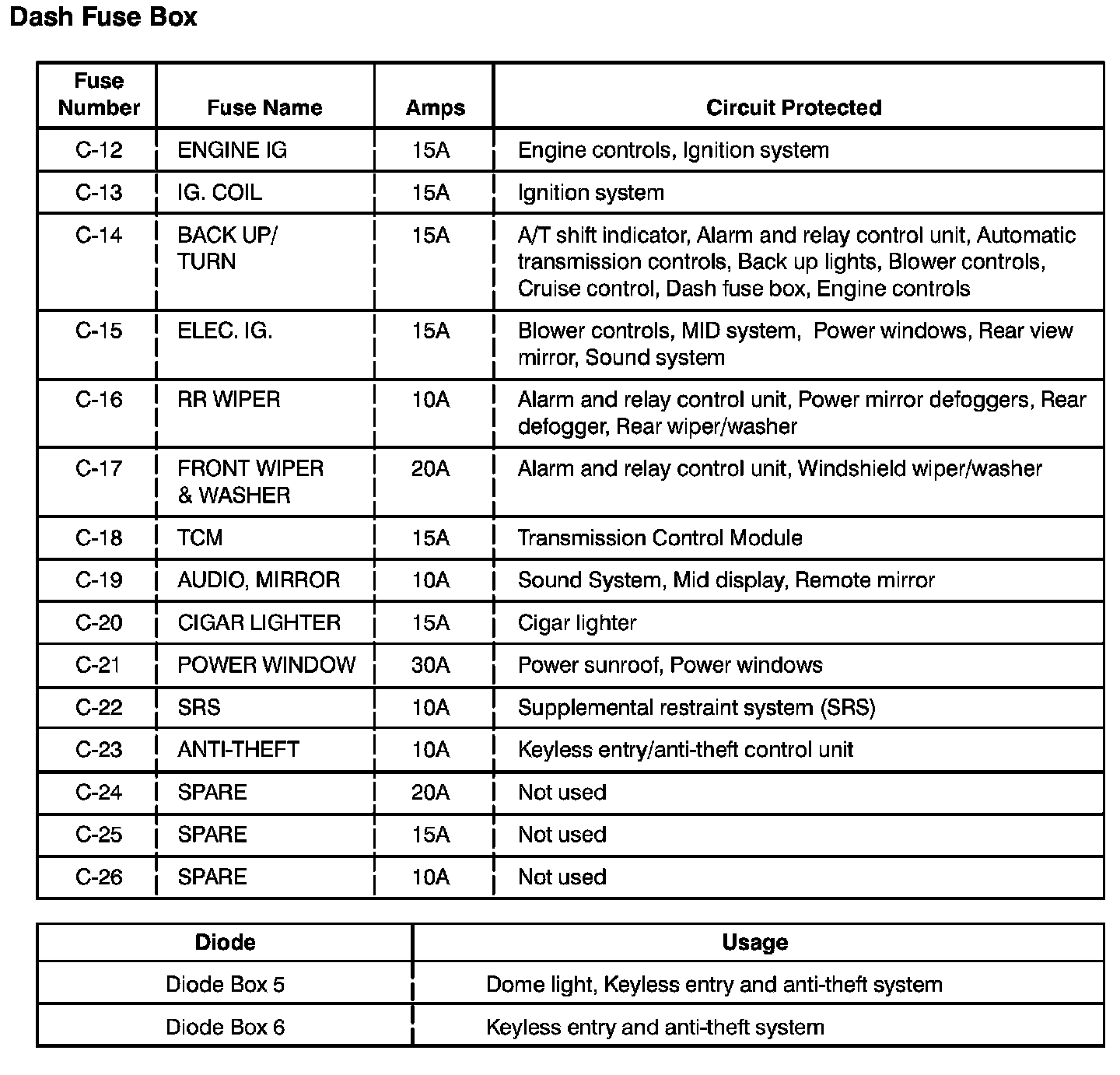

Dash Fuse Box (Part 1 Of 2):

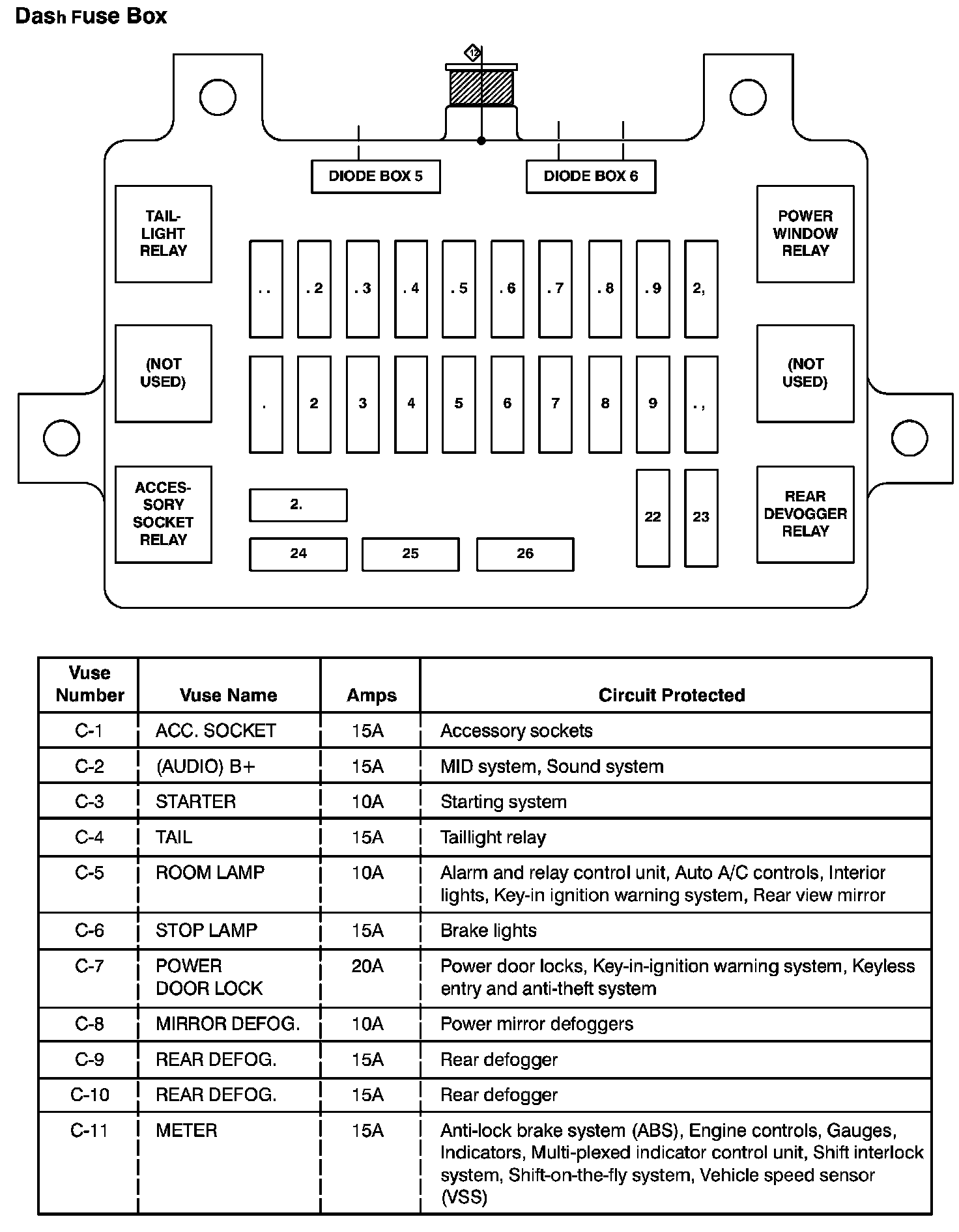

Dash Fuse Box (Part 2 Of 2):
