Differential Assembly: Application and ID

Rear Axle Identification

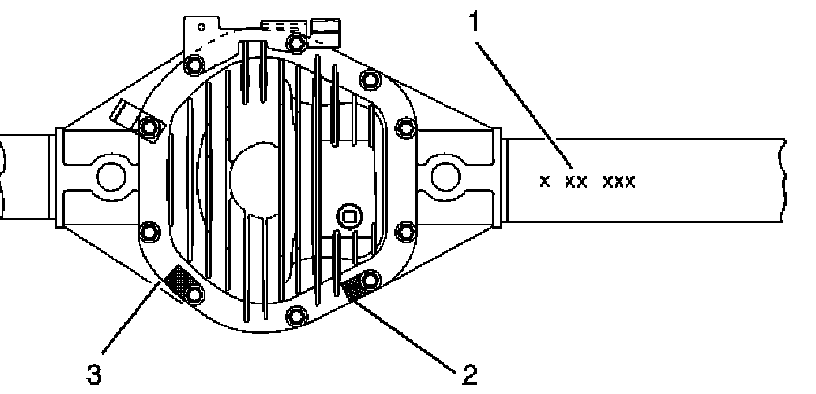

The Bill of Material and build date information (1) is stamped on the right axle tube on the rearward side.
The axle ratio is identified by a tag (3) which is secured by a cover bolt. If the axle has limited-slip differential, it also will be identified with a tag (2) secured by a cover bolt.
