Home >> Isuzu >> 2003 >> Rodeo 2WD L4-2.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Surges and/or Chuggles

Surges and/or Chuggles

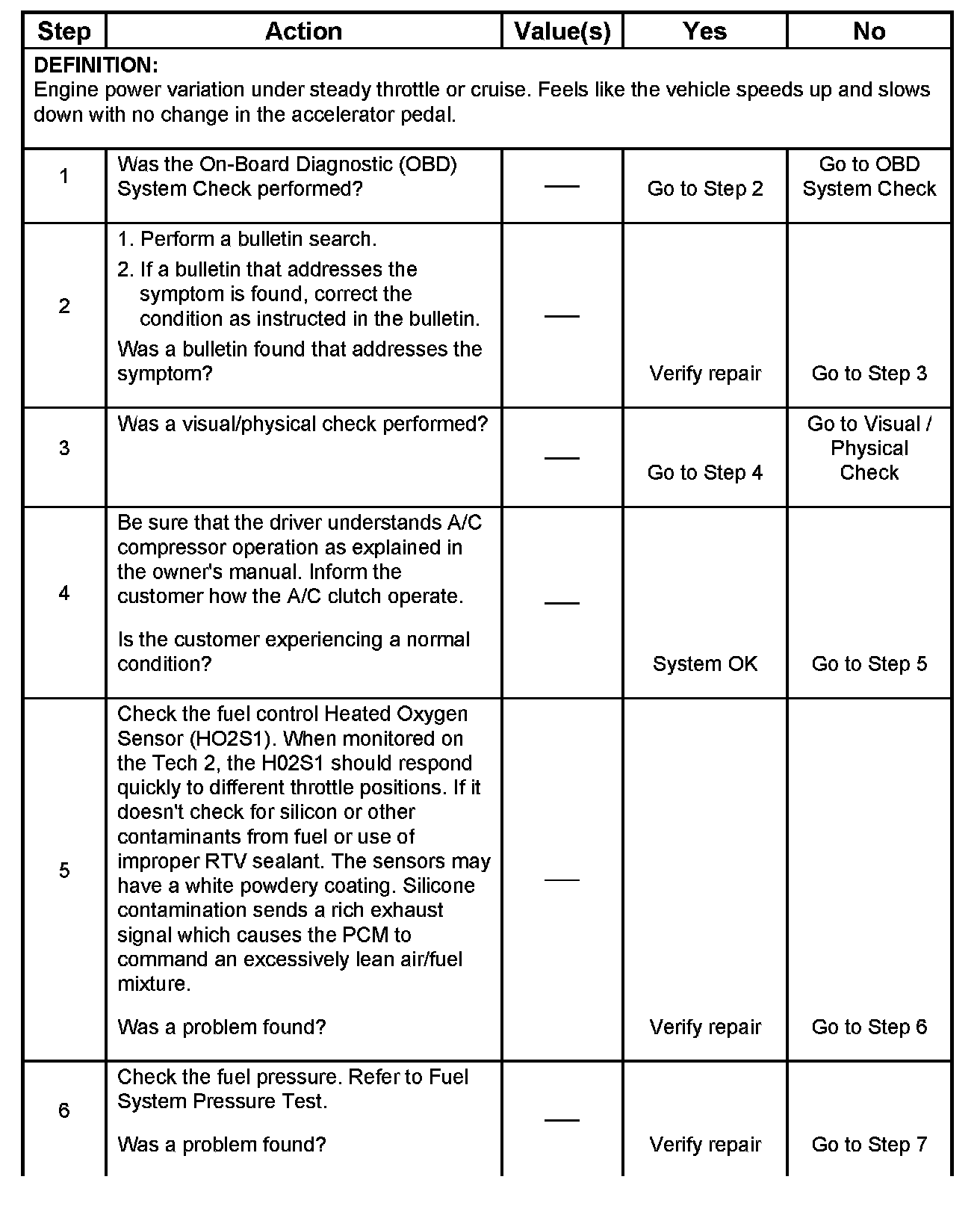

Step 1 - 6:

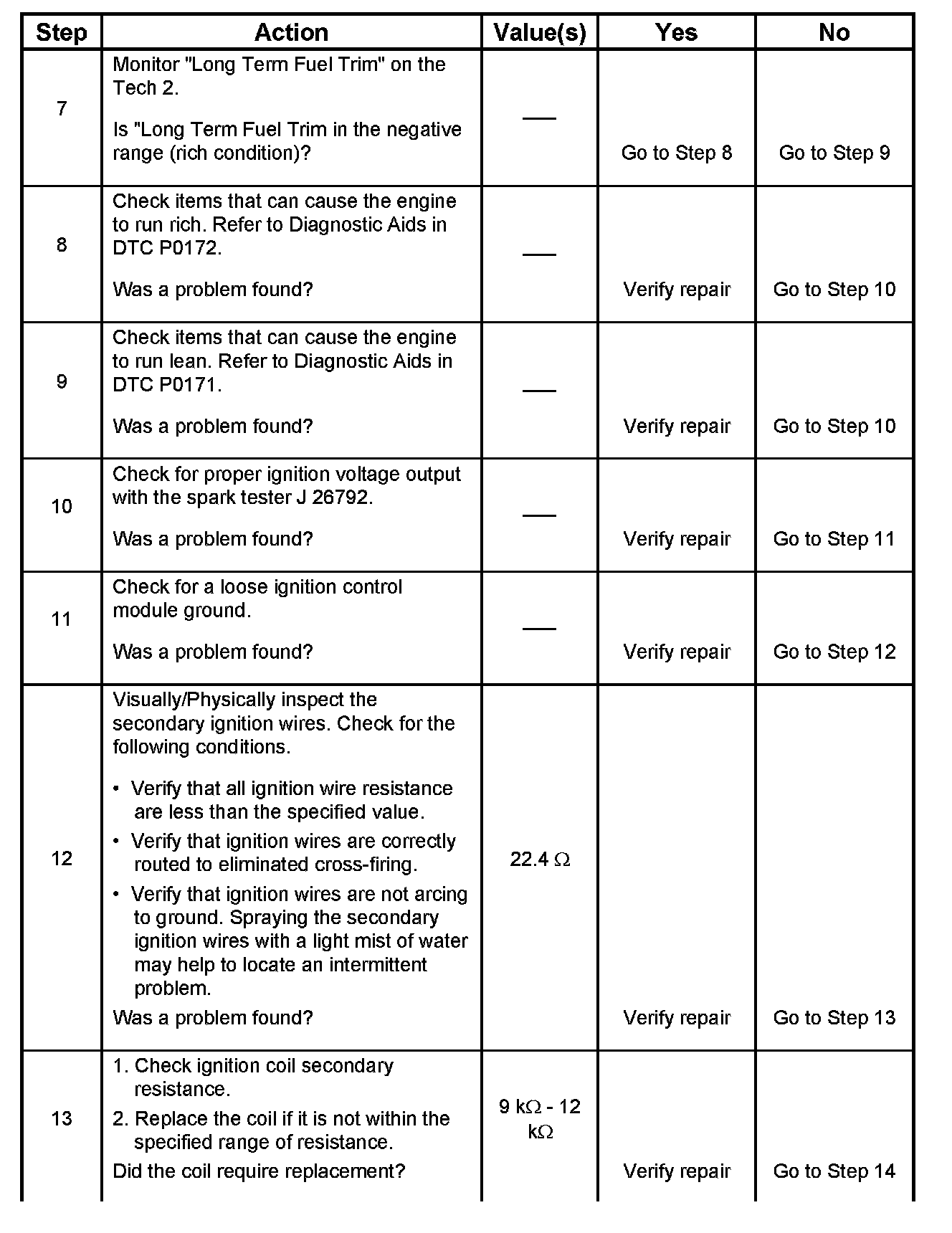

Step 7 - 13:

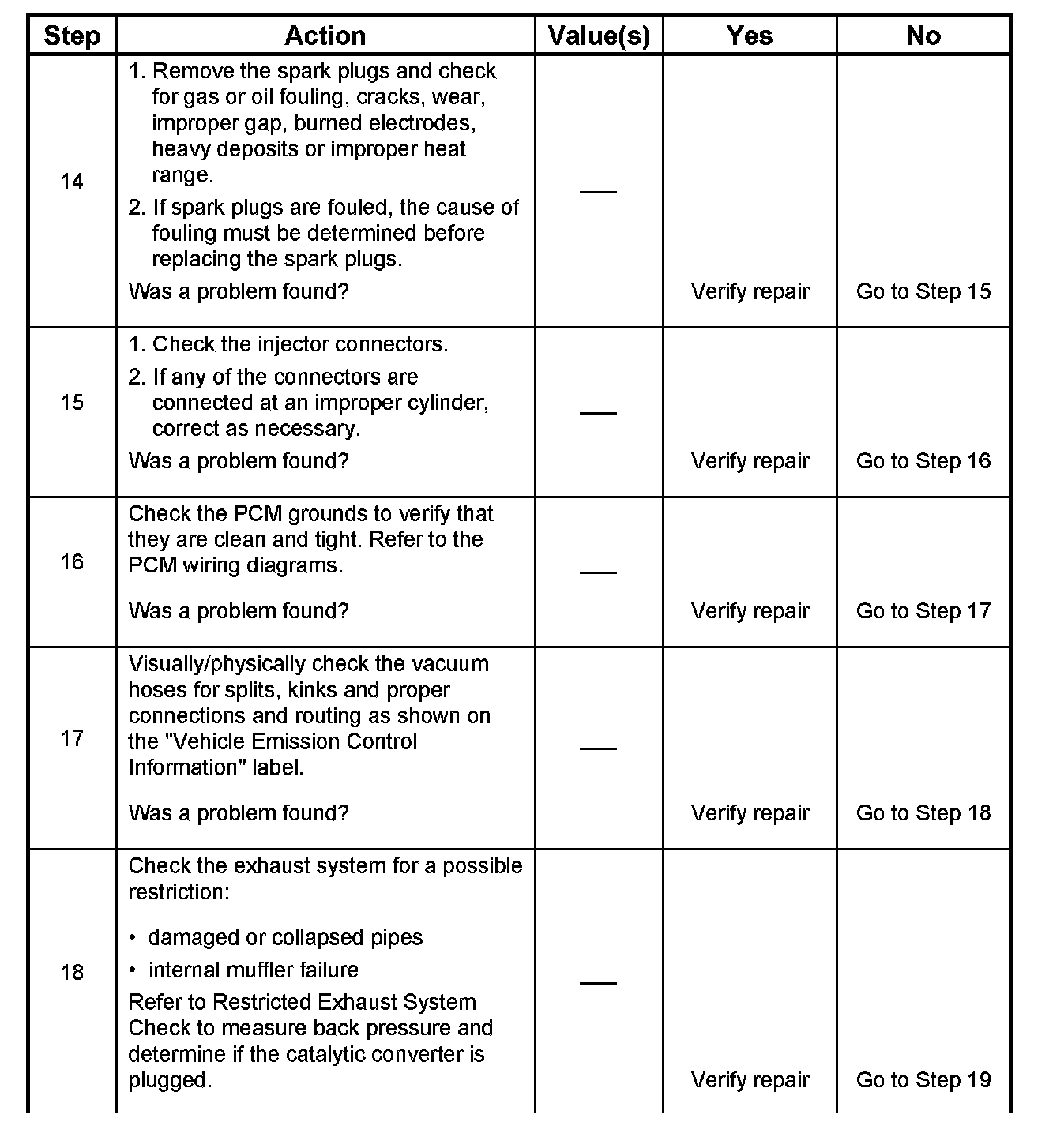

Step 14 - 18:



Step 19:
