Home >> Isuzu >> 2003 >> Axiom Base, RWD >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Engine Lubrication >> General Description

Engine Lubrication: General Description

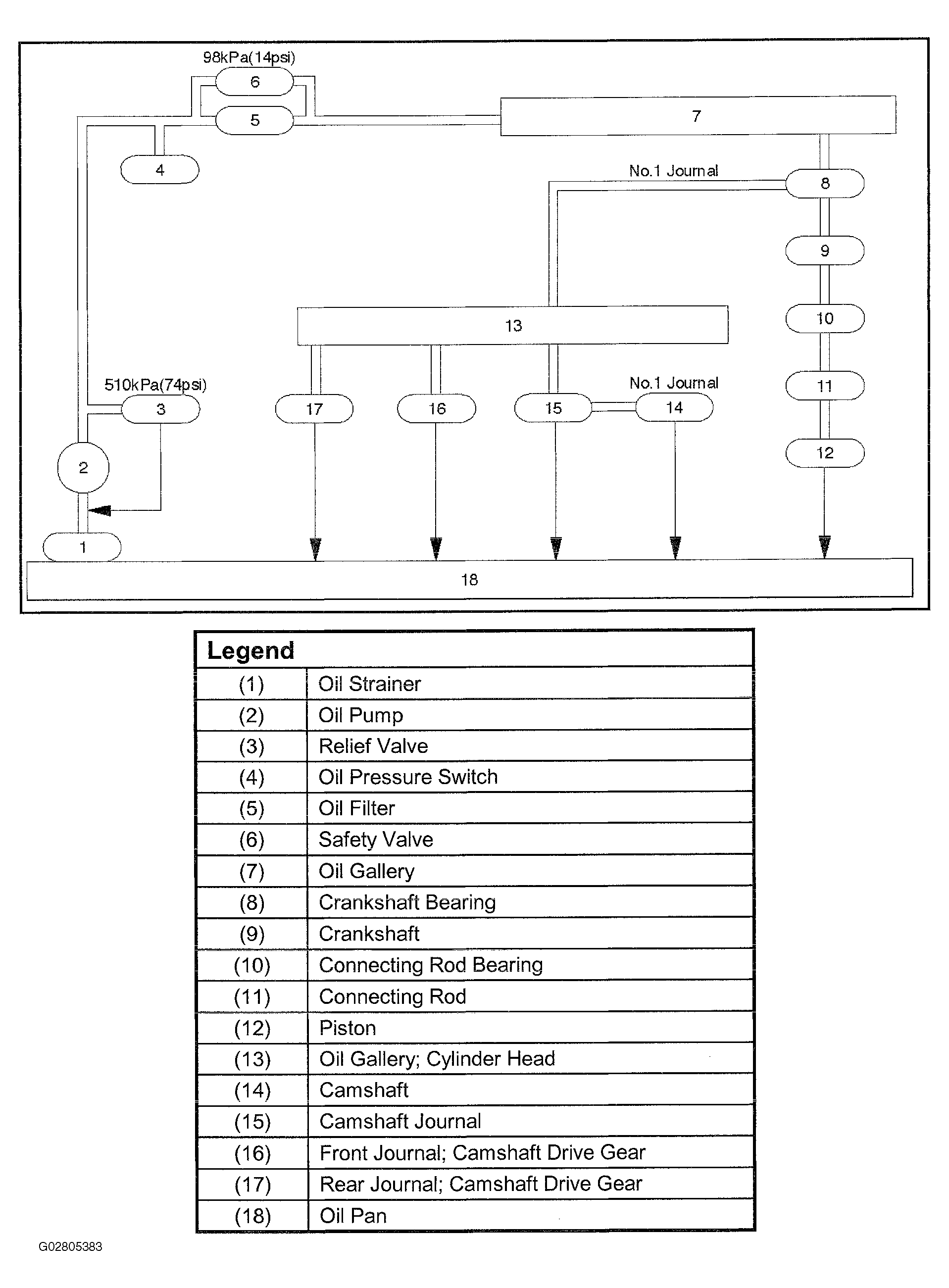

Fig 1: General Description Of Engine Lubrication

G02805383

Courtesy of ISUZU MOTOR CO.
