Home >> Isuzu >> 2003 >> Axiom 2WD V6-3.5L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Motor >> Locations

Power Window Motor: Locations

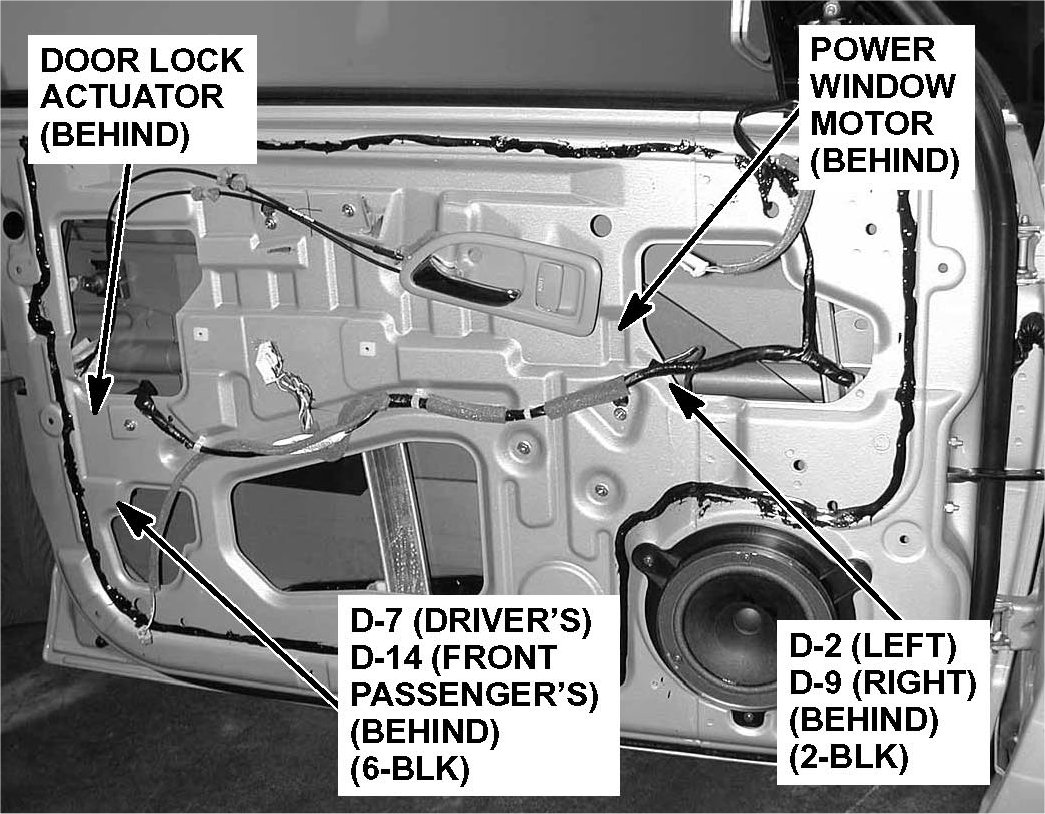

81. Left Front Door (Right Similar):

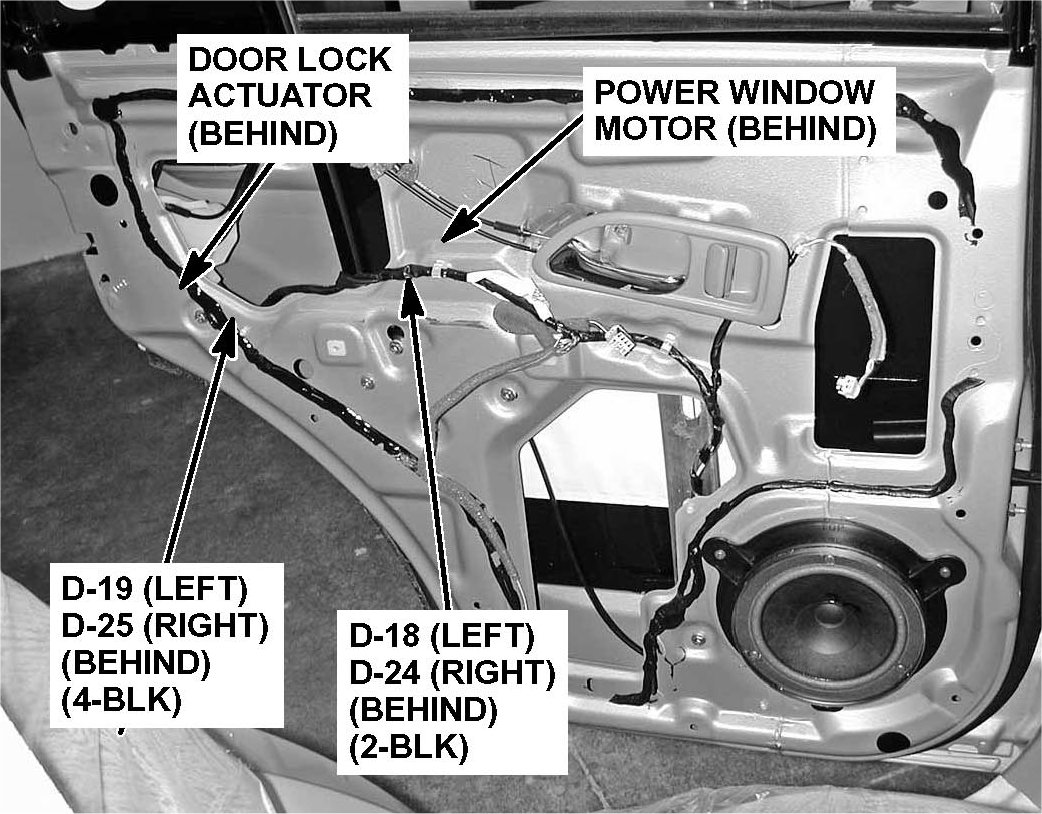

83. Left Rear Door (Right Similar):
