Isuzu
>>
2003
>>
Axiom 2WD V6-3.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Component Locations
Component Locations

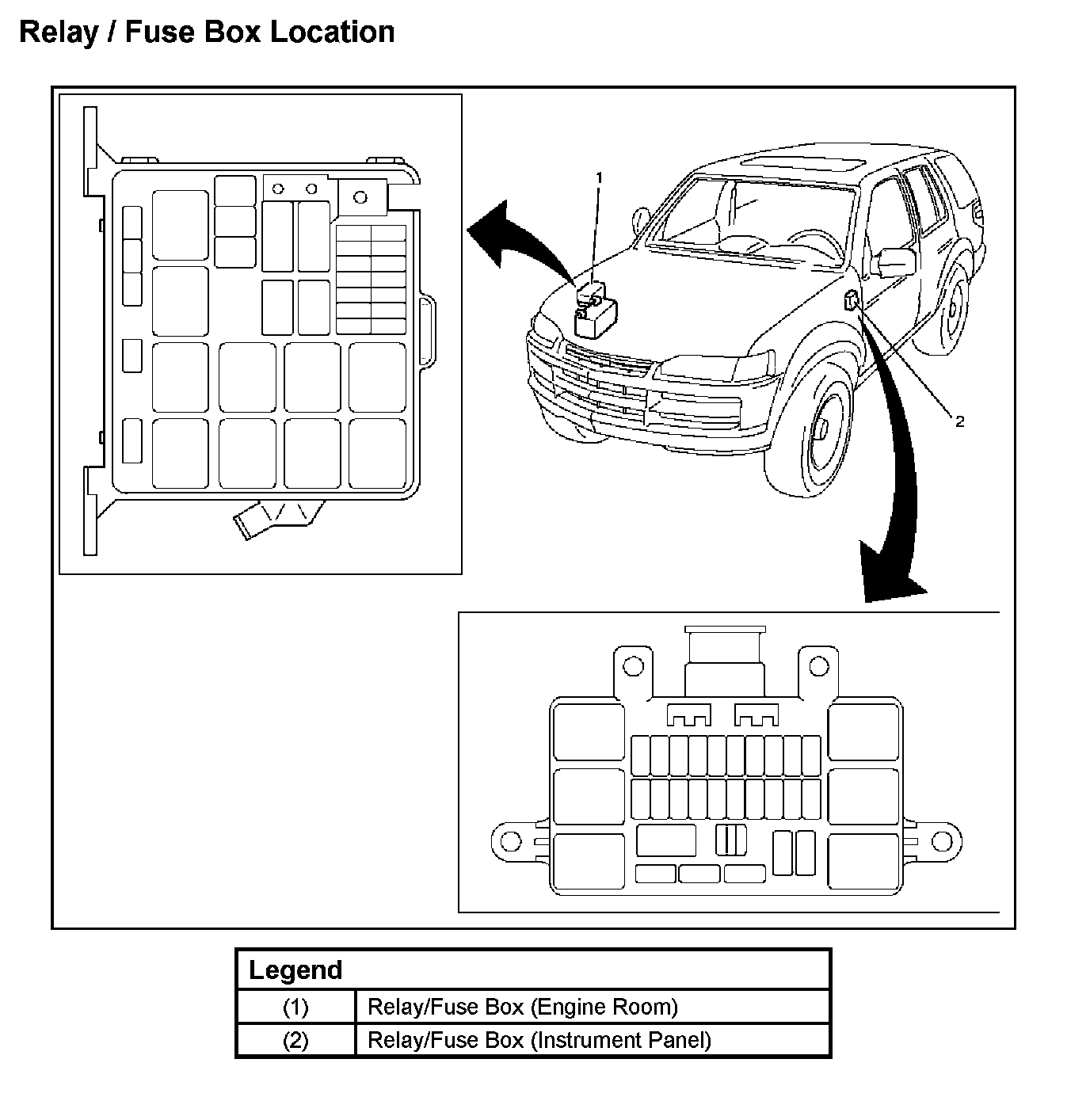

Relay/Fuse Box Location:

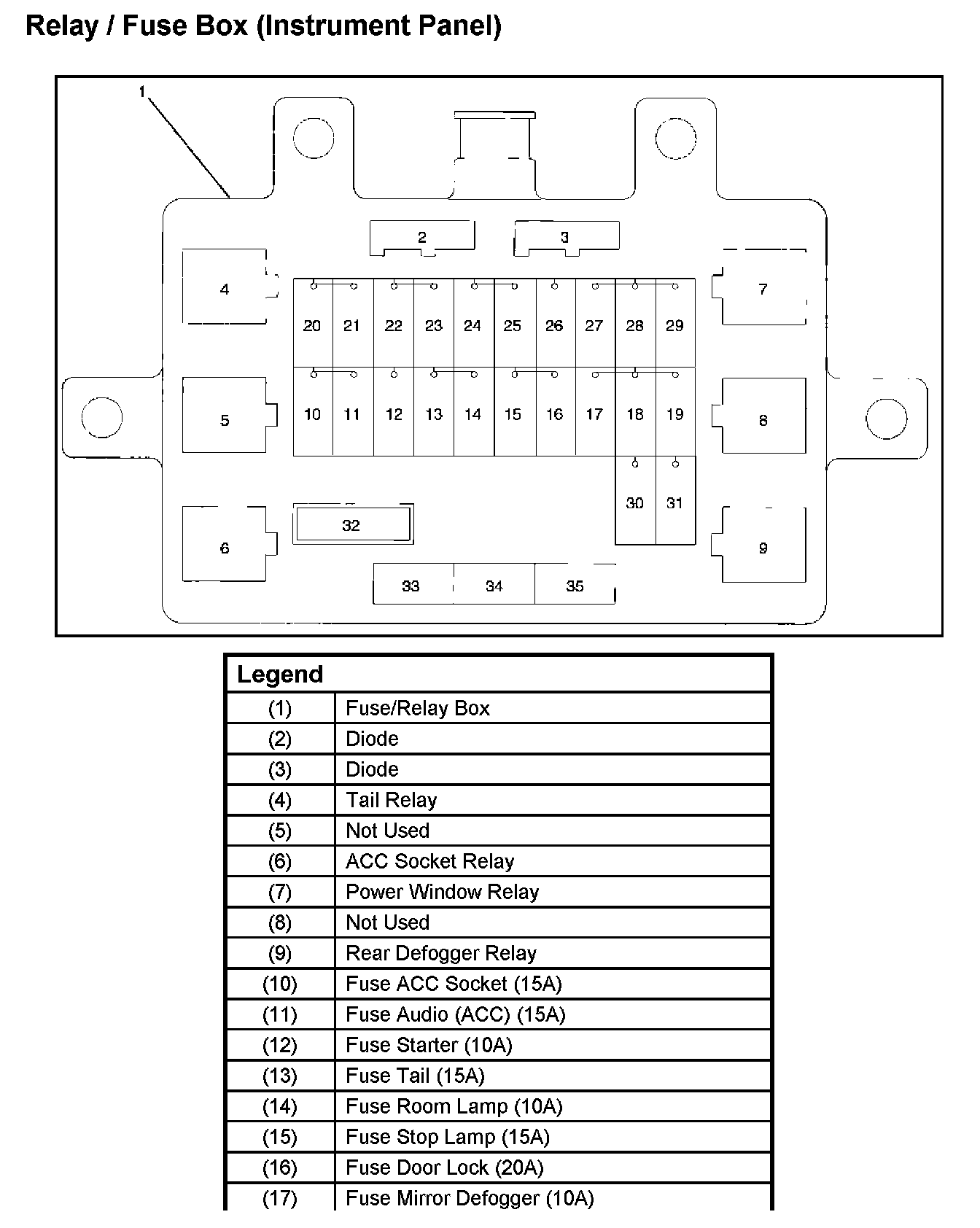

Relay/Fuse Box (Instrument Panel) Part 1:
Relay/Fuse Box (Instrument Panel) Part 2:

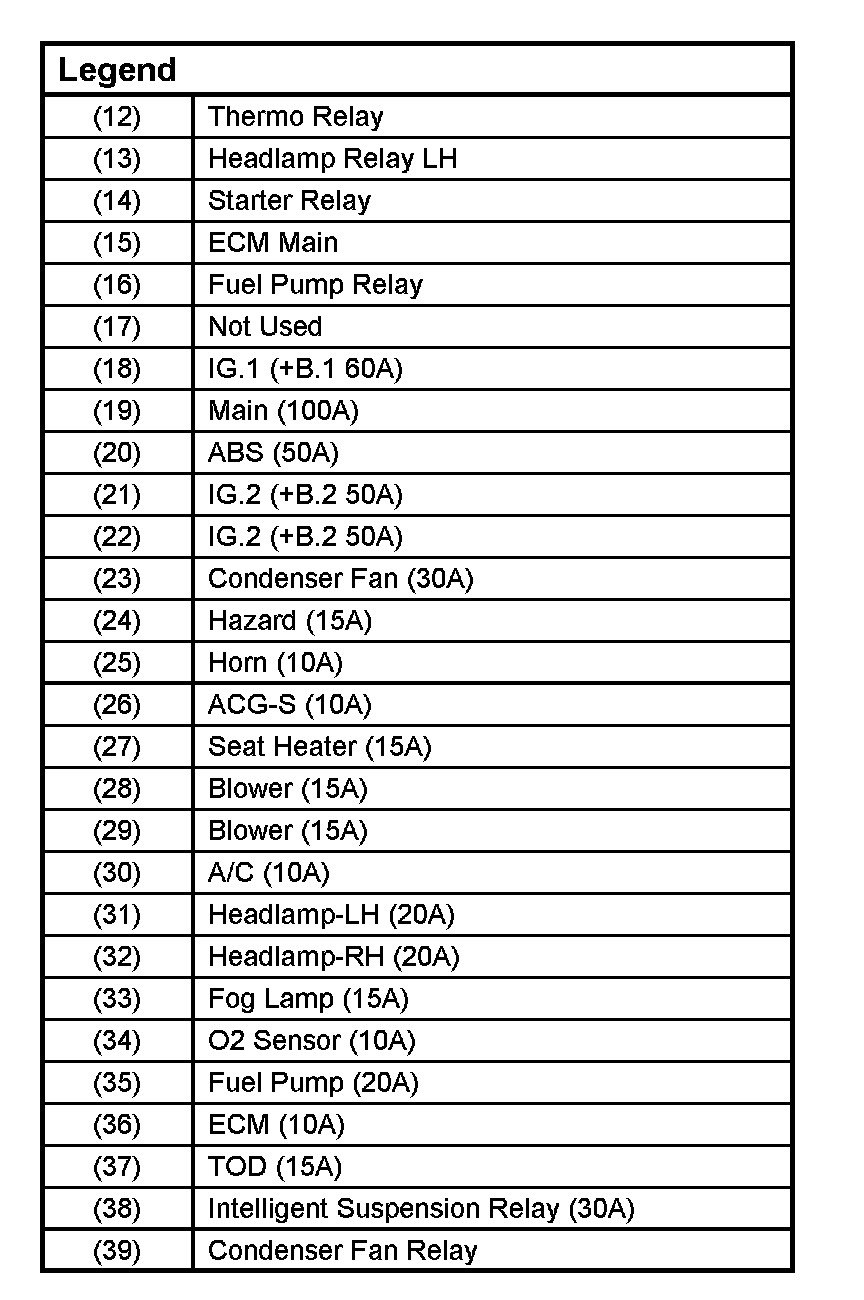

Relay/Fuse Box (Engine Room) Part 1:
Relay/Fuse Box (Engine Room) Part 2:
