Home >> Isuzu >> 2003 >> Axiom 2WD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Upper Valve Body

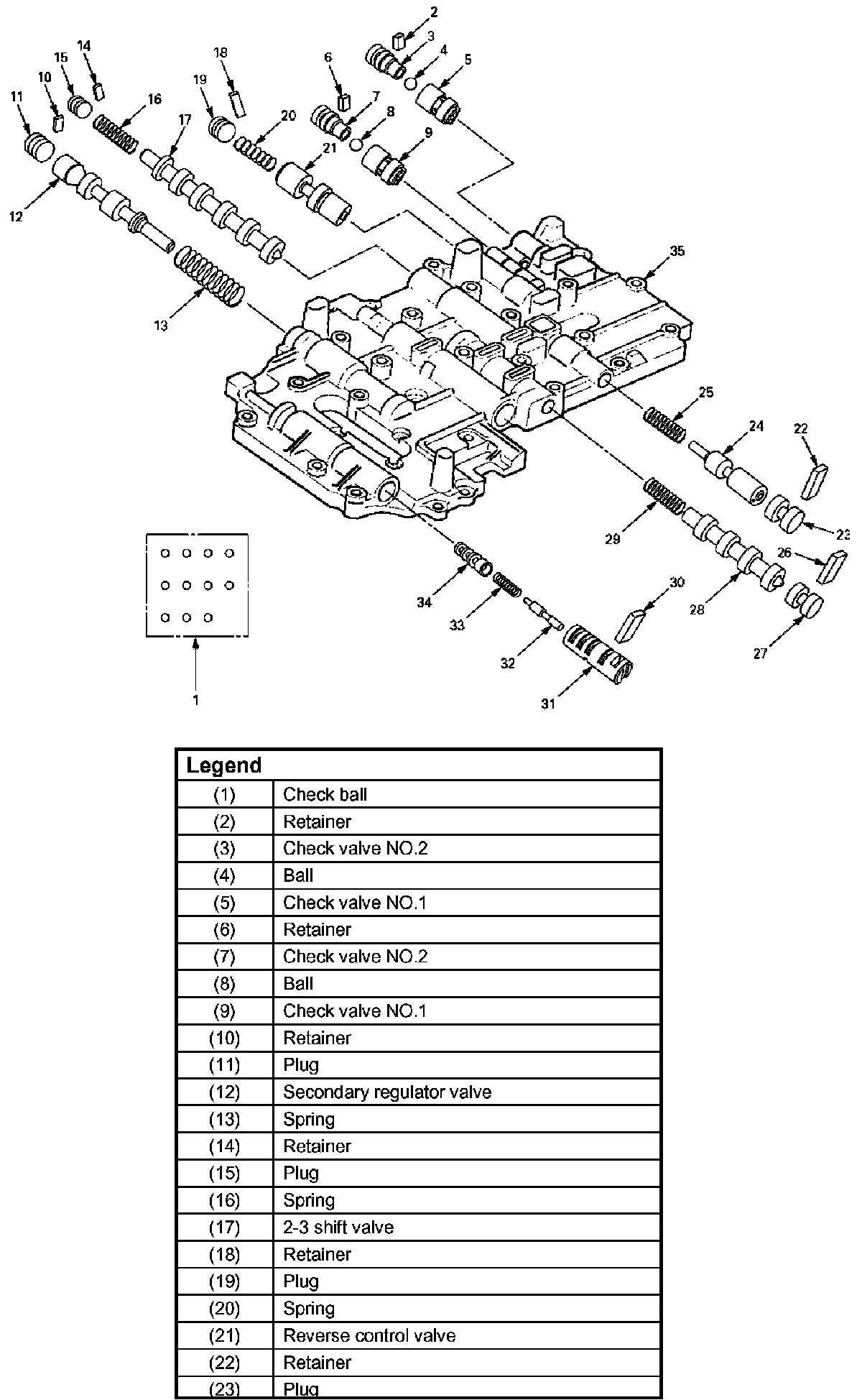

Upper Valve Body

Part 1:




Part 2:





Upper Valve Body
