Transfer Case Controls

Transfer Case Control Component Views

Engine, Lower Right:

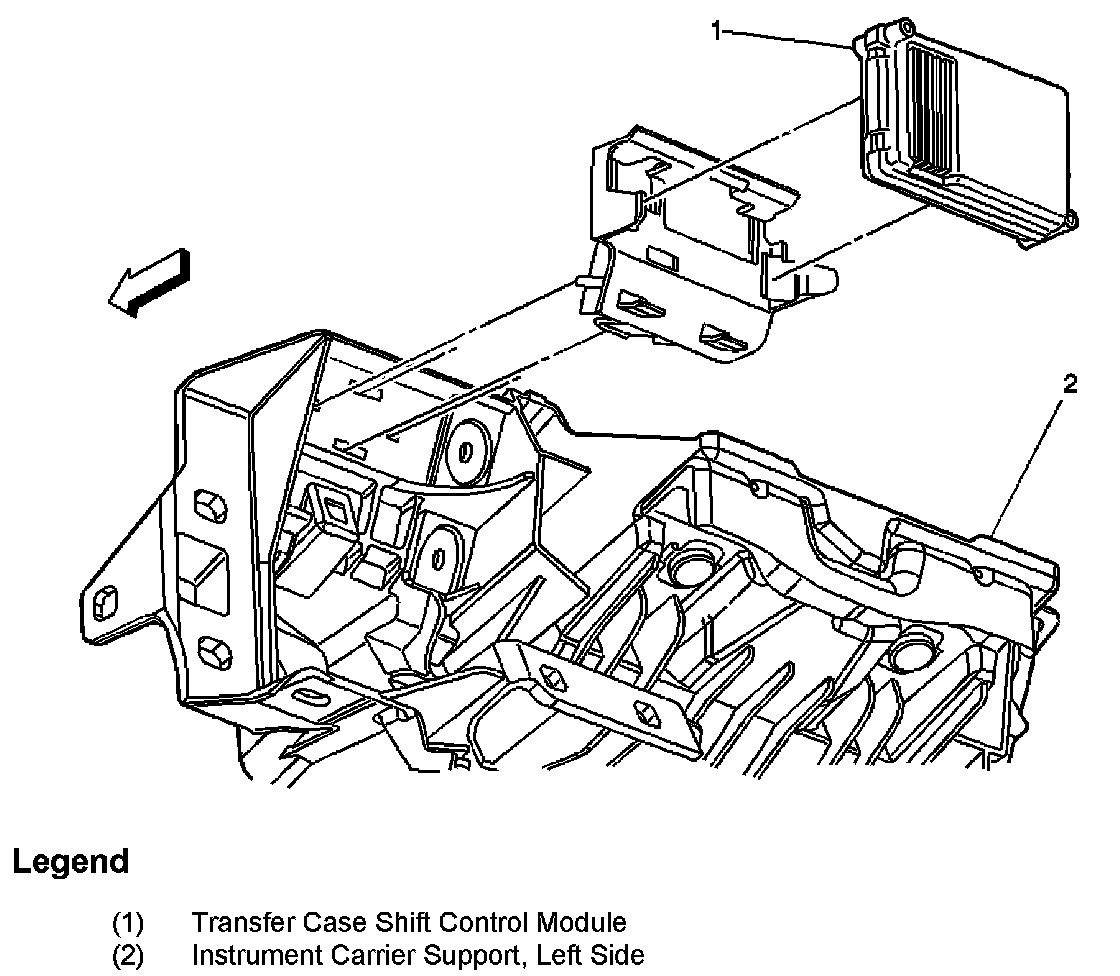

Instrument Carrier Support, Lower Left:

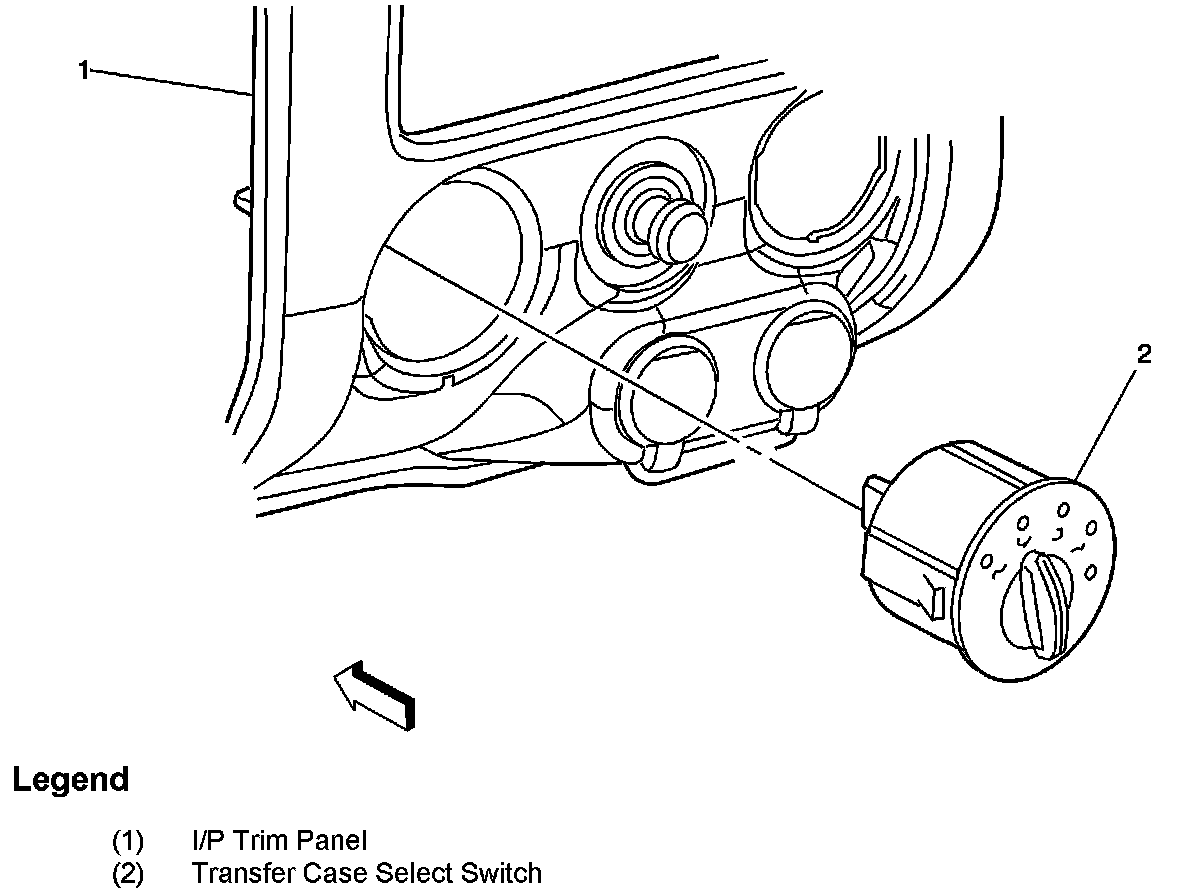

Transfer Case Select Switch:

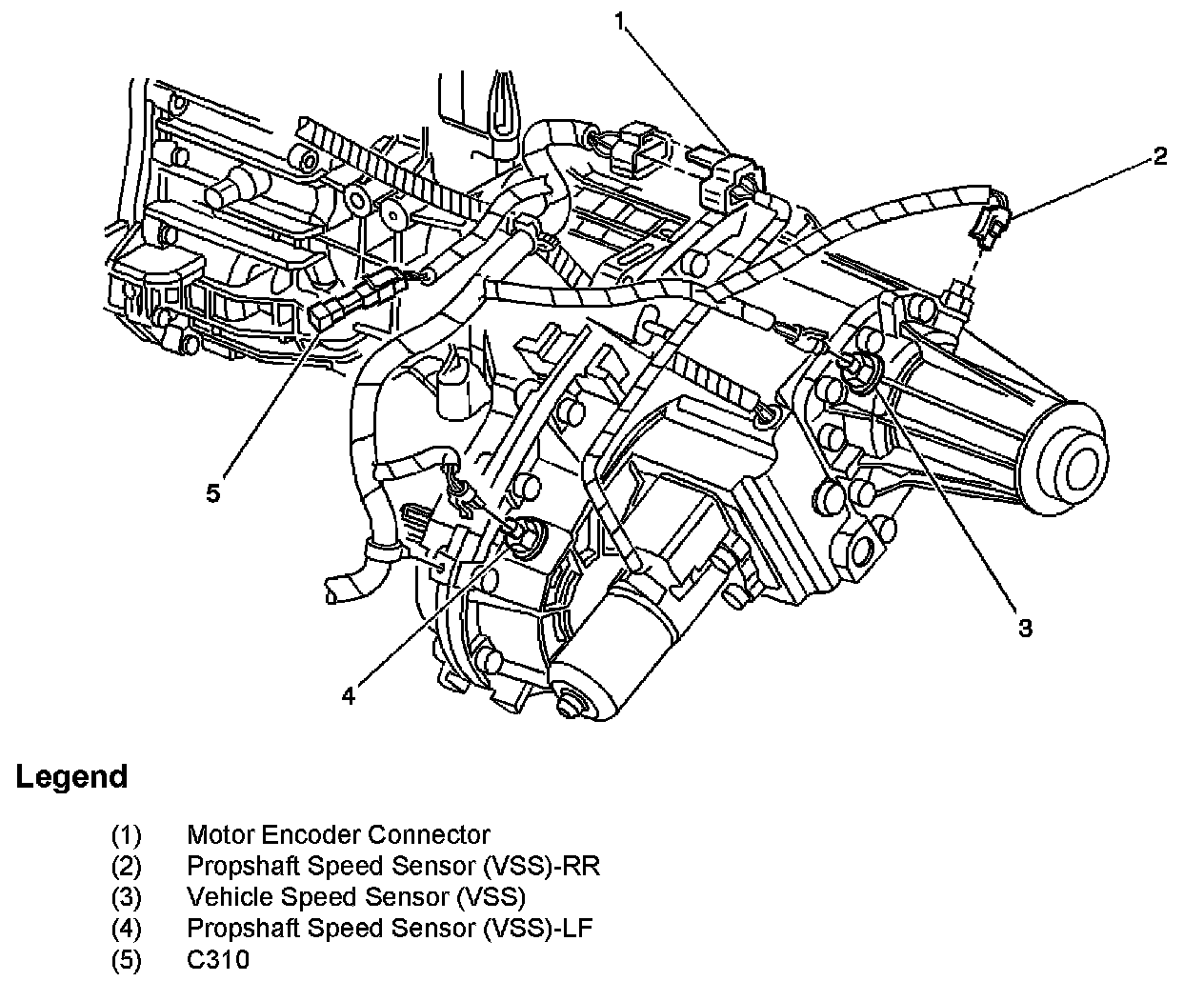

Transfer Case:
