Home >> Isuzu >> 2003 >> Ascender 4WD L6-4.2L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Restraints and Safety Systems >> Air Bag Control Module >> Locations

Air Bag Control Module: Locations

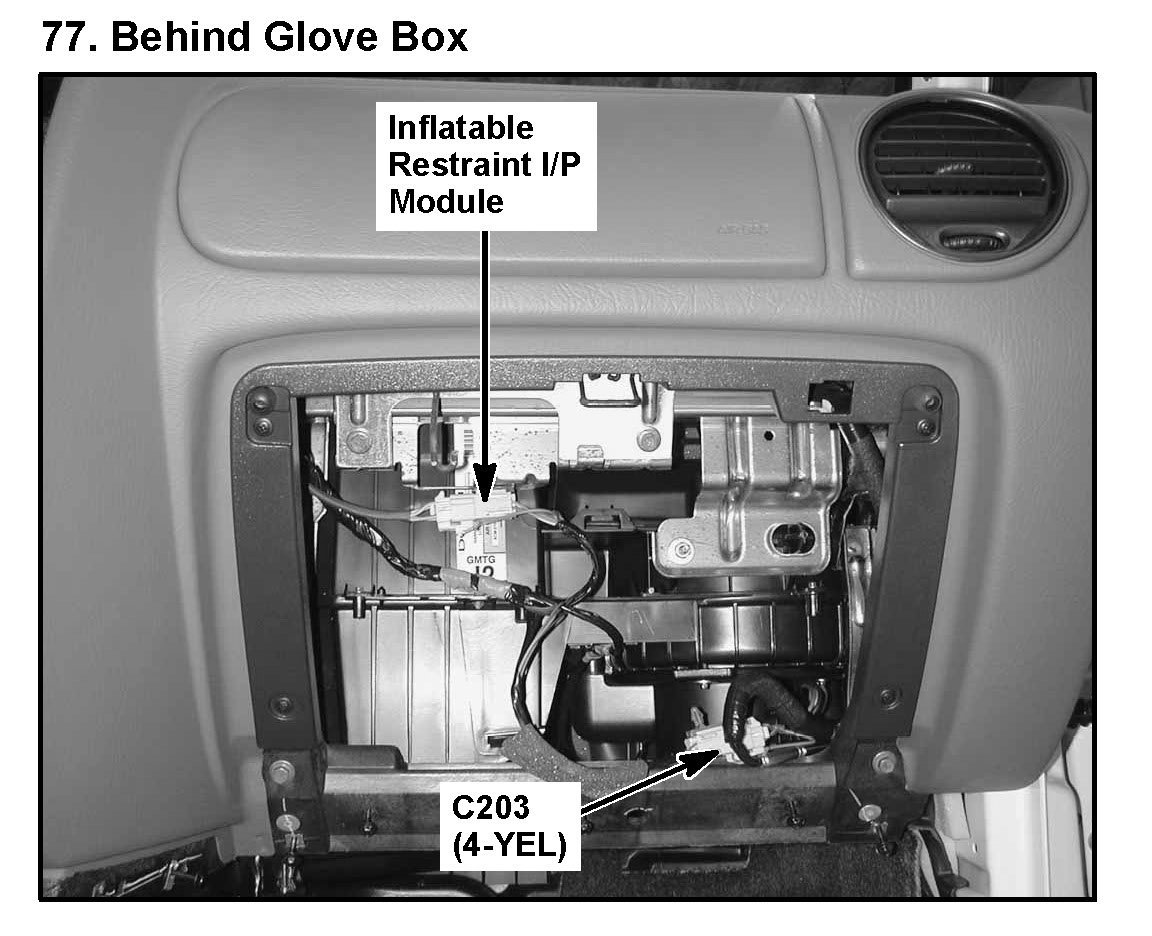

77. Behind Glove Box:

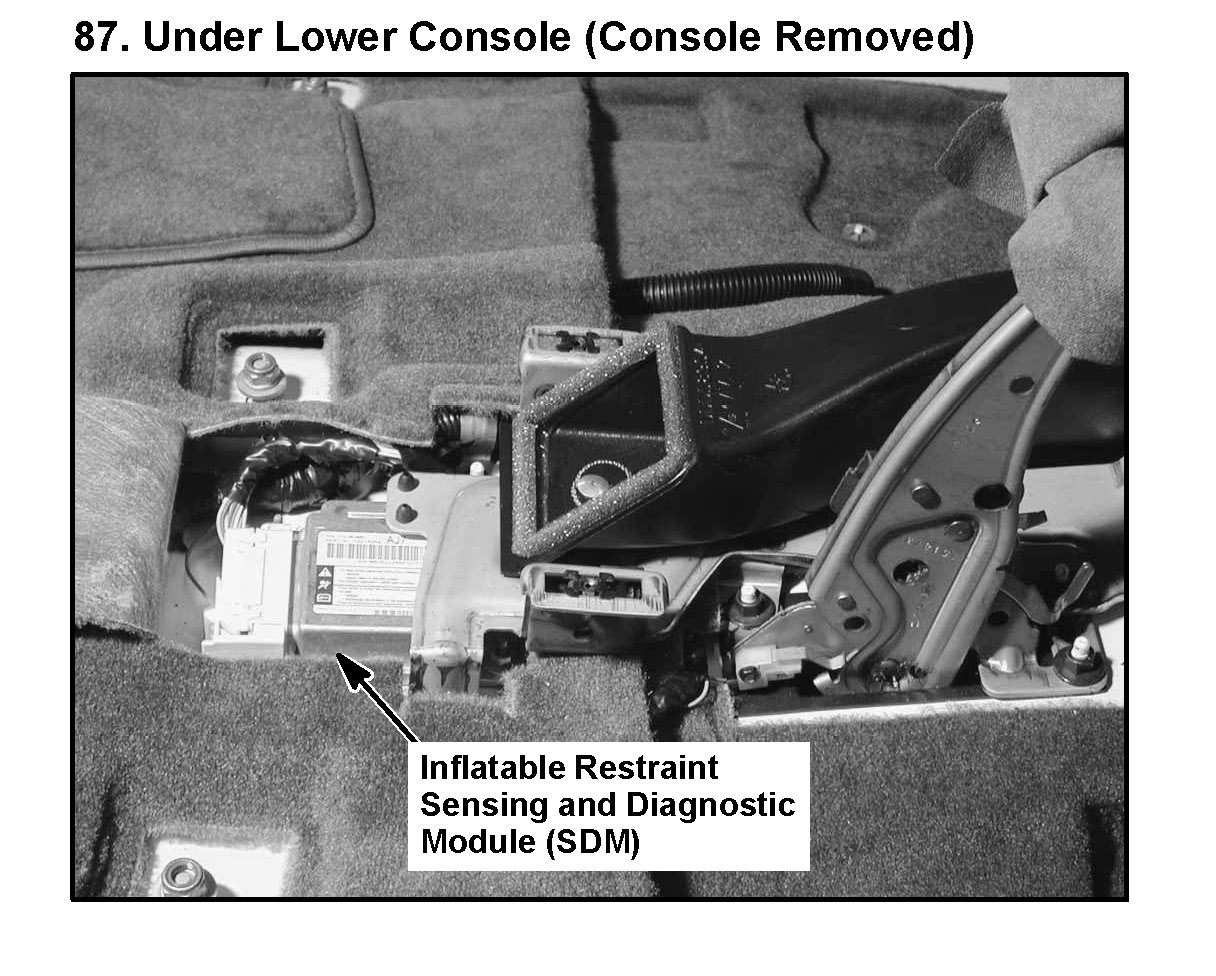

87. Under Lower Console (Console Reamoved):

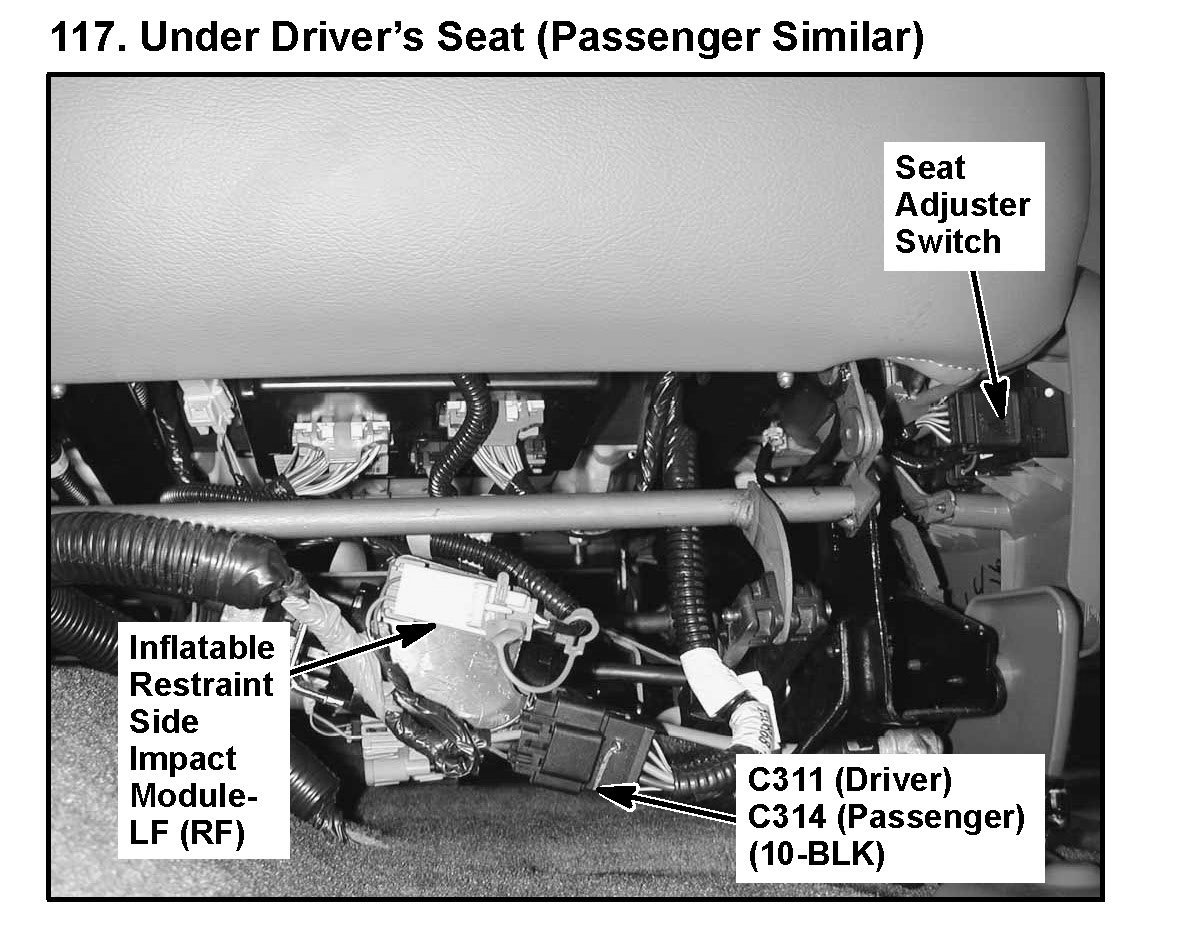

117. Under Driver's Seat (Passenger Similar):
