Home >> Isuzu >> 2003 >> Ascender 2WD L6-4.2L >> Repair and Diagnosis >> Wiper and Washer Systems >> Washer Fluid Level Switch >> Locations

Washer Fluid Level Switch: Locations

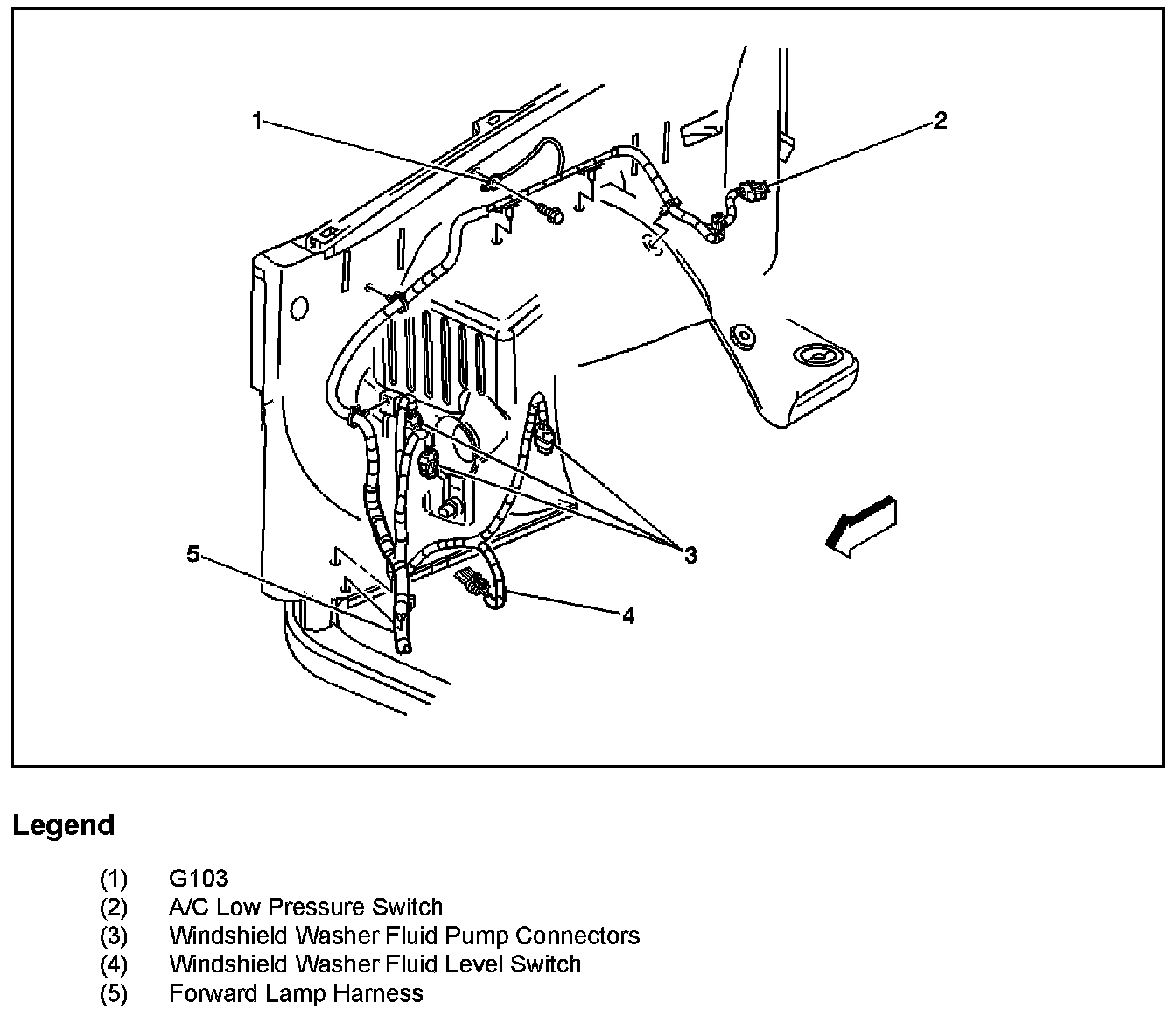

Forward Lamp Harness, Right Side:
