Home >> Isuzu >> 2003 >> Ascender 2WD L6-4.2L >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Charging System Test

Charging System Test

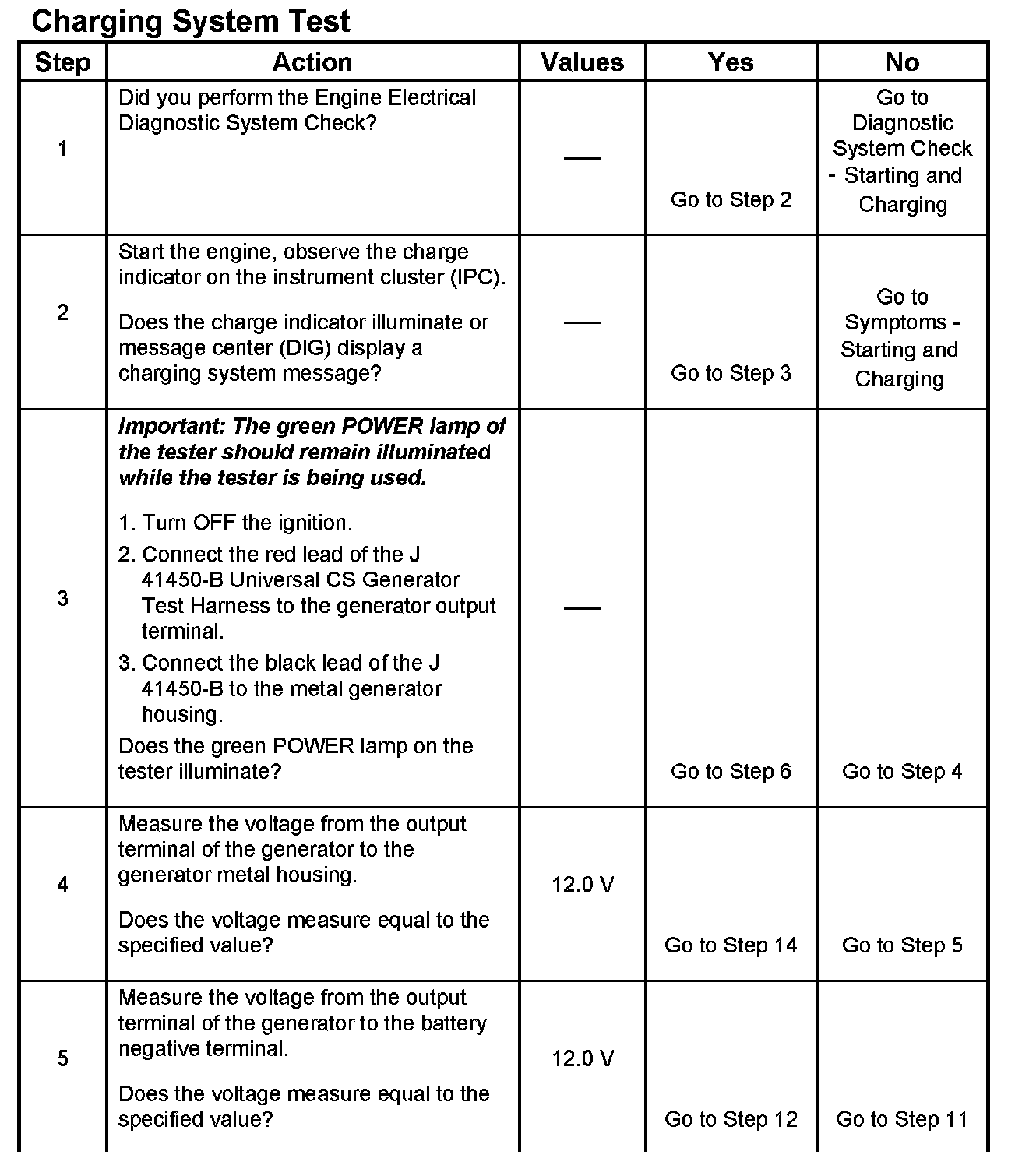

Step 1 - 5:

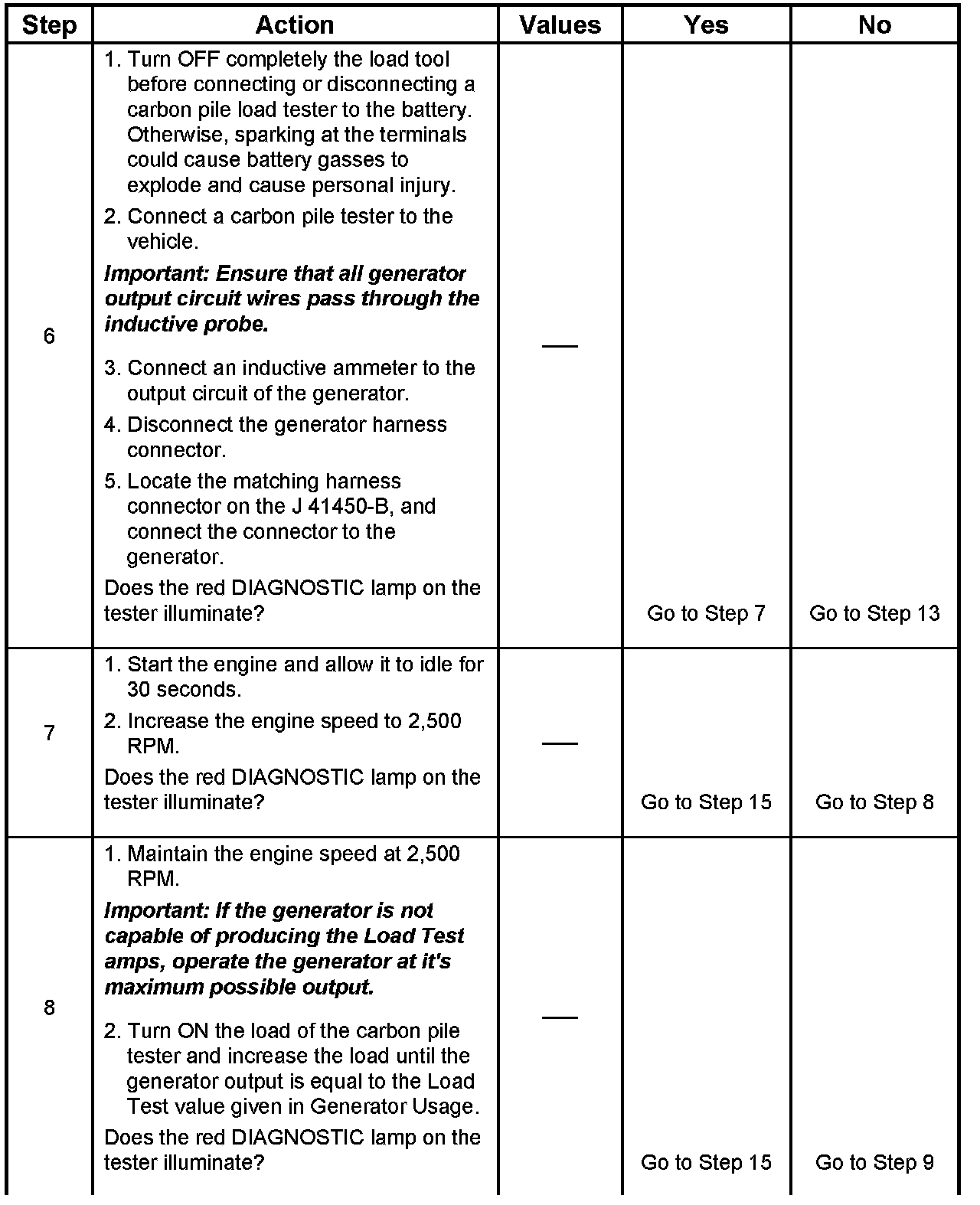

Step 6 - 8:

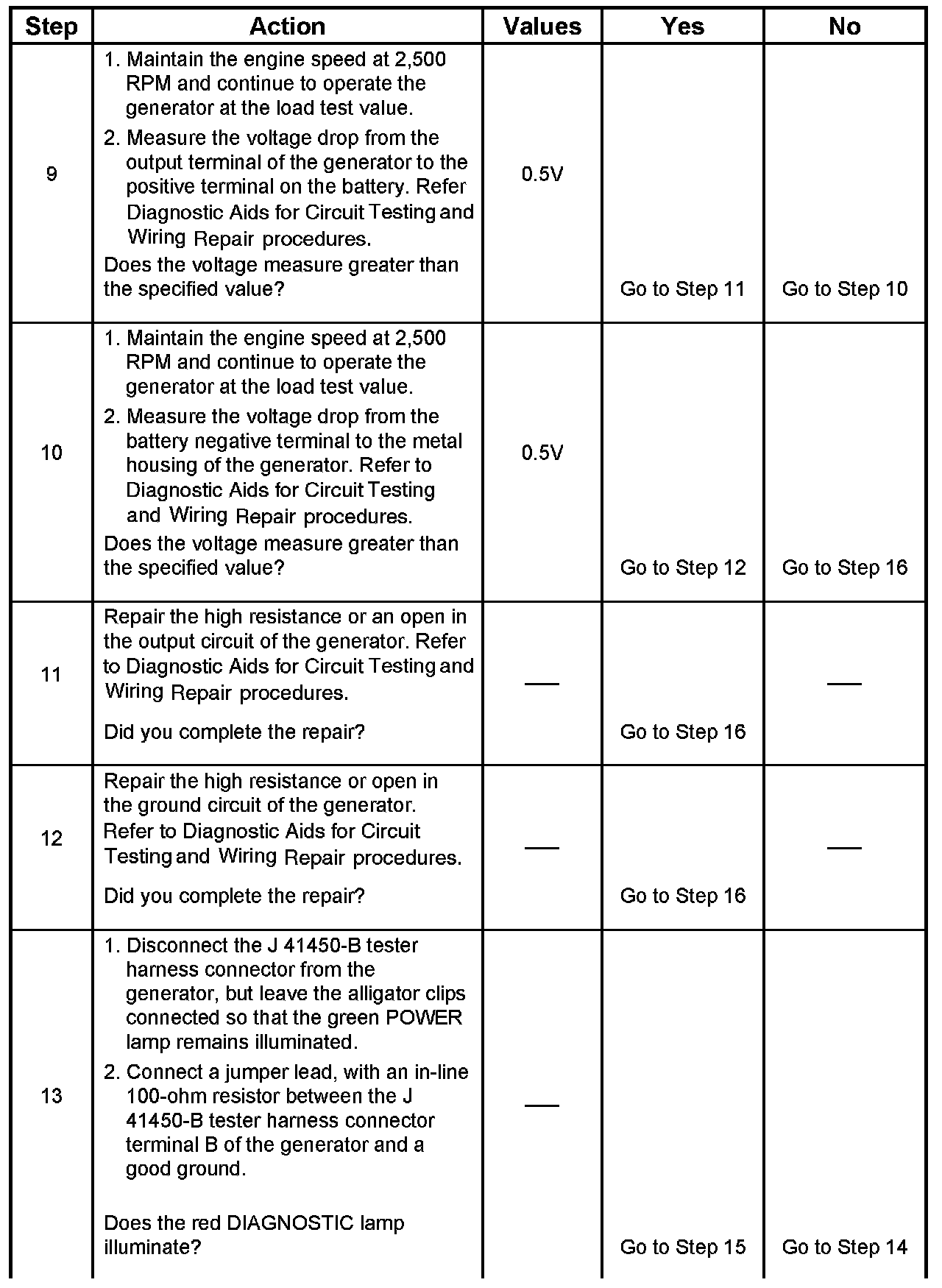

Step 9 - 13:

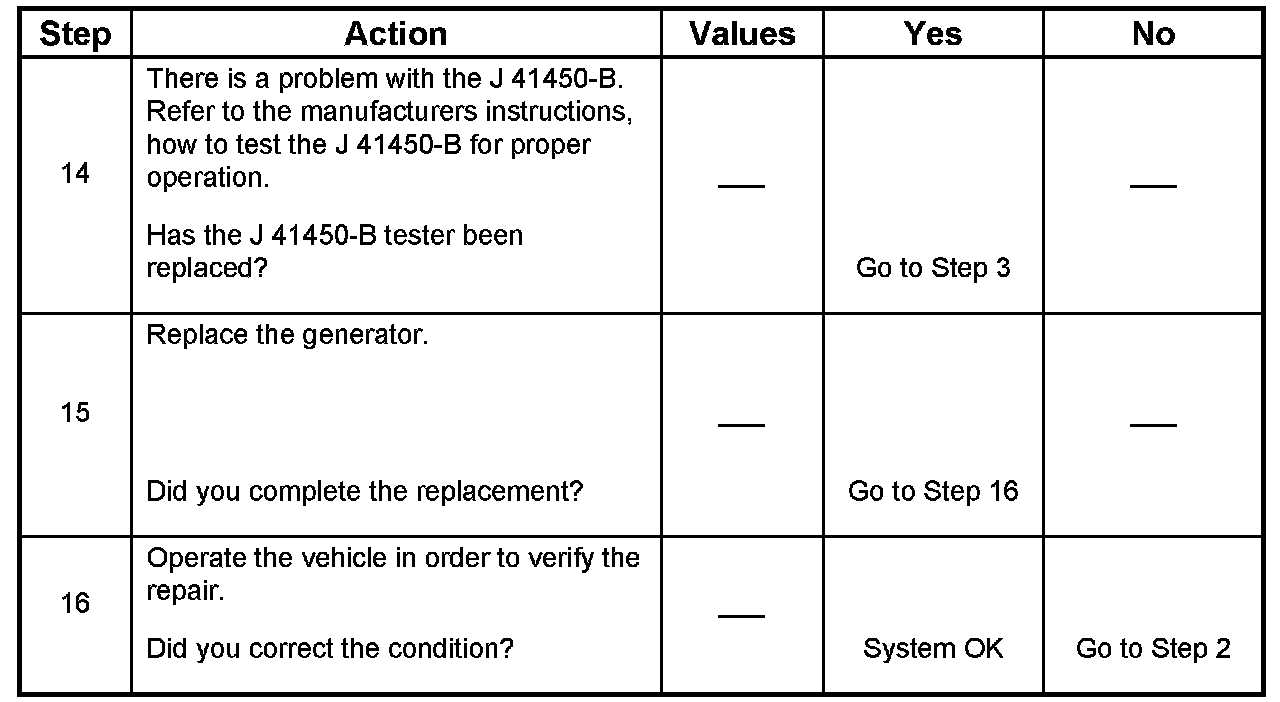

Step 14 - 16:
