Connector Views

Data Link Connector (DLC):



Data Link Connector (DLC):

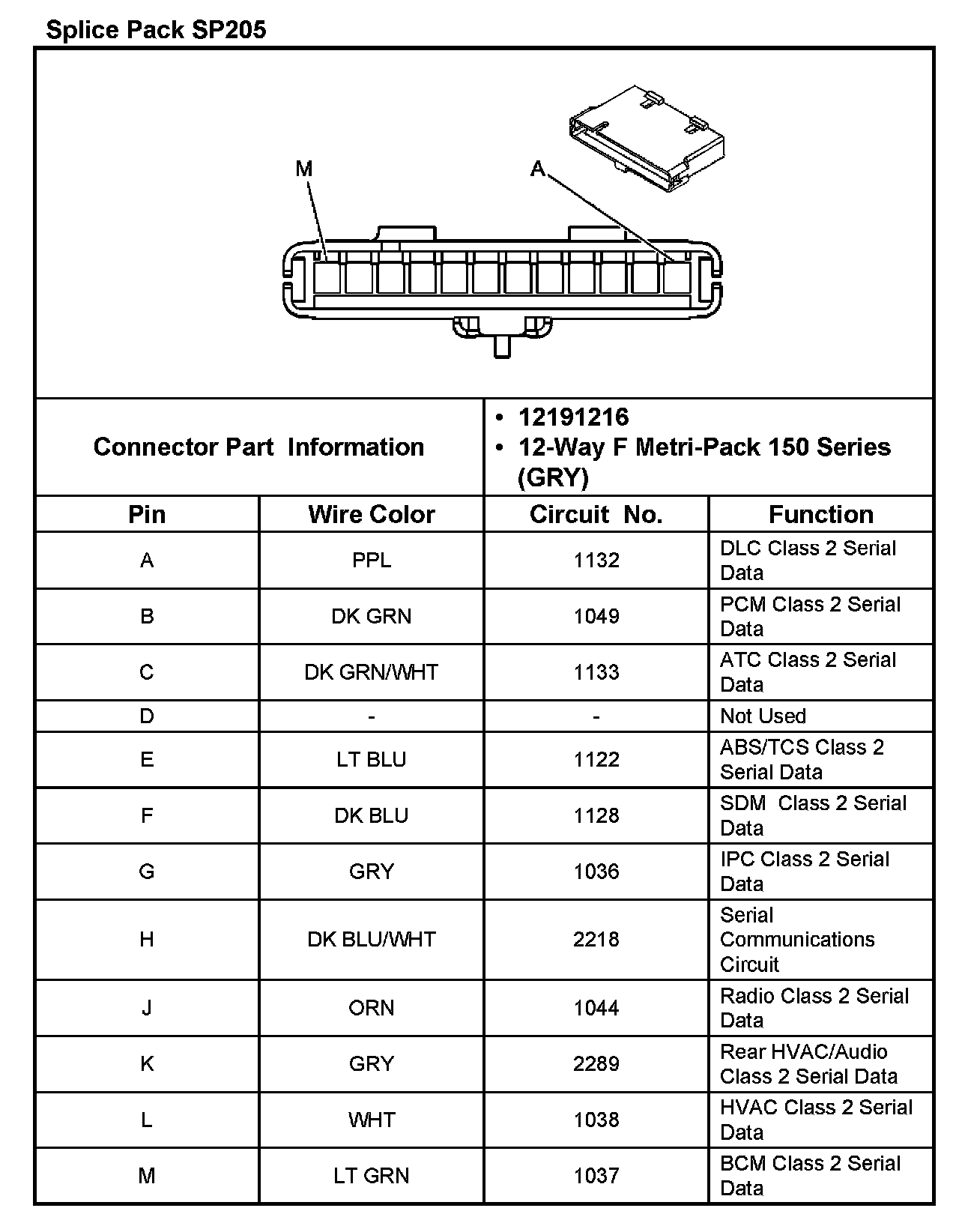

Splice Pack SP205:

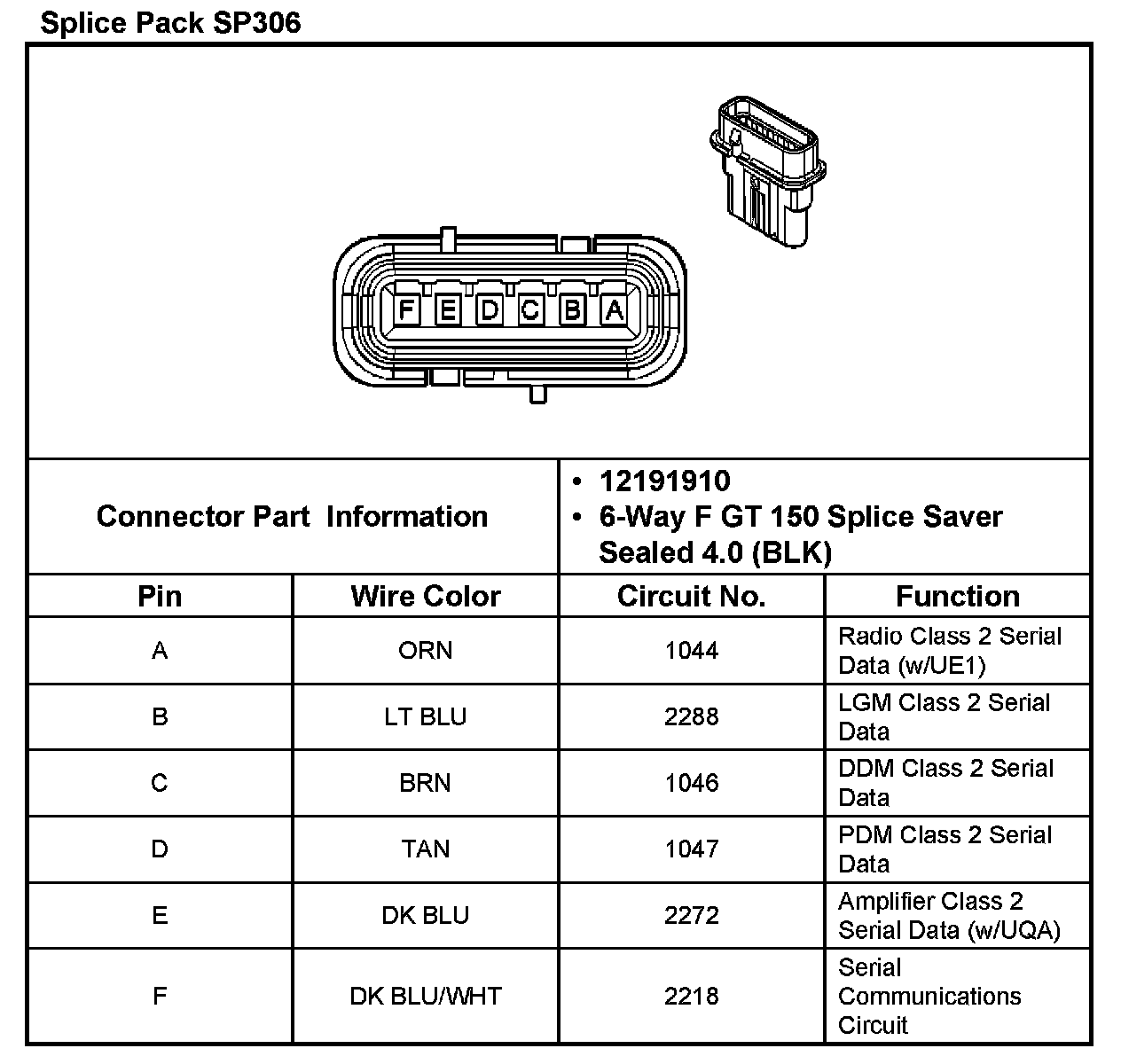

Splice Pack SP306:
