Home >> Isuzu >> 2003 >> Ascender 2WD L6-4.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Grounding Point >> Locations >> Engine Ground Views

Engine Ground Views

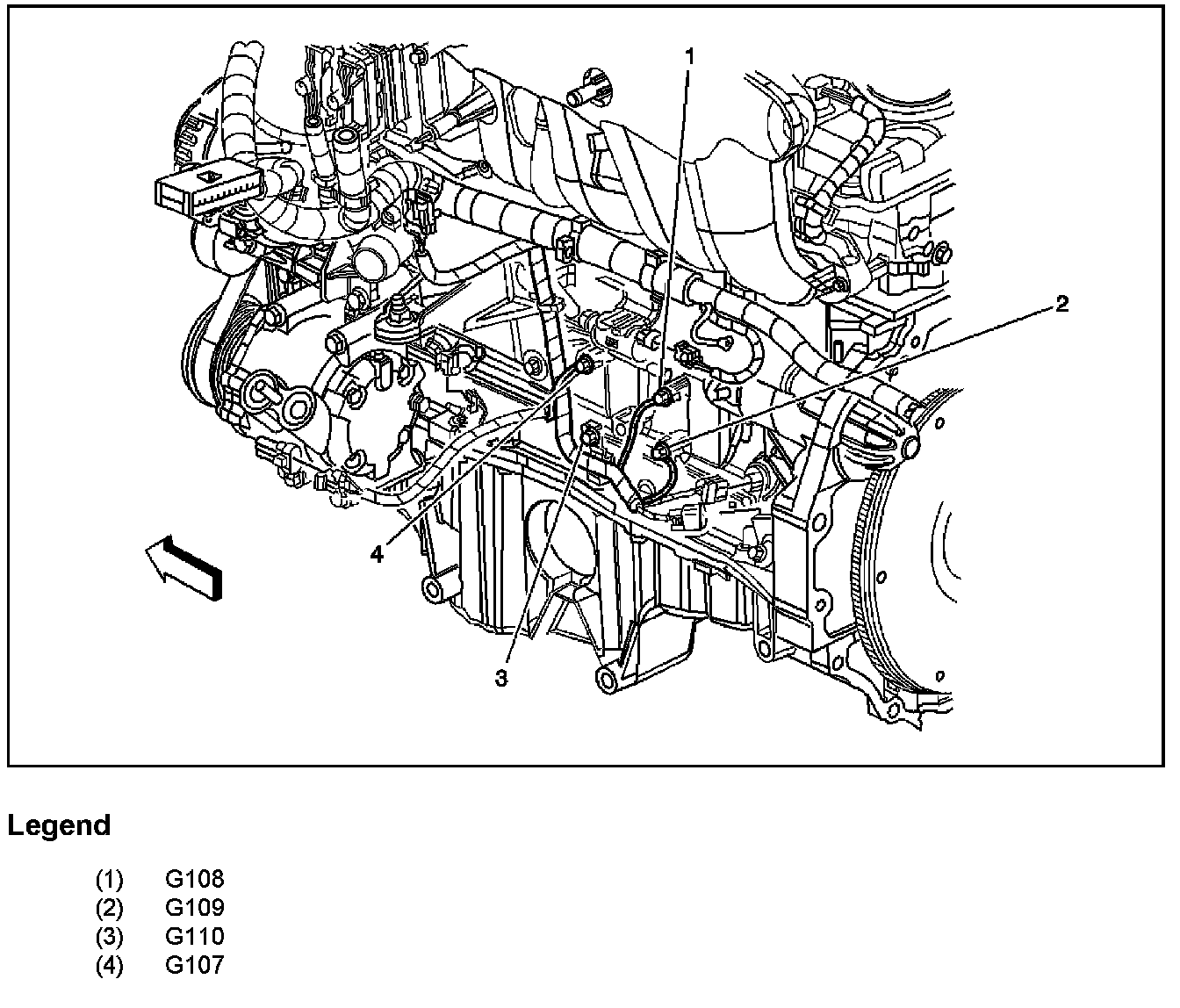

Engine Block Grounds G107, G108, G109, G110:
