Scan Tool Output Controls

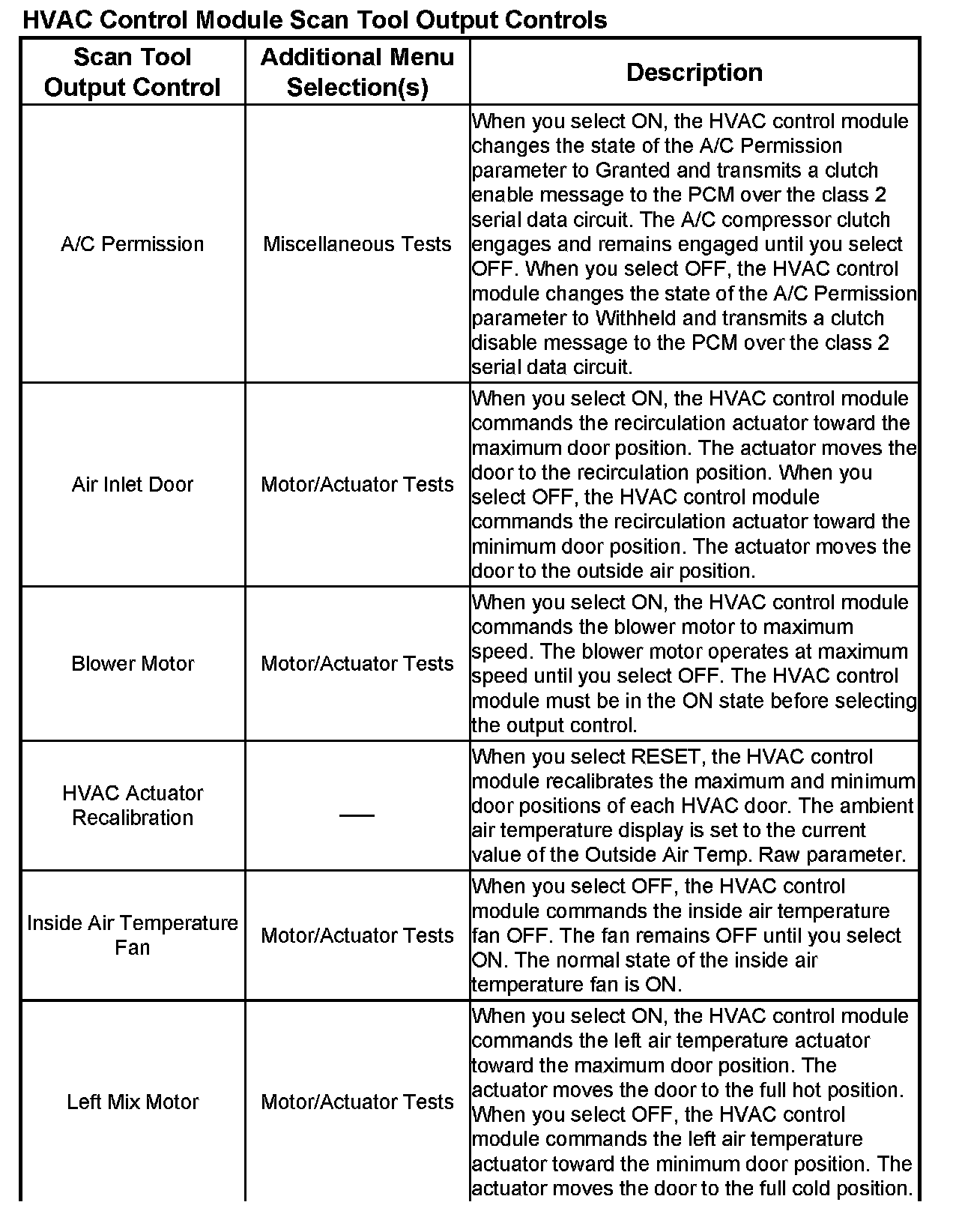

HVAC Control Module Scan Tool Output Controls Part 1:

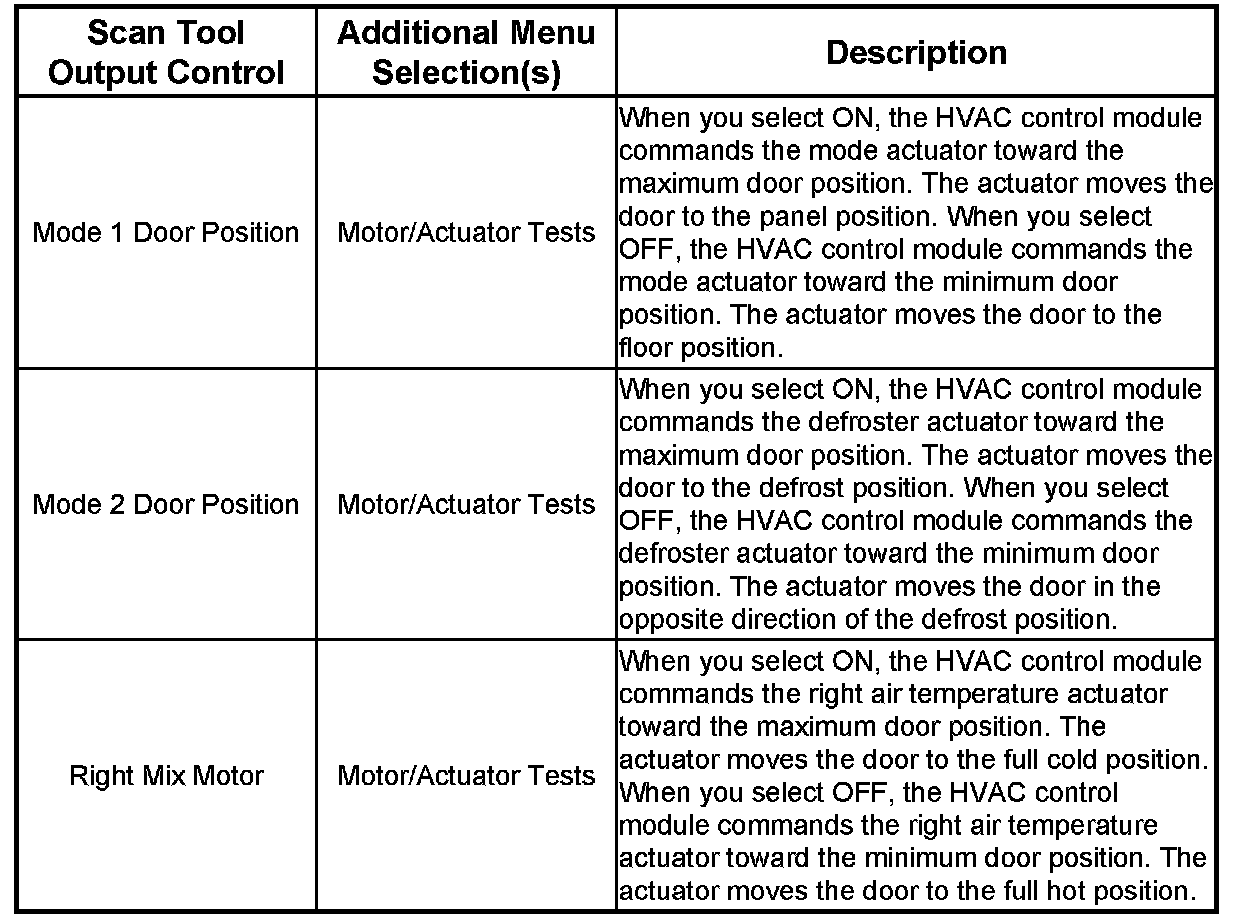

HVAC Control Module Scan Tool Output Controls Part 2:

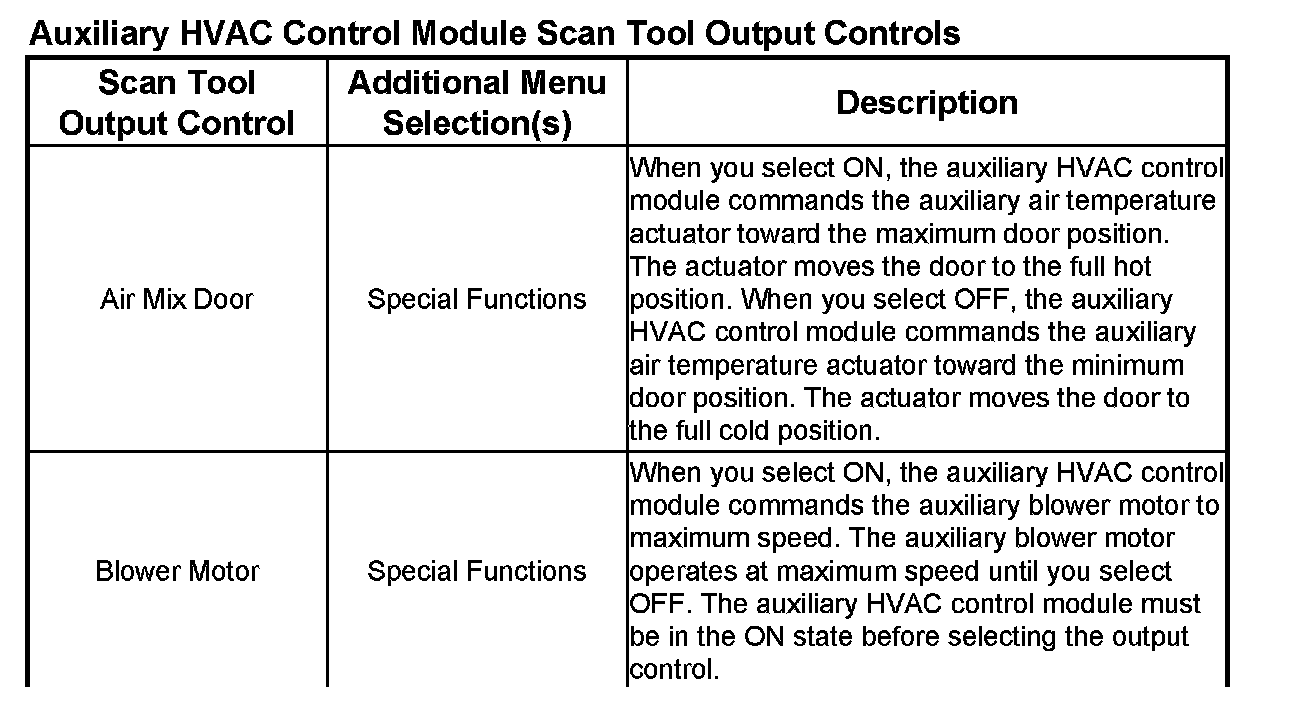

Auxiliary HVAC Control Module Scan Tool Output Controls Part 1:

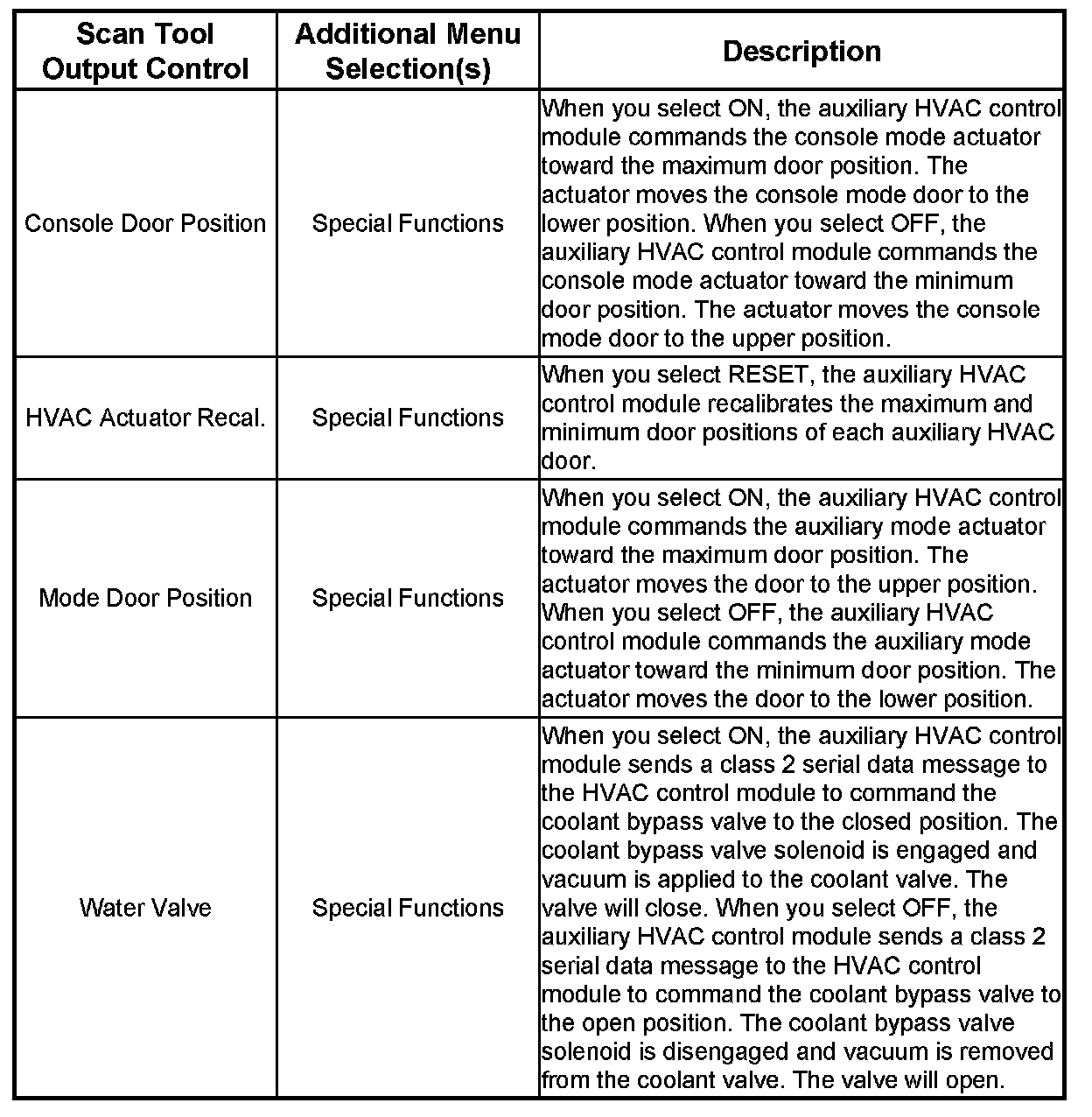

Auxiliary HVAC Control Module Scan Tool Output Controls Part 2:



PCM Scan Tool Output Controls:
