Engine
>>
Piston and Connecting Rod Components
Piston and Connecting Rod Components

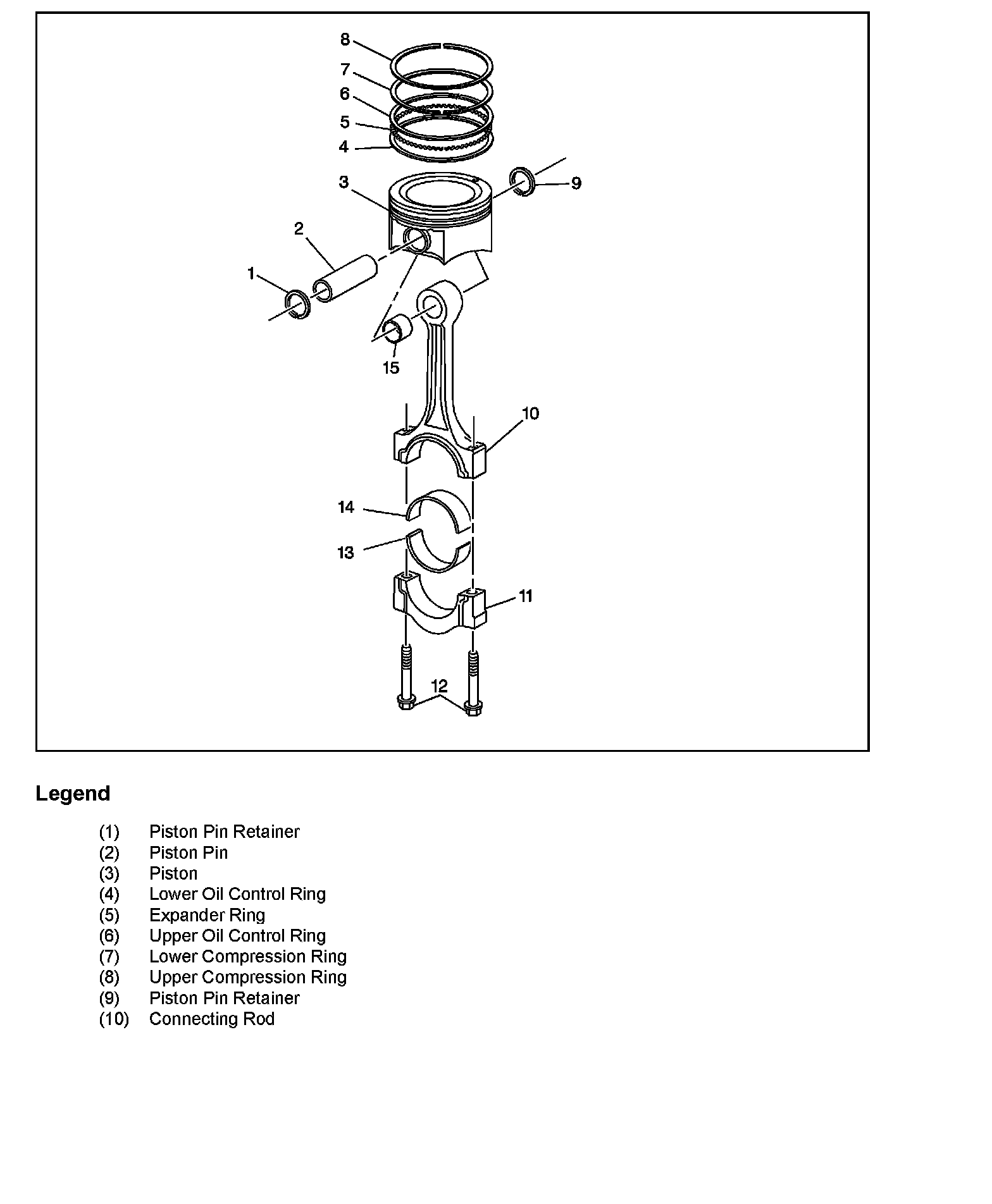

Piston and Connecting Rod Components (1 Of 2):
Piston and Connecting Rod Components (2 Of 2):
