Internal Parts

Internal Parts

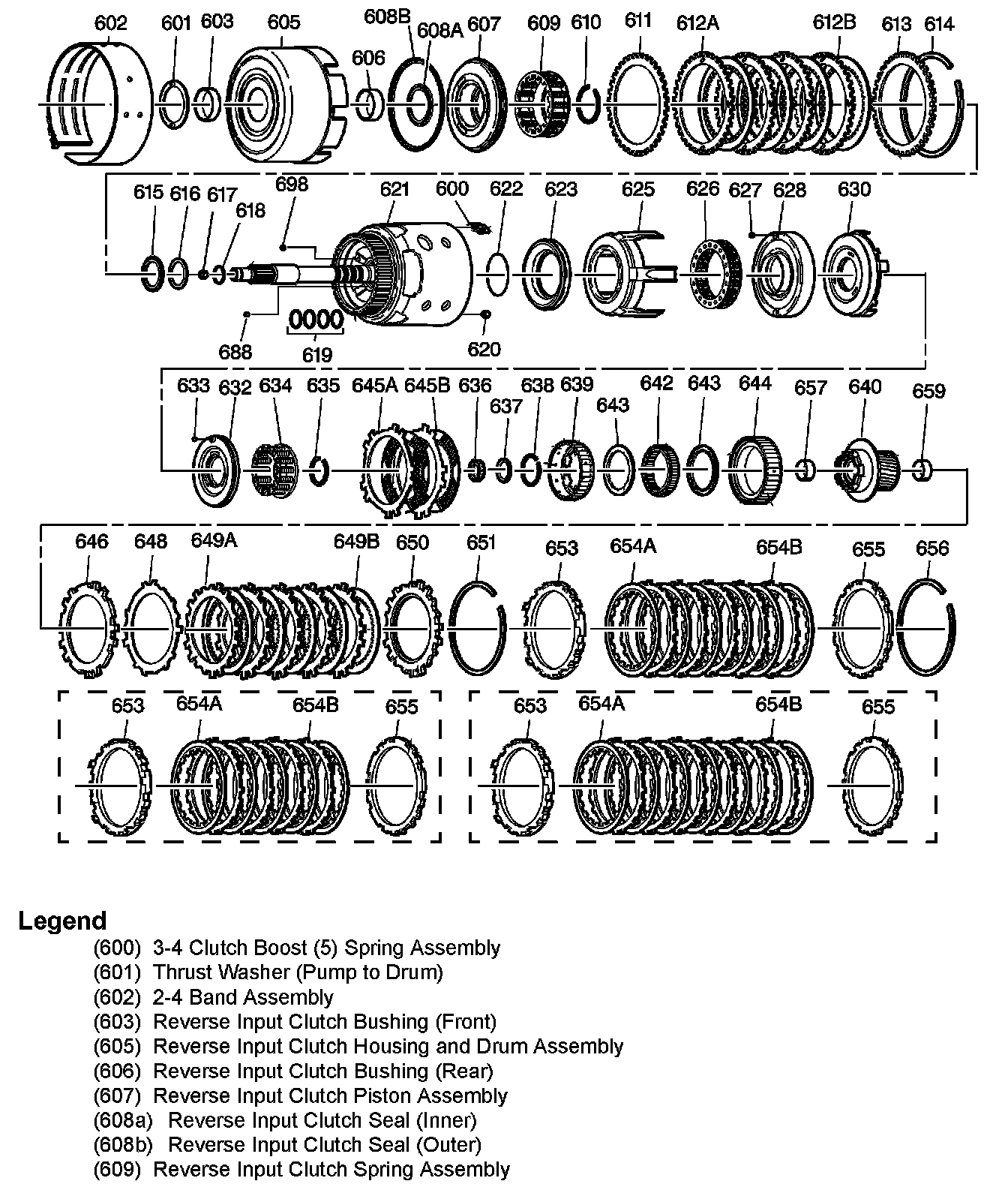

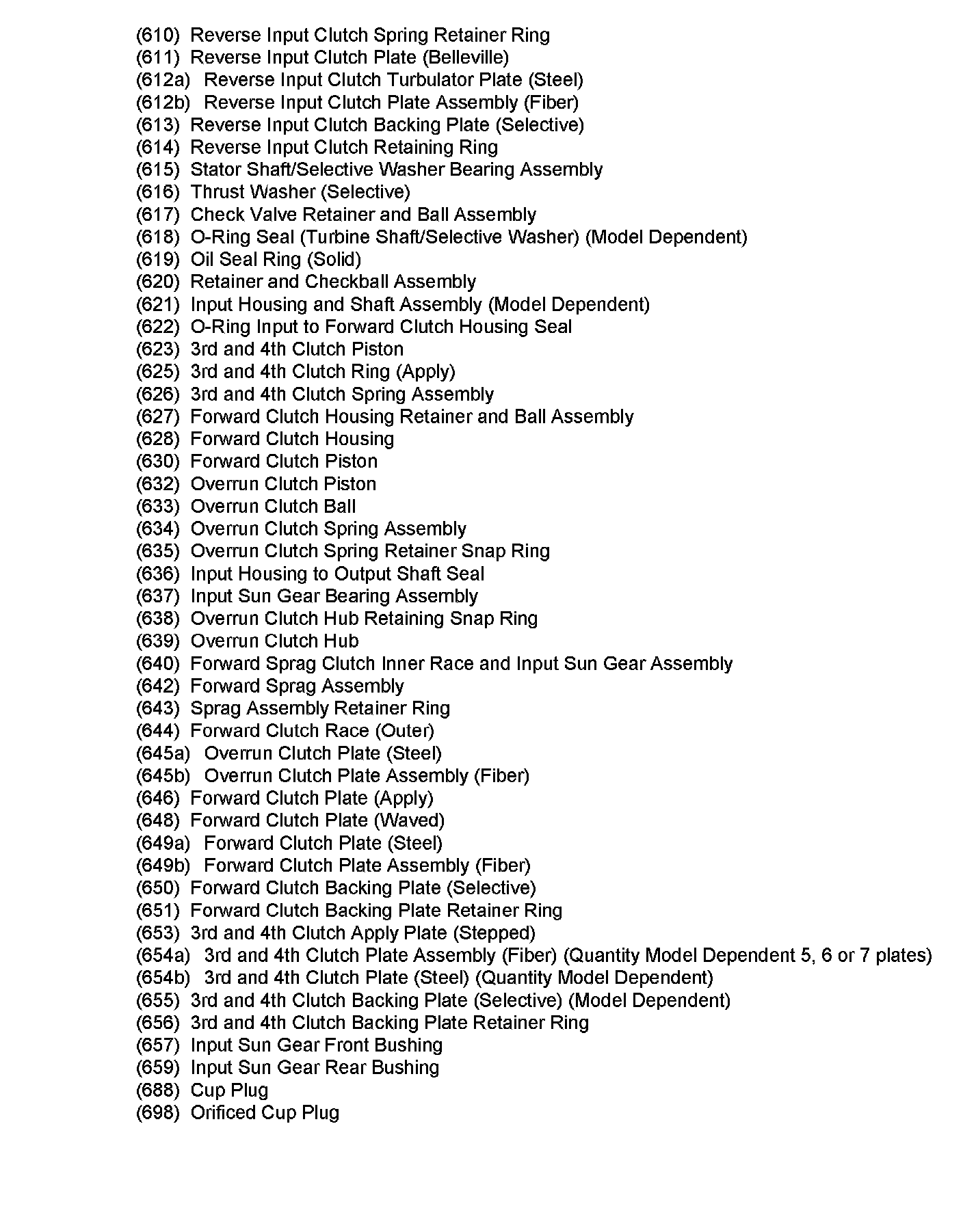

Internal Parts (1 of 2):




Internal Parts (1 of 2):

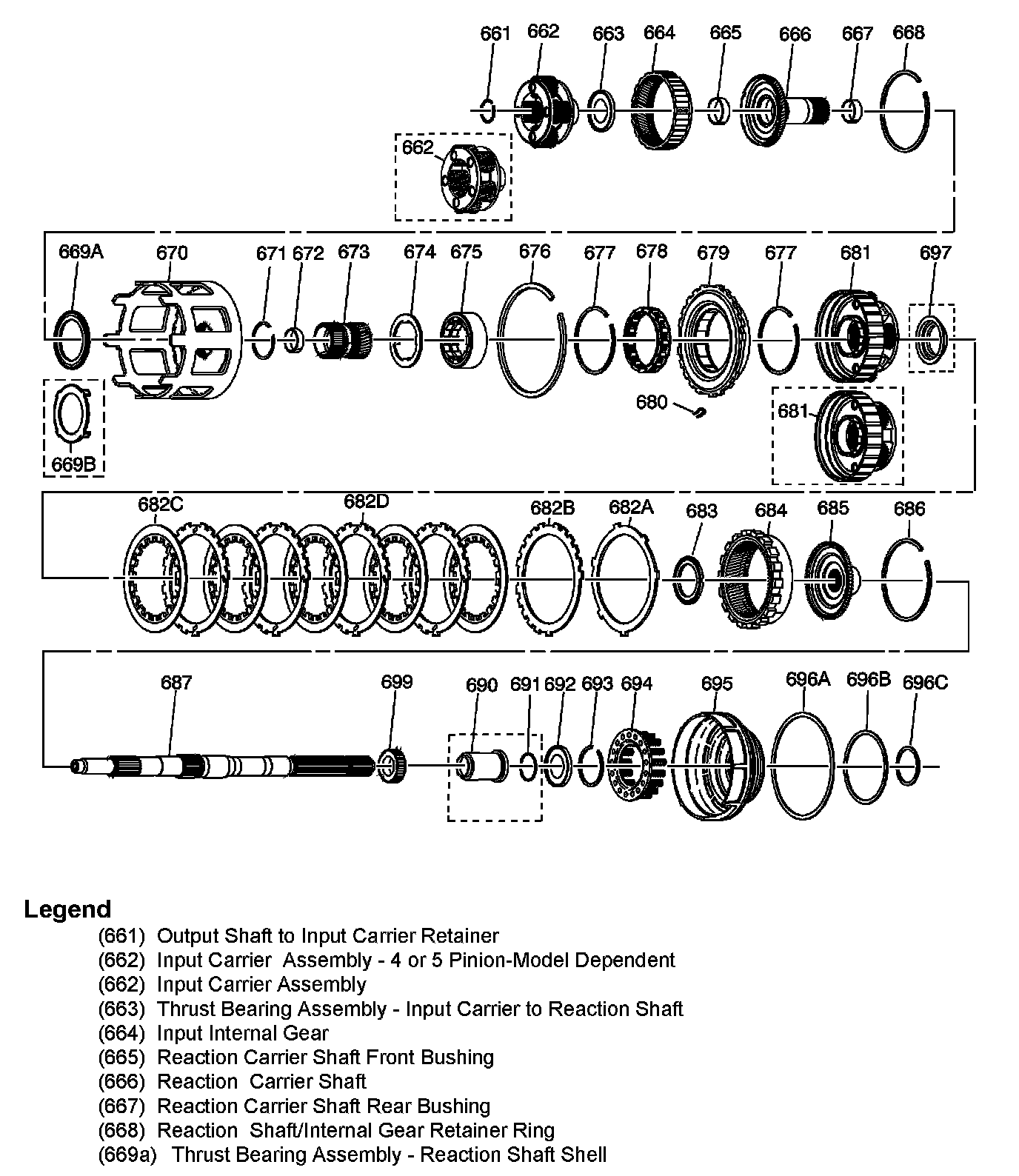

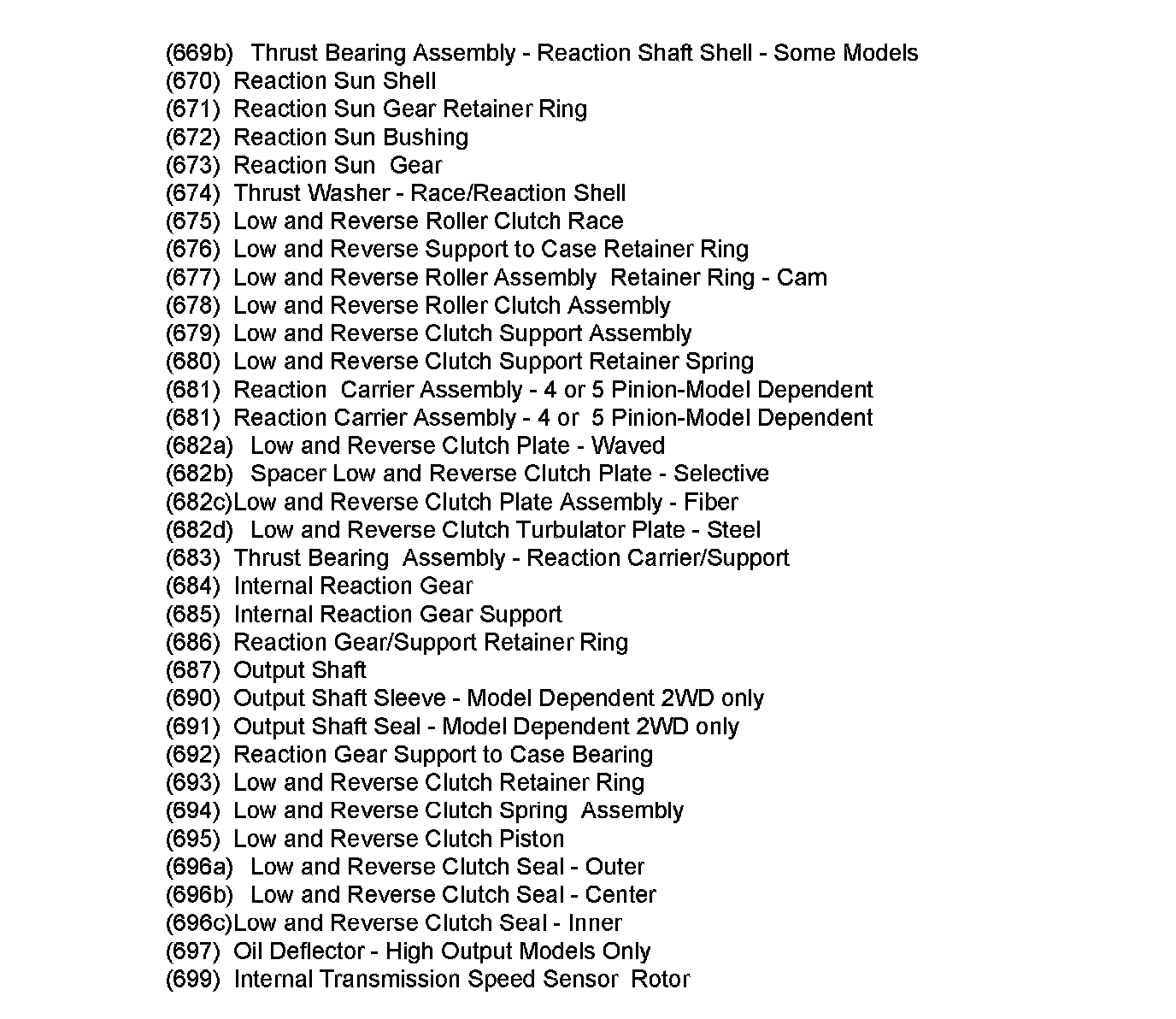

Internal Parts (2 of 2):




Internal Parts (2 of 2):
