Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems
ABS Component Views

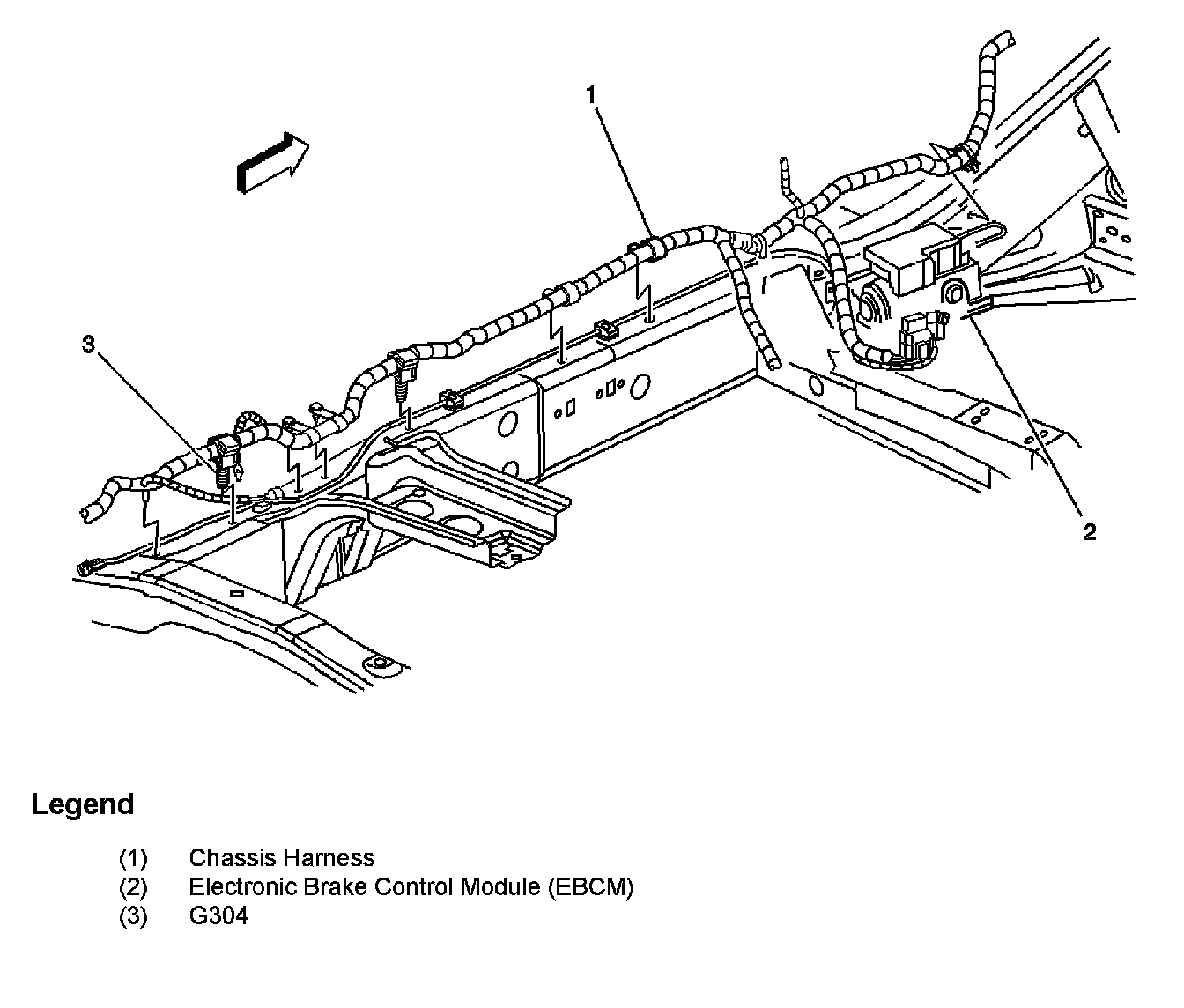

Frame Rail, Left Side:

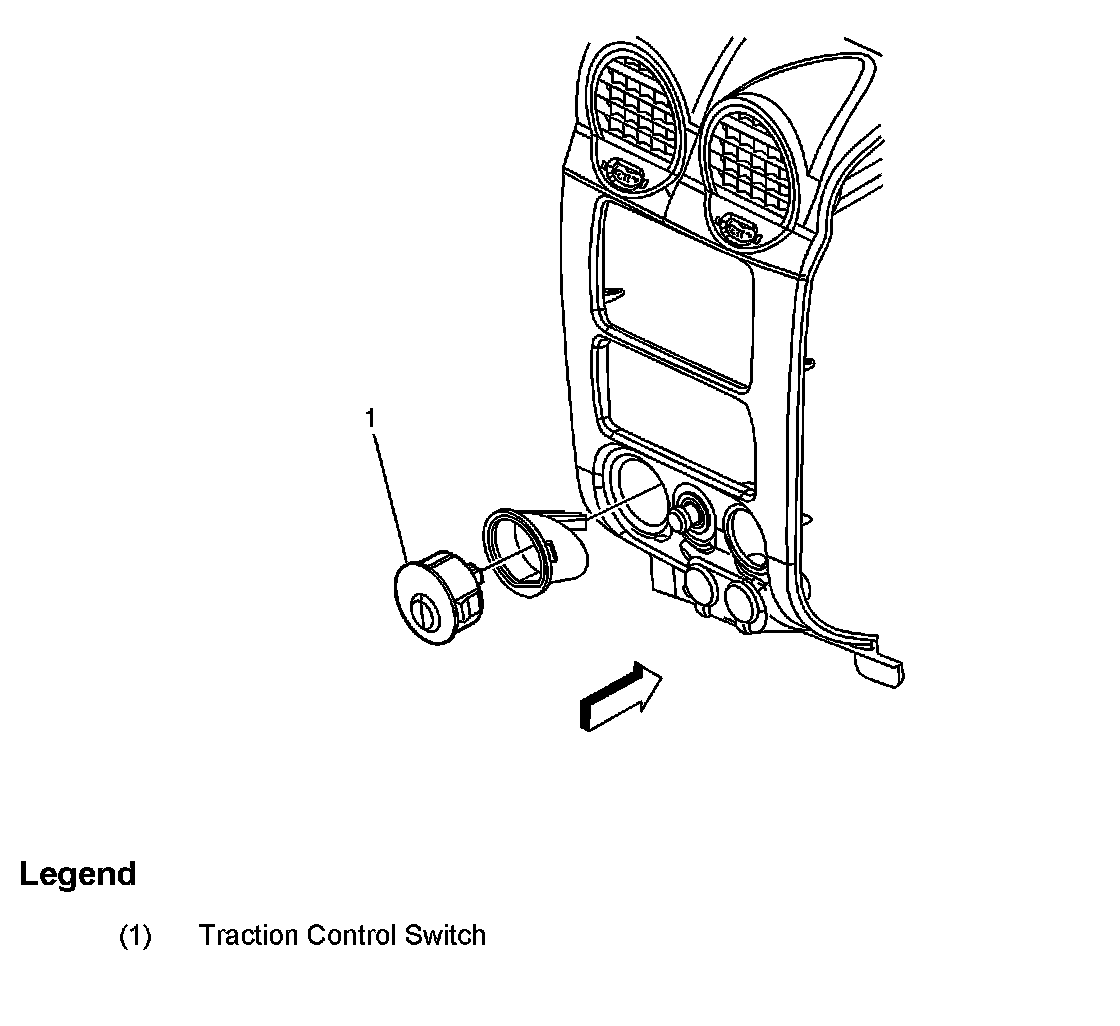

Traction Control Switch:

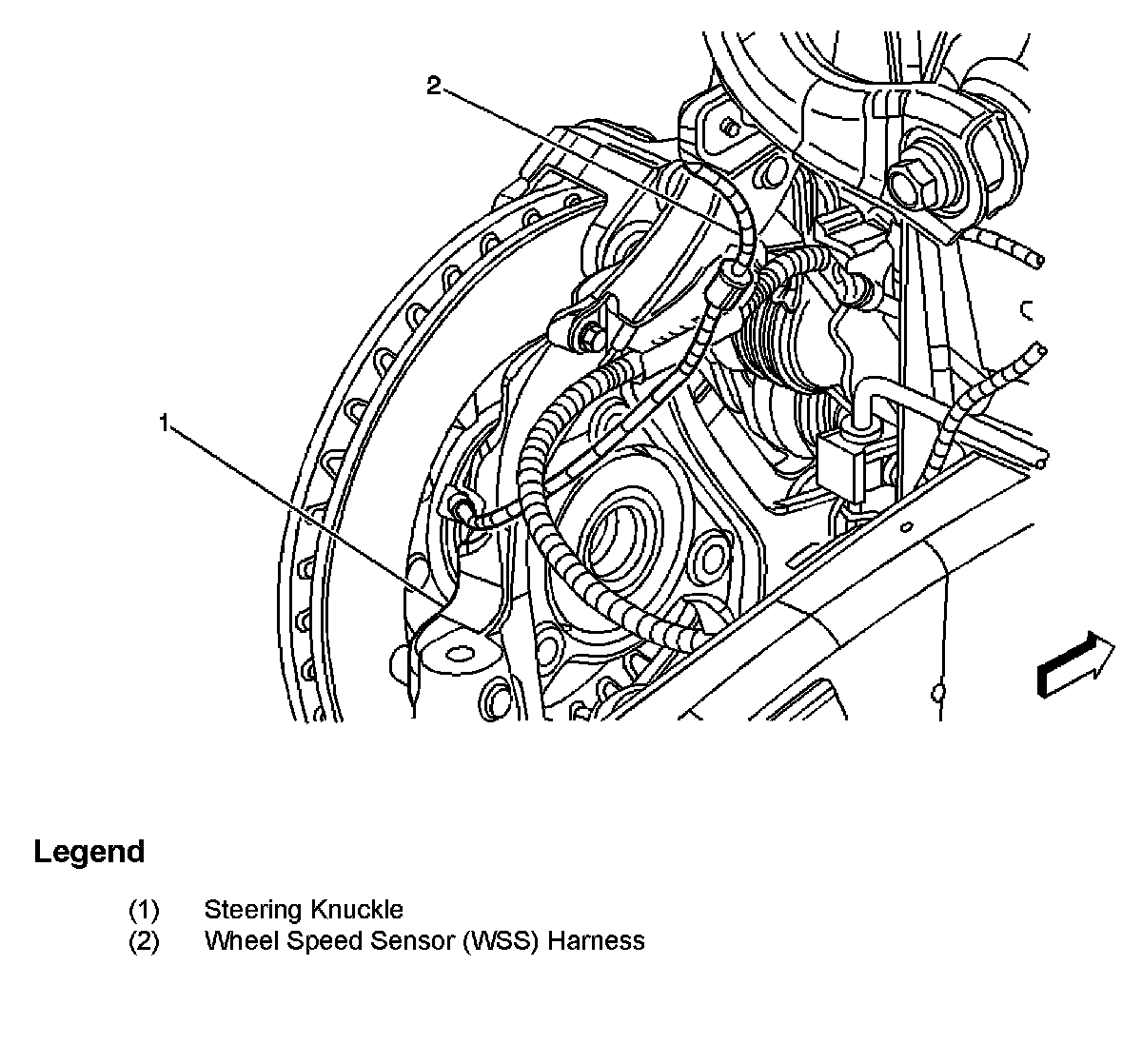

Left Front Hub and Rotor:
