Front Fender Liner: Service and Repair

Wheelhouse Panel Replacement

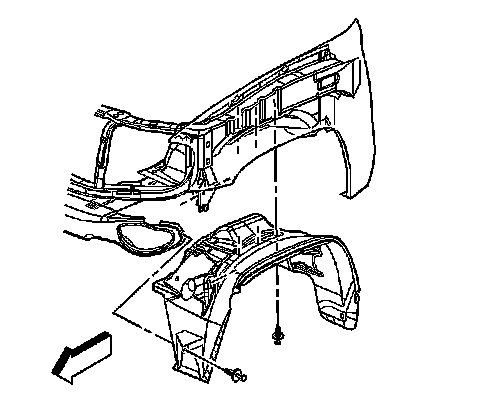

Removal Procedure




1. Remove the push-pins from the wheelhouse liner.
2. Remove the bolt that retains the wheelhouse liner to the rocker molding.
3. Remove the wheelhouse liner from the vehicle.

Installation Procedure




1. Install the wheelhouse liner to the vehicle.
2. Install the push-pins that retain the wheelhouse liner to the body.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the bolt that retains the wheelhouse liner to the rocker molding.

Tighten the bolt to 10 N.m (89 lb in).
