Fluid - Differential: Testing and Inspection

Inspection Of Shift On The Fly System Gear Oil

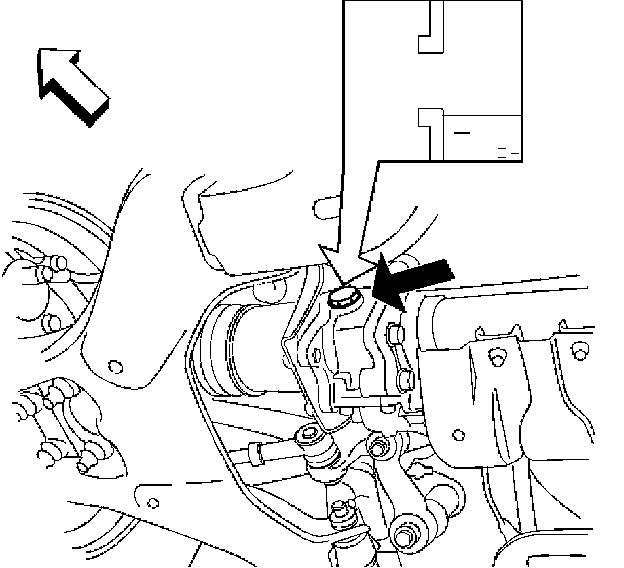

1. Open filler plug and make sure that the oil is up to the plug port.
If the level oil is low, replenish with gear oil GL-5 grade.
2. Tighten the filler plug to specified torque.
Torque: 78 Nm (58 inch lbs.)
