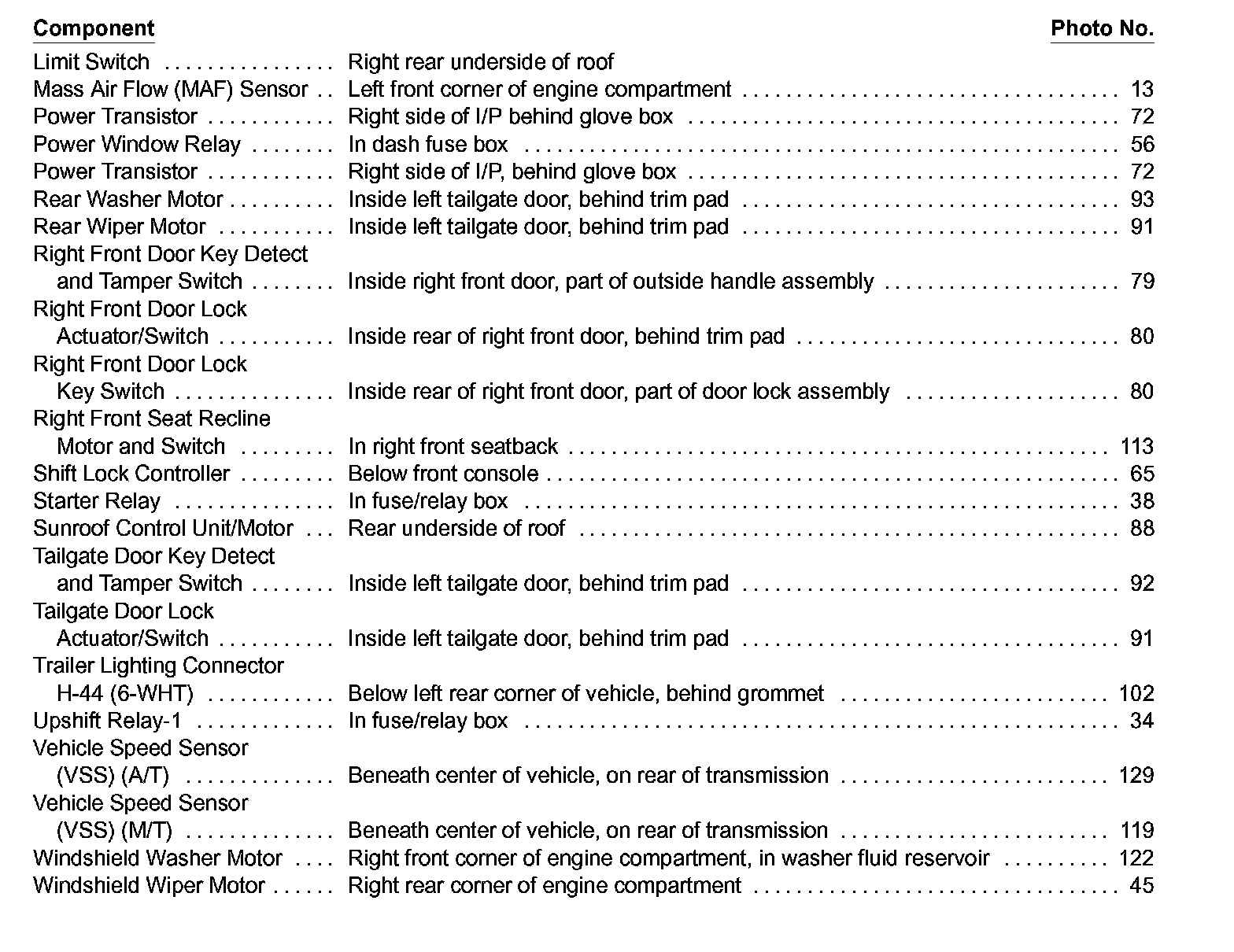

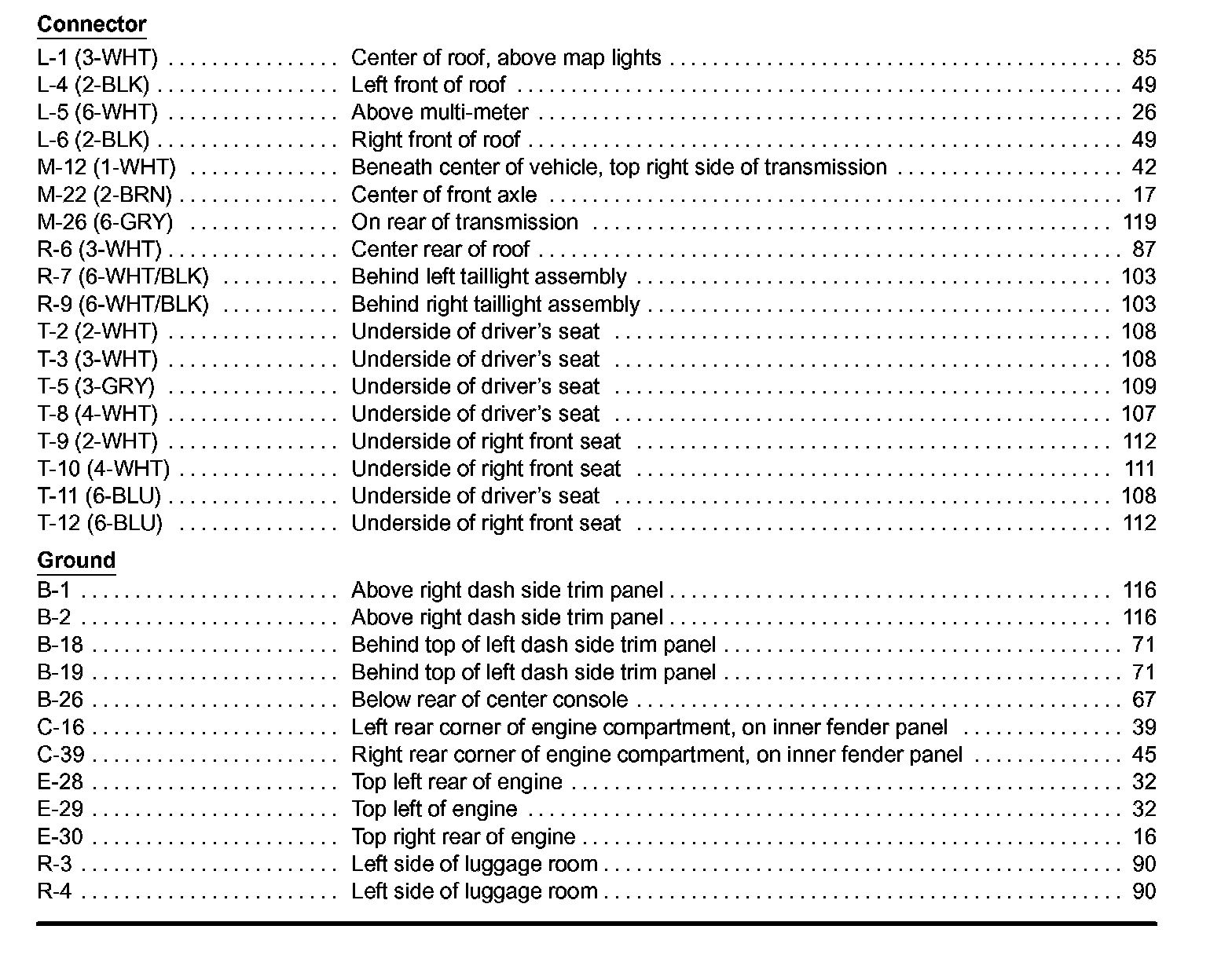

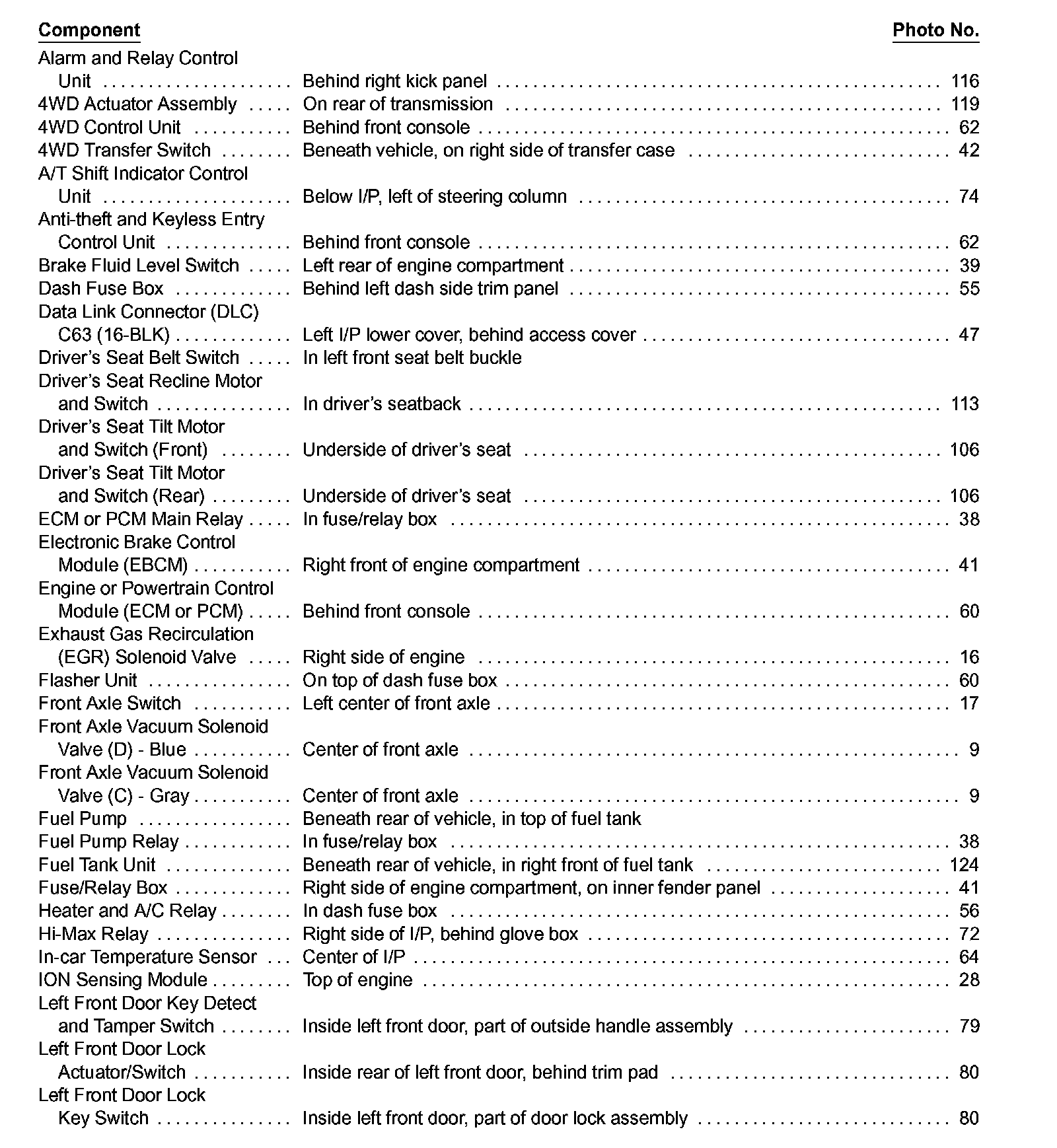

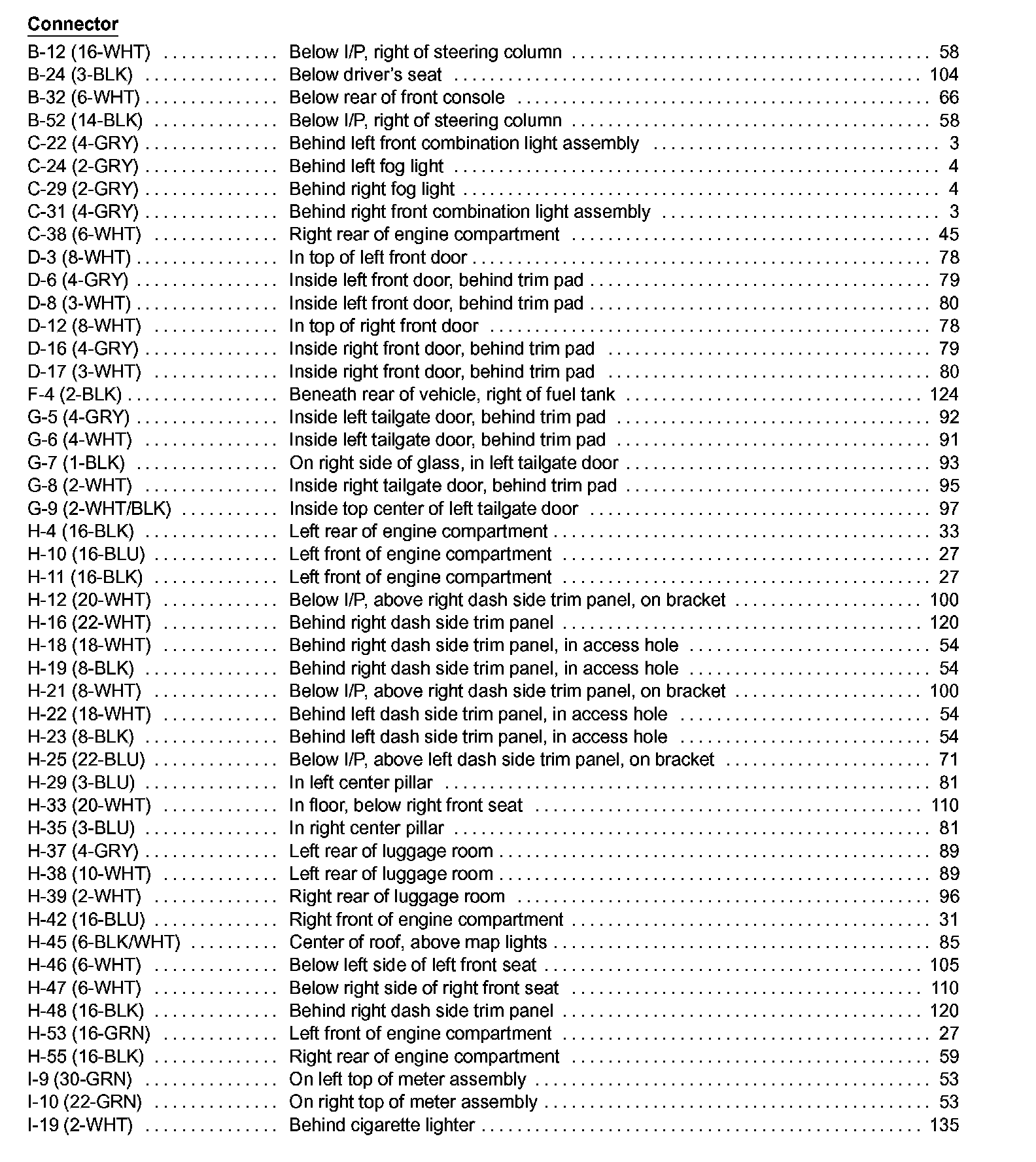

Ground Locations

Ground Distribution Index 1:



Ground Distribution Index 2:



Ground Distribution Index 3:



Ground Distribution Index 4:



Engine Controls Index 3:
