Possible Causes of High Line Pressure

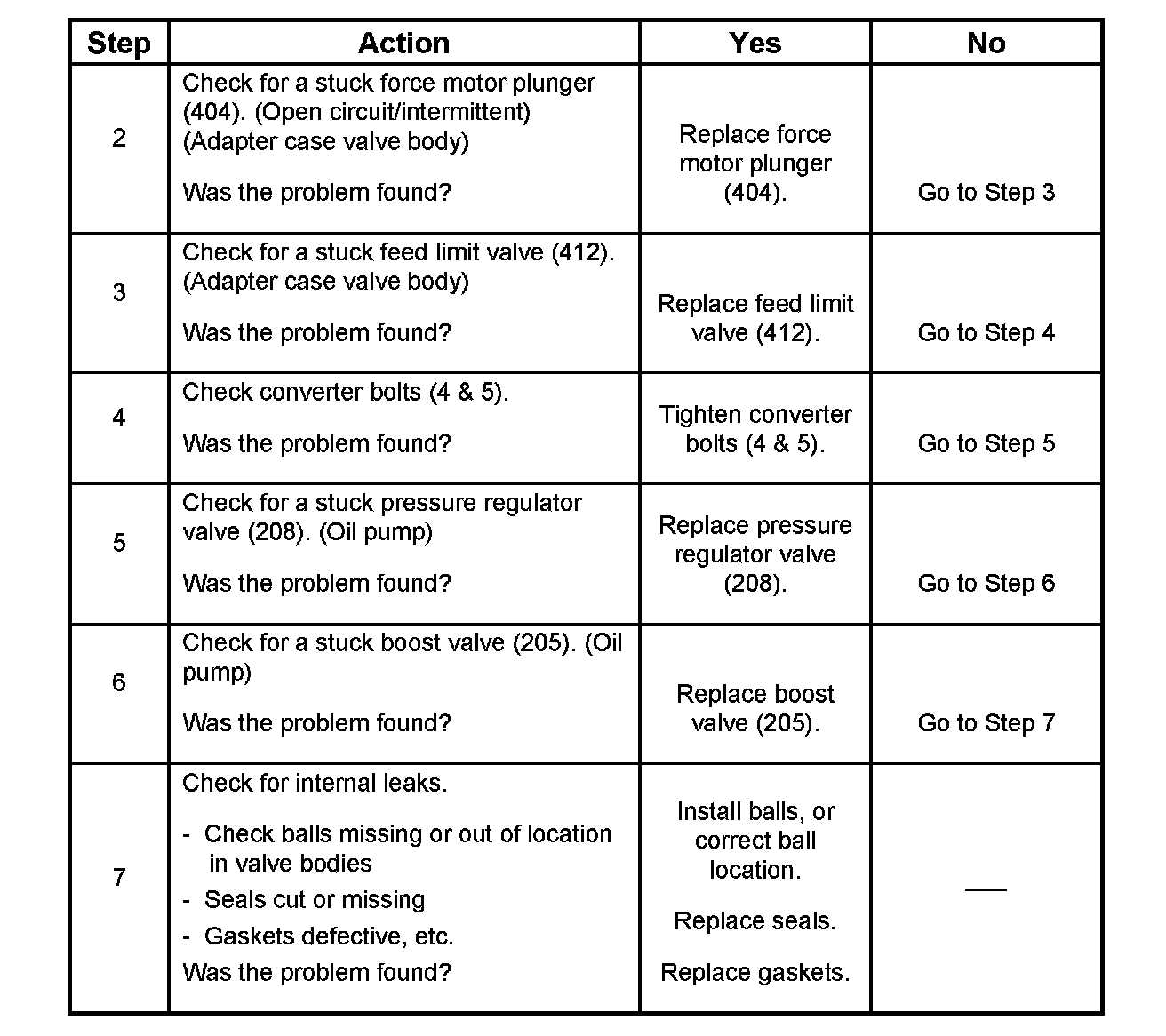

Chart 15b: Possible Causes of High Line Pressure





1 of 2





1 of 2

Note: If transmission is operating in backup mode, high line pressure will be present
