Home >> Isuzu >> 2002 >> Rodeo LS 2WD V6-3.2L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams

Windows: Diagrams

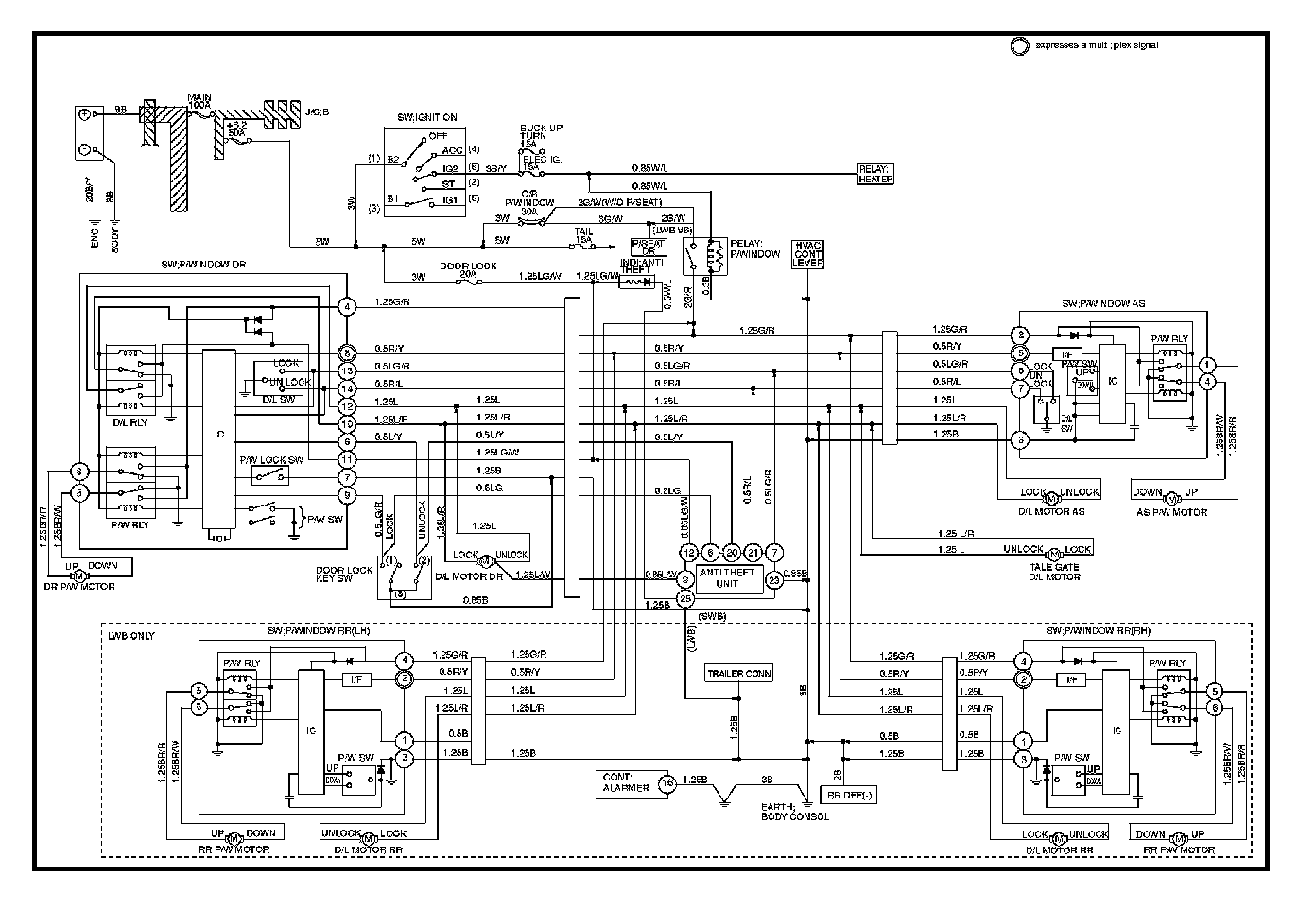

Power Window And Door Lock:

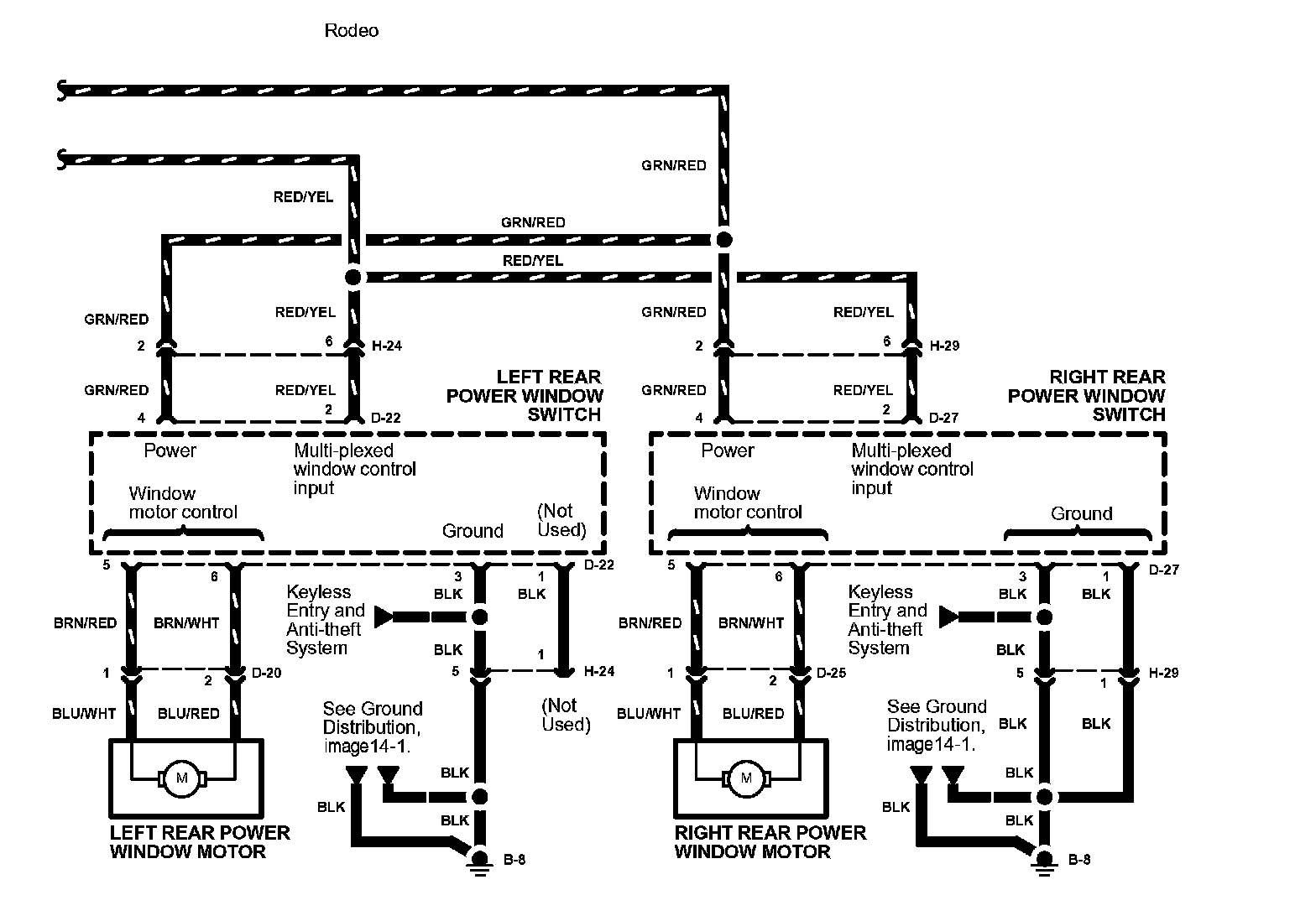

Power Windows Image 120:

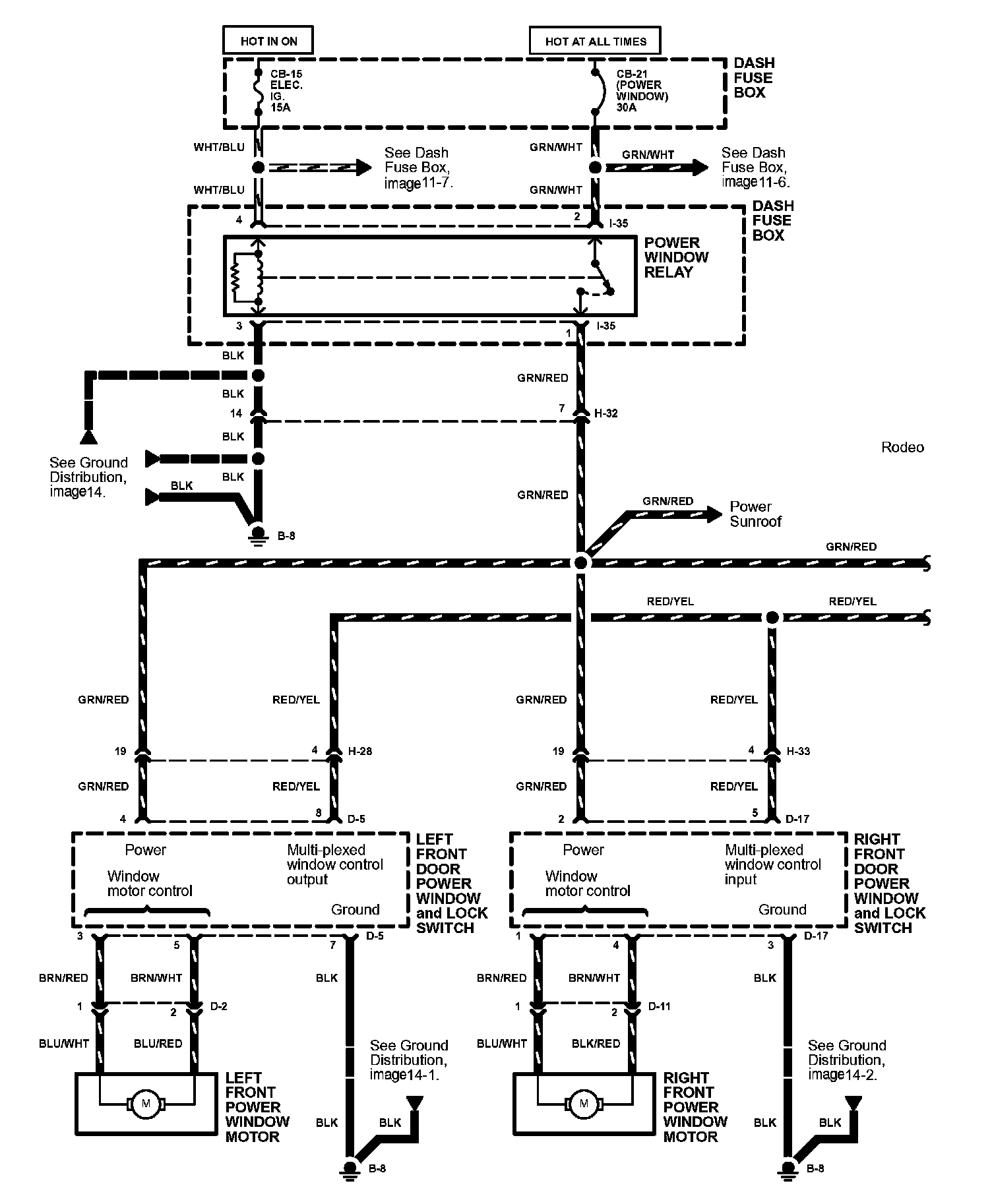

Power Windows Image 120-1:
