Ambient Temperature Sensor / Switch HVAC: Service and Repair

Ambient Sensor:

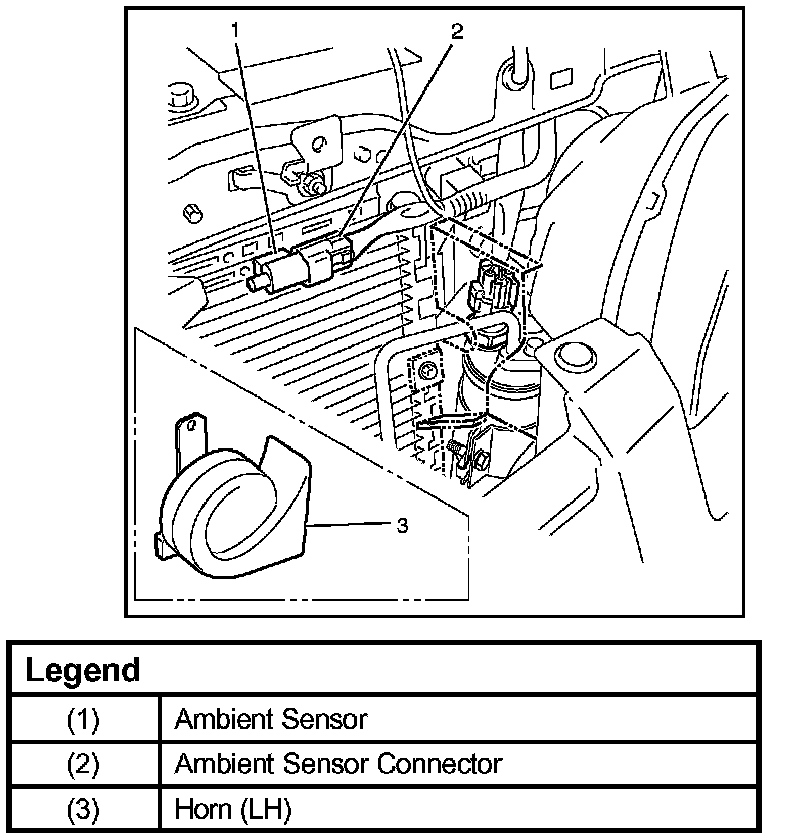

Ambient Sensor

Removal

1. Disconnect the battery ground cable.
2. Remove the horn (LH).
3. Disconnect the ambient sensor connector.
4. Remove the ambient sensor.

Installation

To install, follow the removal step in the reverse order.
