Control Assembly: Locations

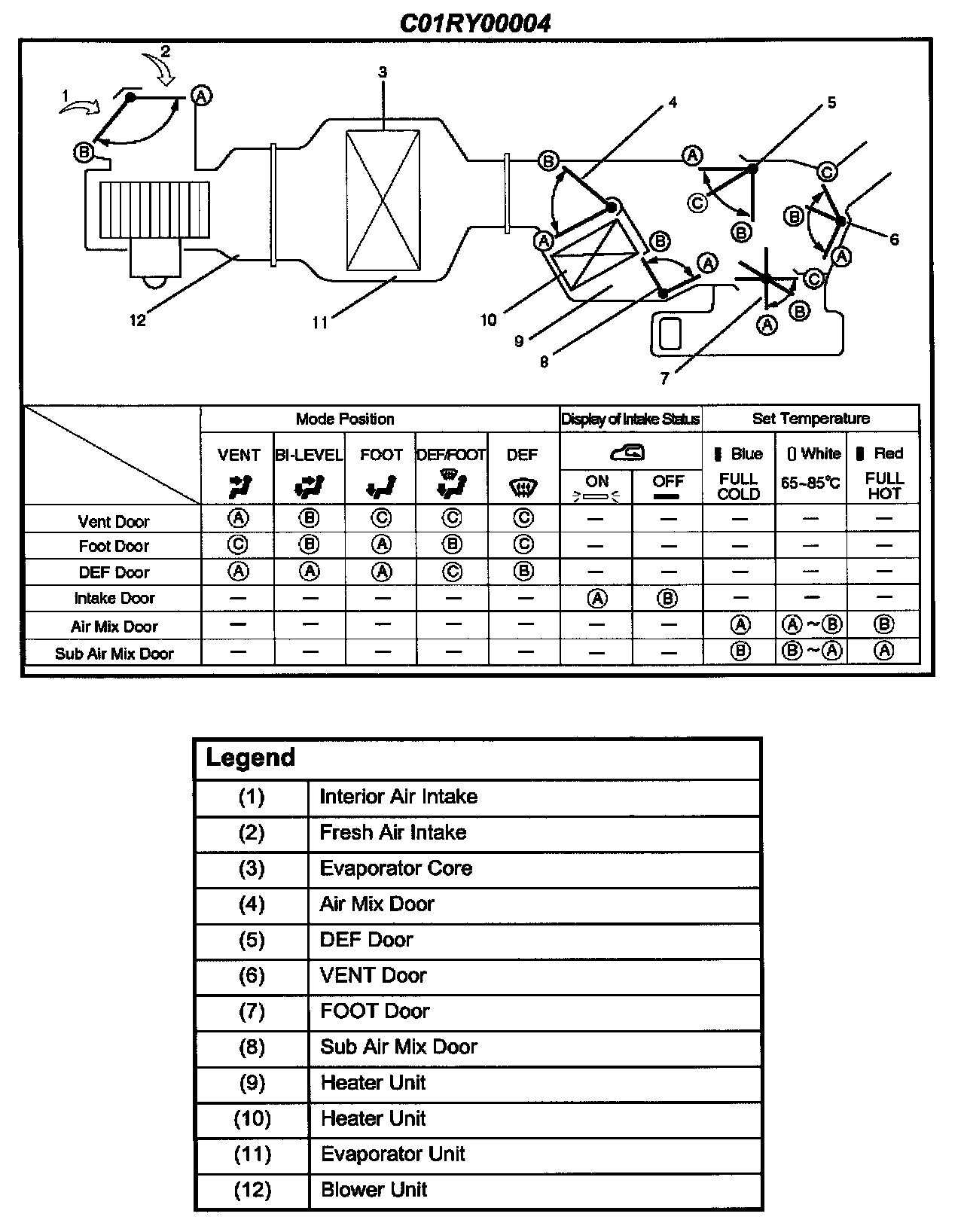

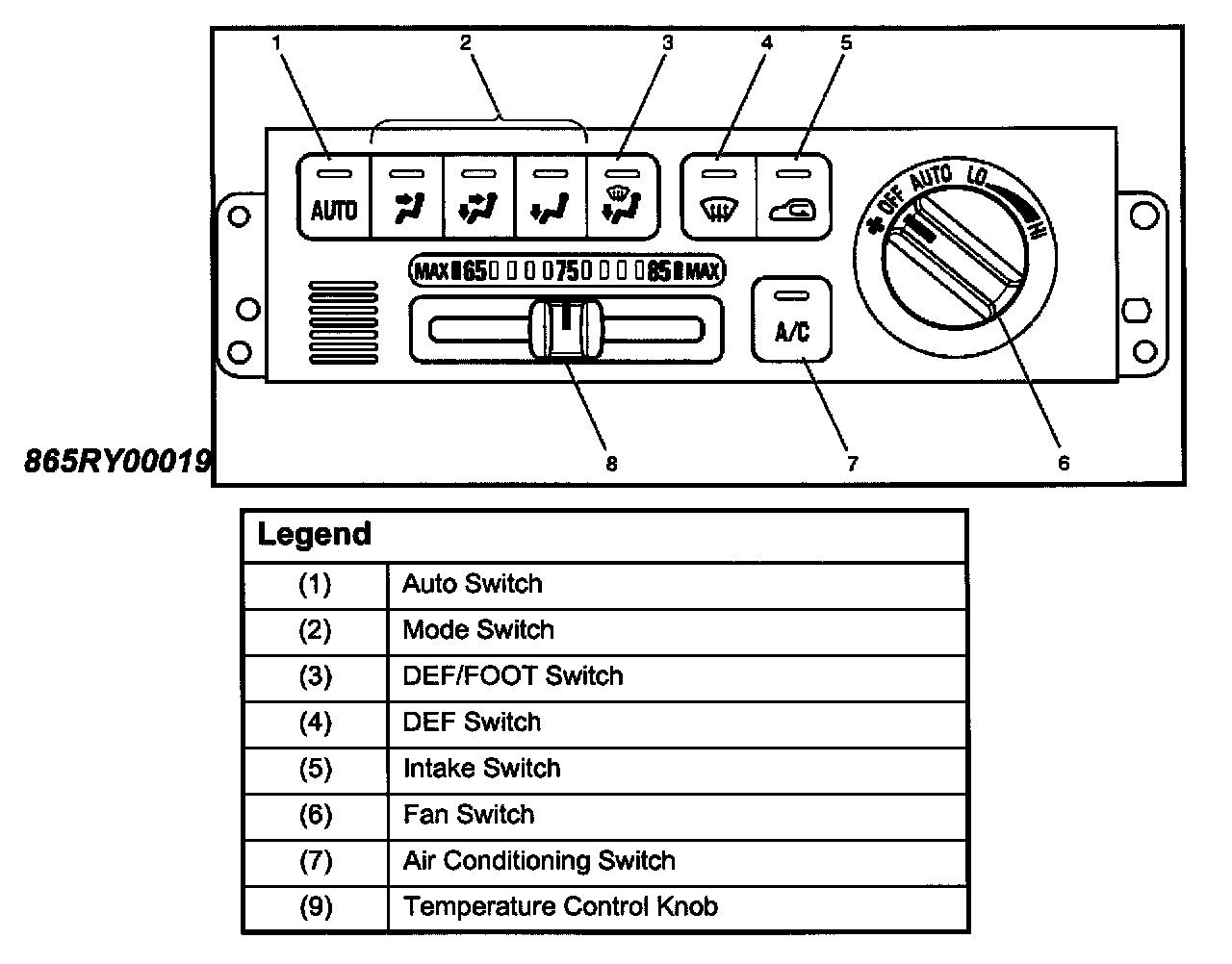

Control Lever Assembly, Control Cable And Associated Parts:



Part 1 Of 2:



Part 2 Of 2:
