Rodeo S 2WD L4-2.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
Starting System

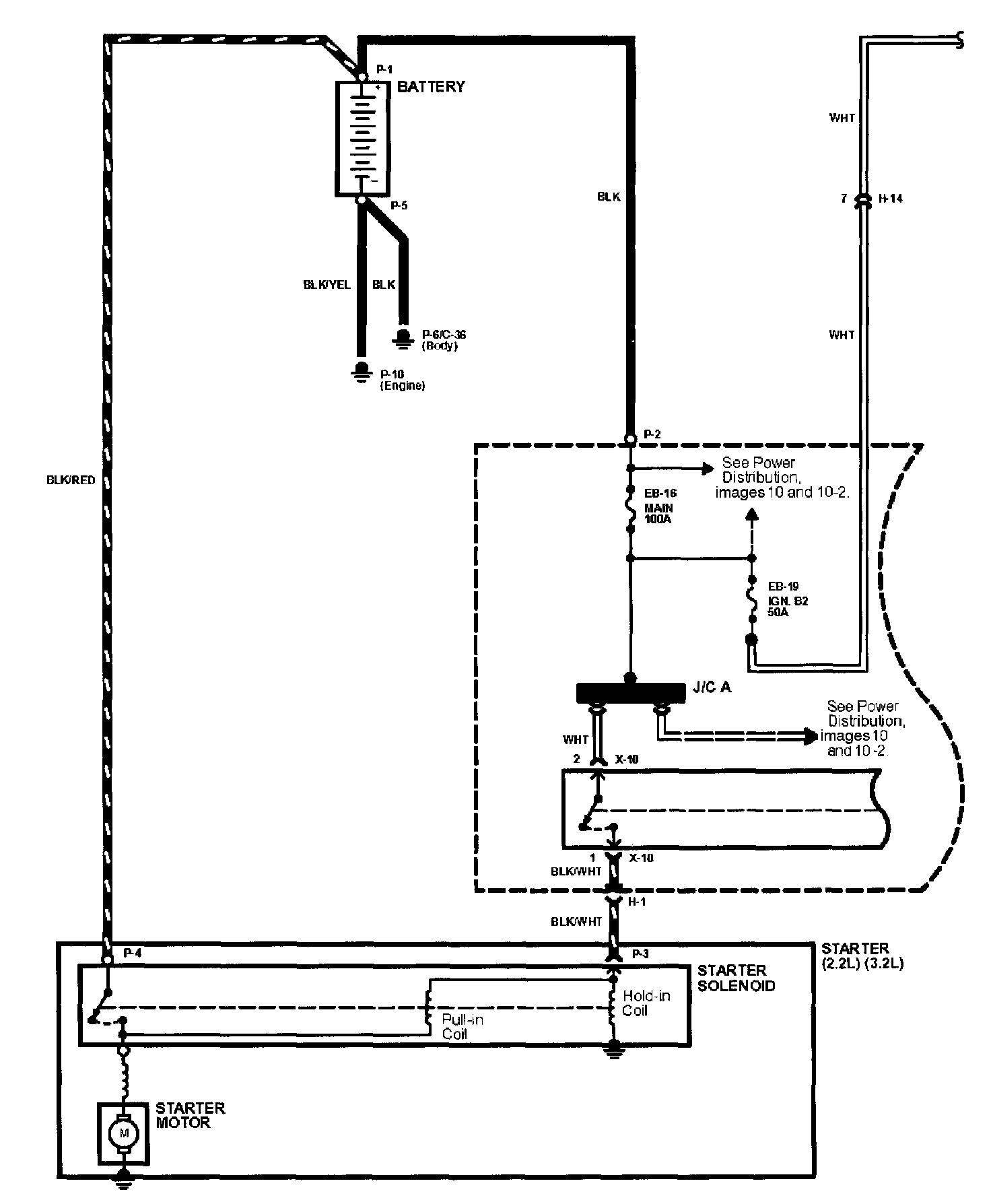

Starting System Image 21:

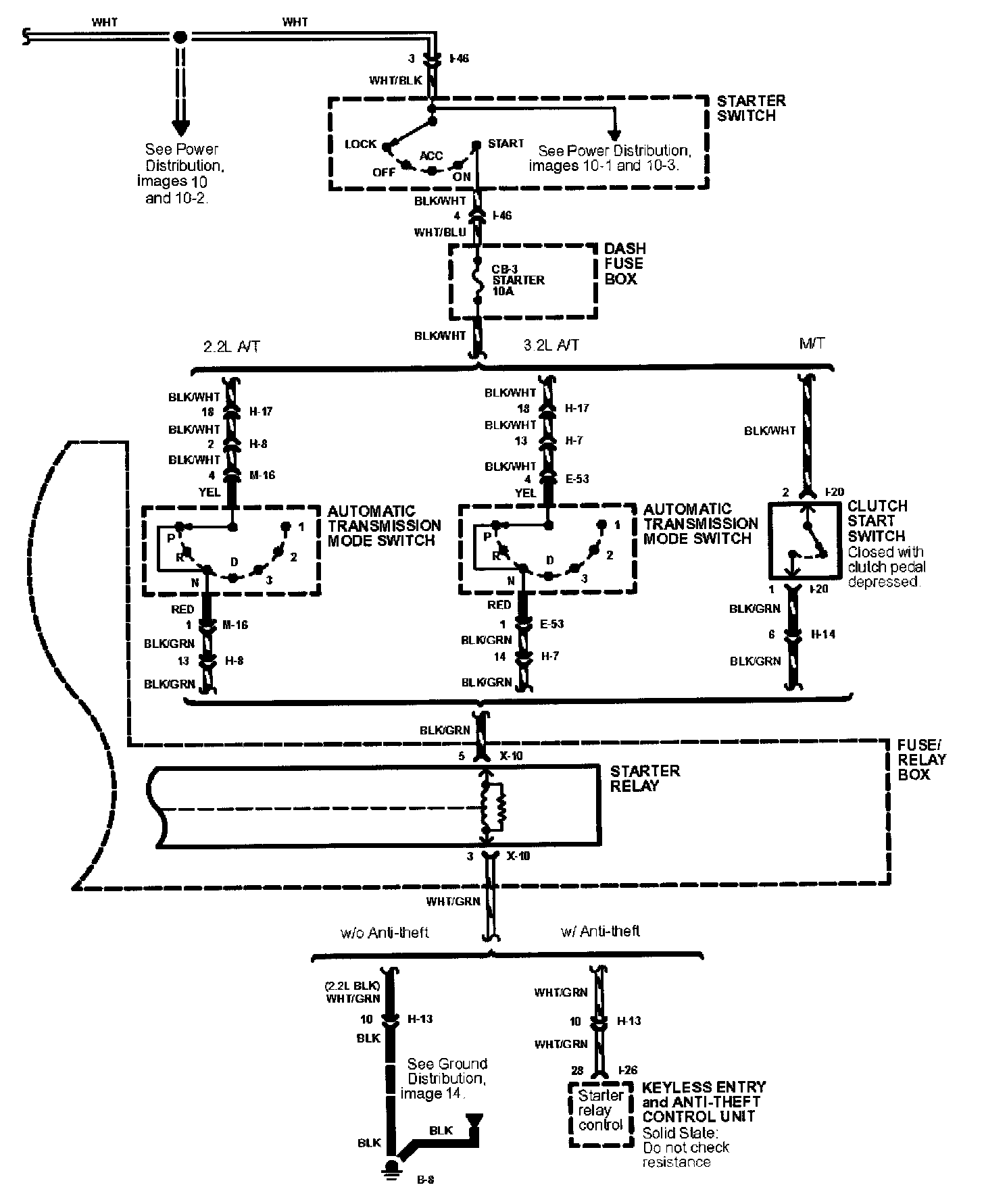

Starting System Image 21-1:
