LEMON Manuals
: Even more car manuals for everyone
Home
>>
Isuzu
>>
2000
>>
VehiCROSS 4WD V6-3.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Locations
Oxygen Sensor: Locations

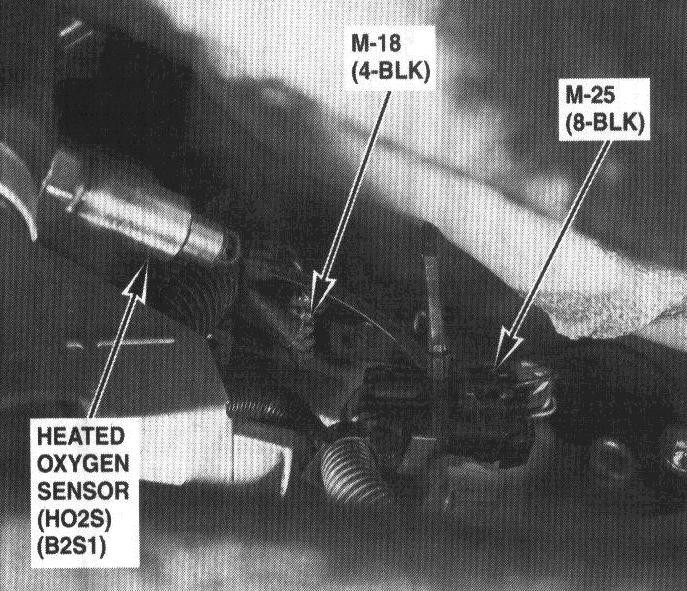

77 - Left Side Front Transmission:

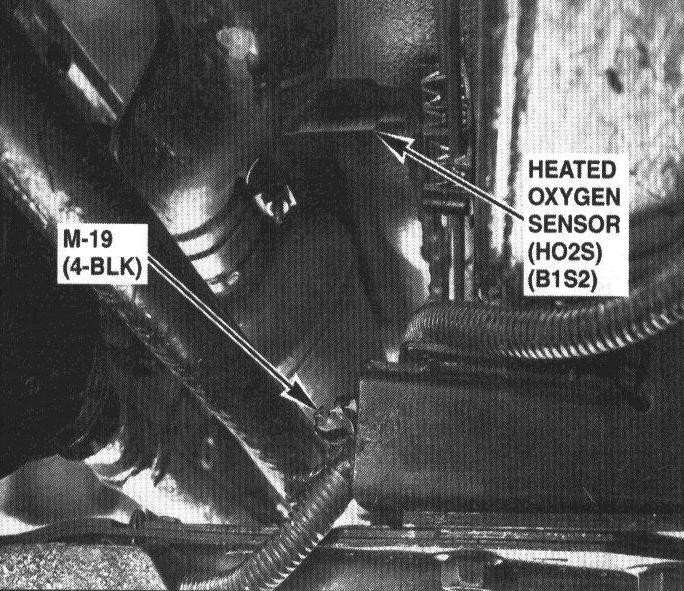

79 - Rear of Left Catalytic Converter:

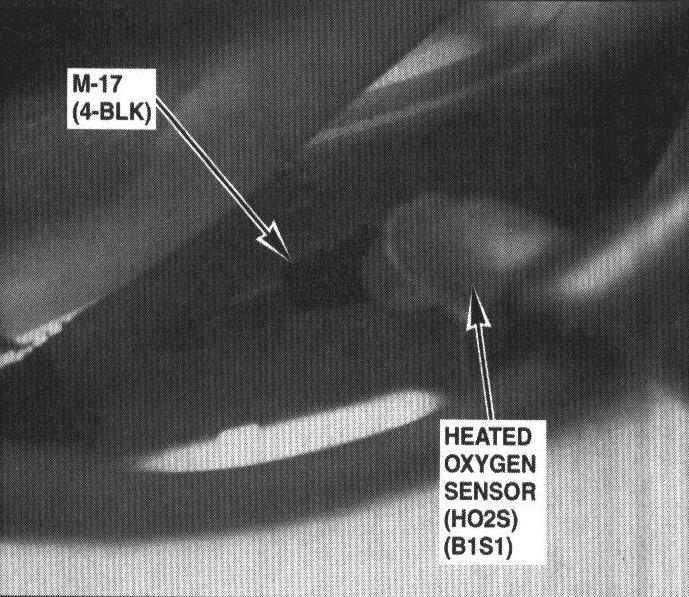

80 - Right Front of Transmission:

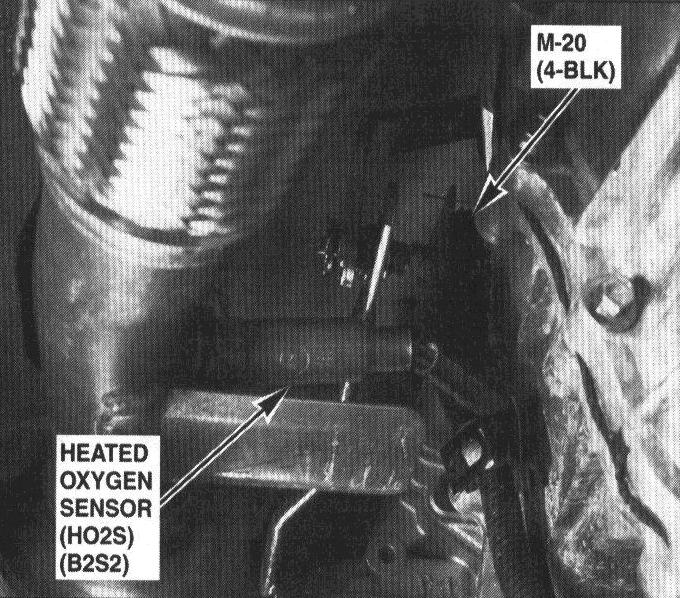

81 - Rear of Right Catalytic Converter:
