VehiCROSS 4WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>

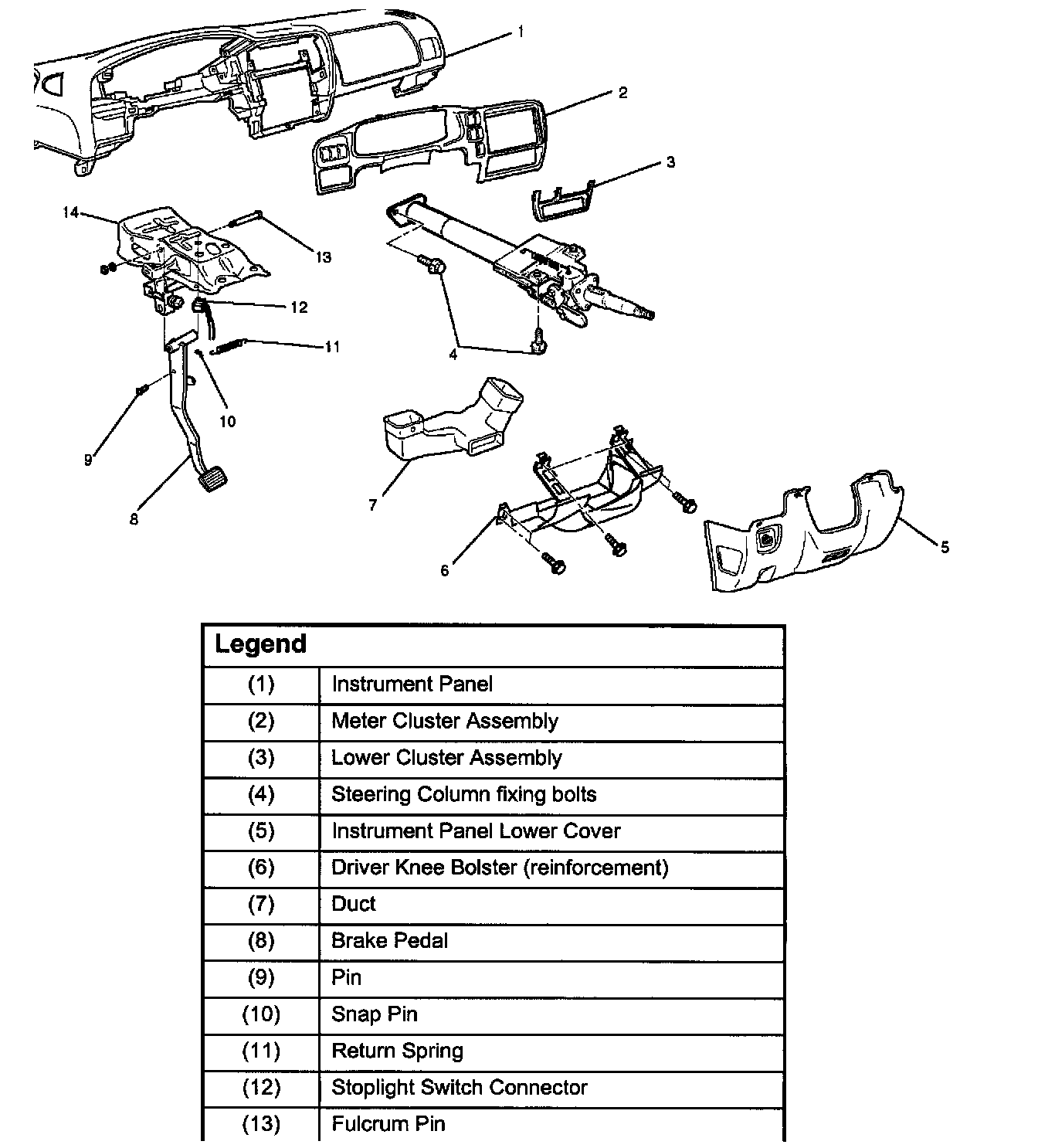

Brake Pedal Assy
Brake Pedal Assy
Part 1 of 2
Part 2 of 2
