Home >> Isuzu >> 2000 >> Trooper LS V6-3.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering >> Steering Gear

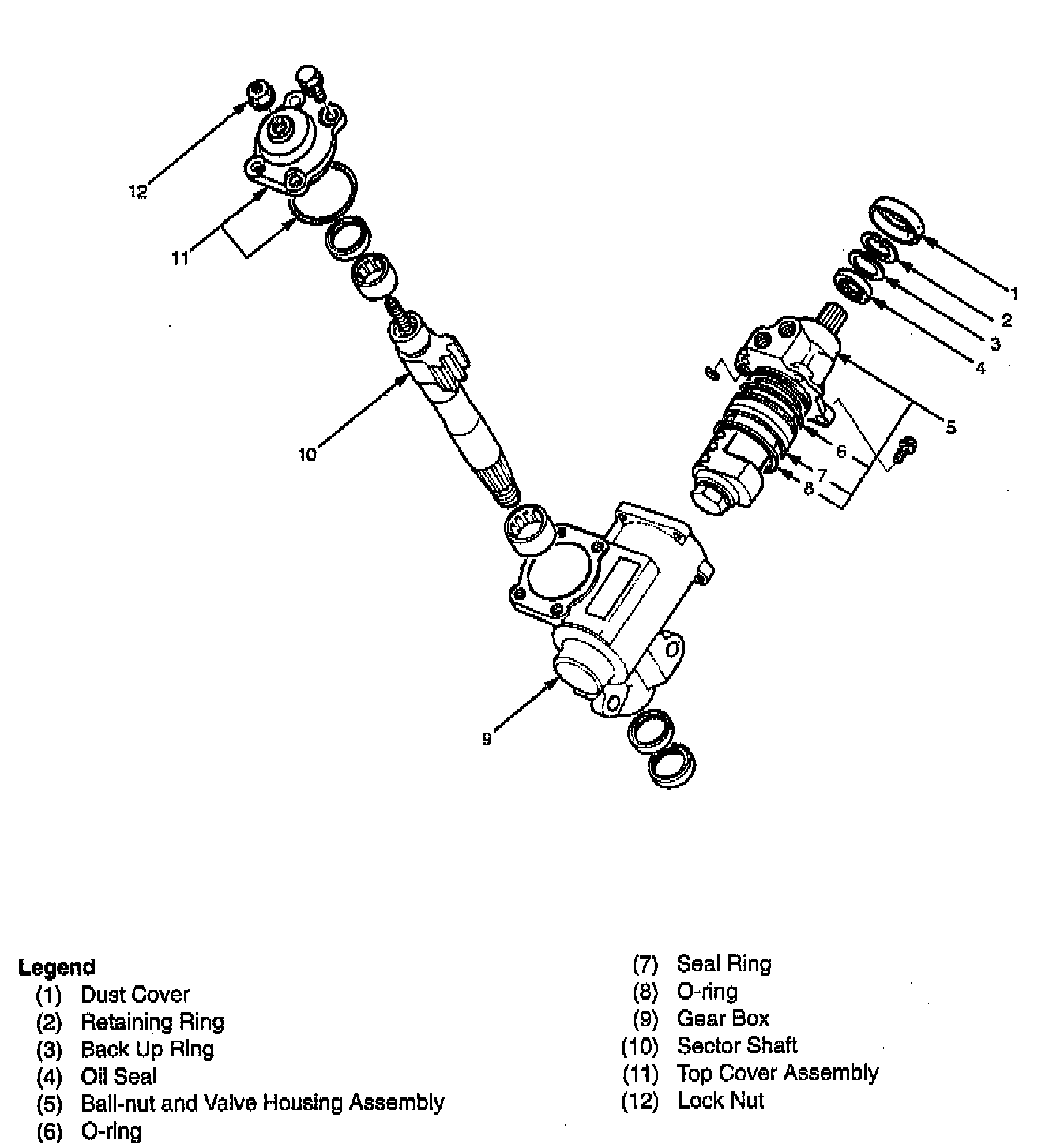

Steering Gear

Steering Gear Without Torque Specifications:



Steering Gear With Torque Specifications:
