Home >> Isuzu >> 2000 >> Trooper LS V6-3.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Brake Fluid Level Sensor/Switch

Brake Fluid Level Sensor/Switch

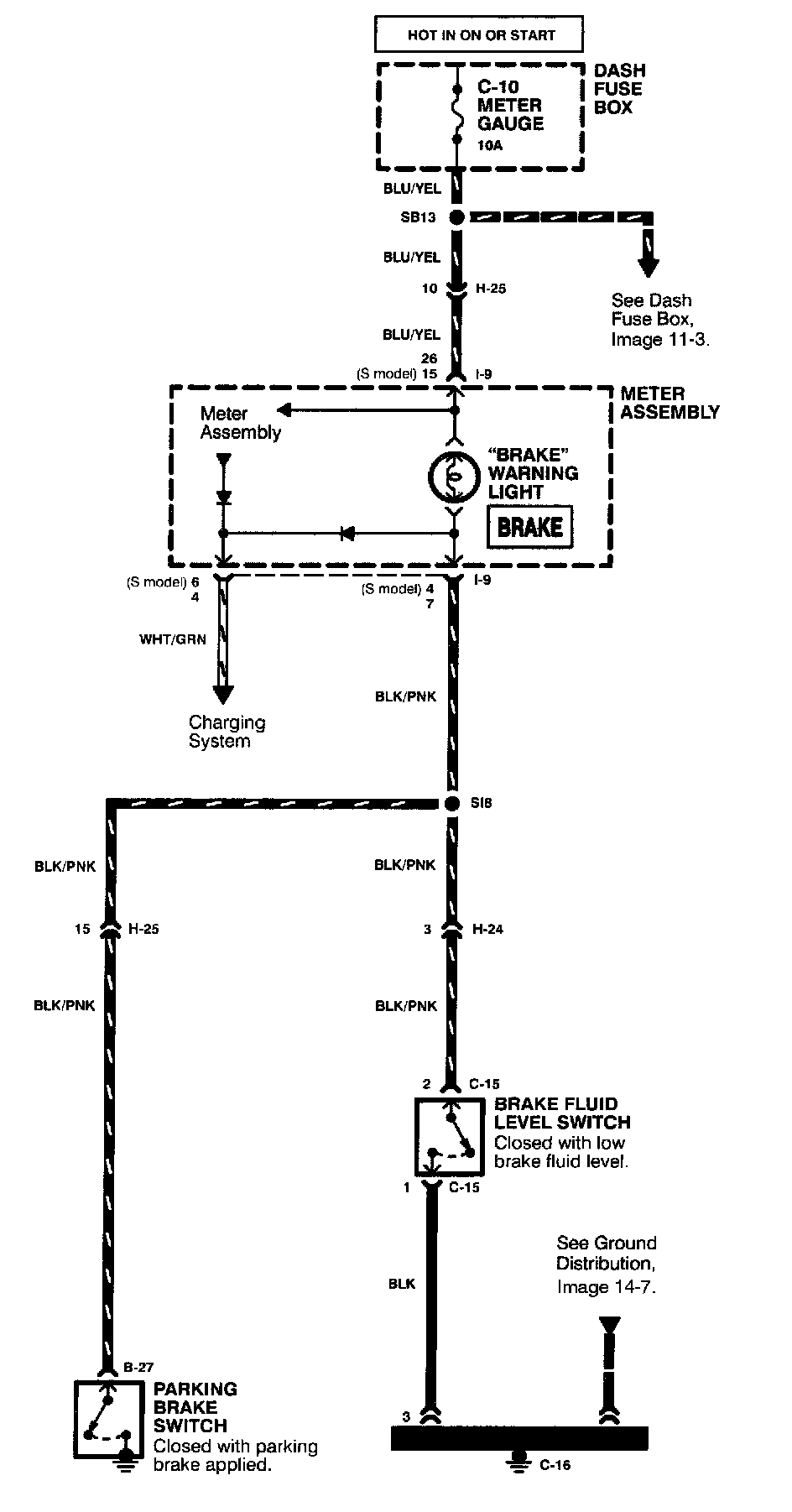

Brake Warning System Image 71:
