Home >> Isuzu >> 2000 >> Rodeo S 2WD L4-2.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Console

Console

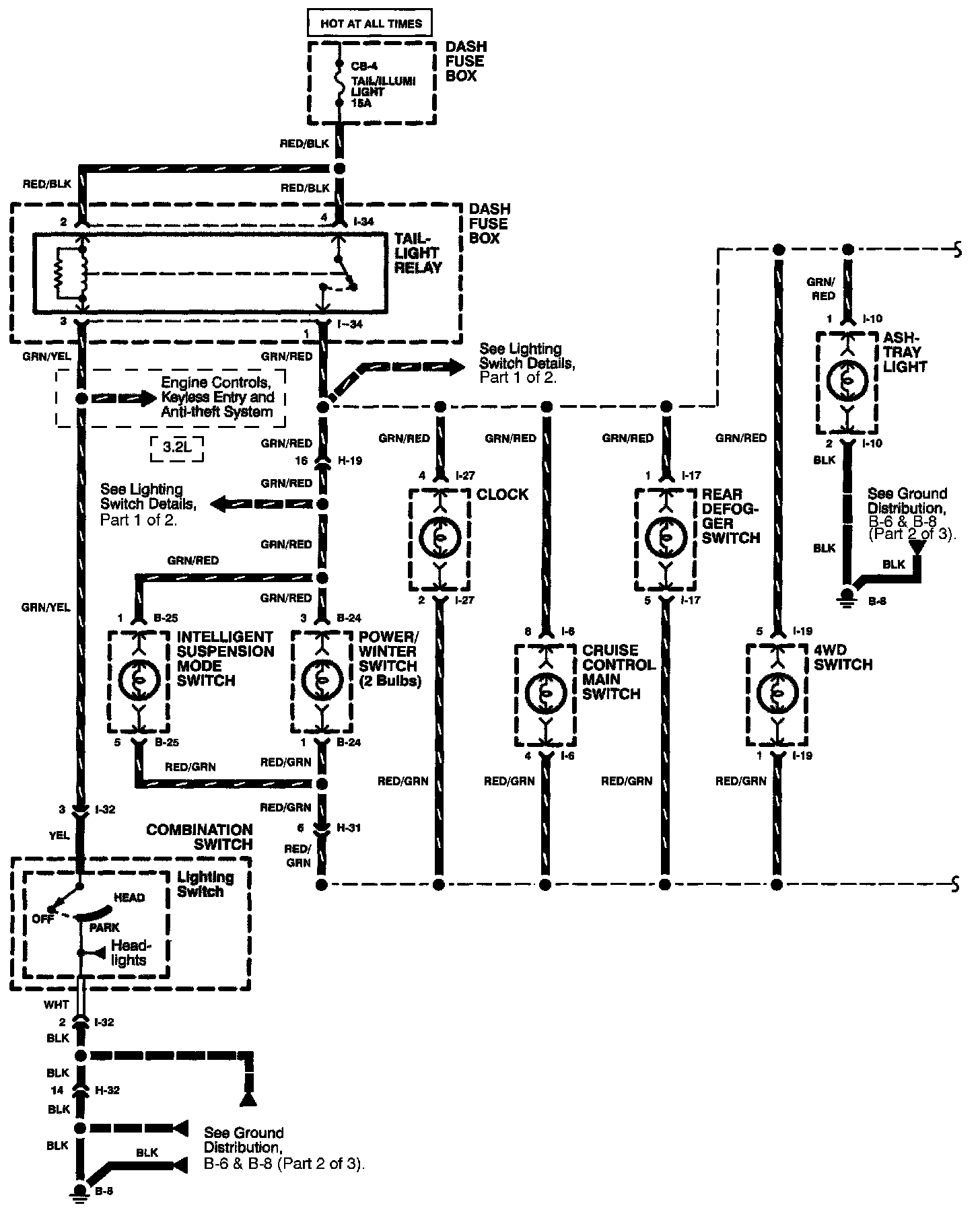

Dash & Console Lights (1 Of 2):

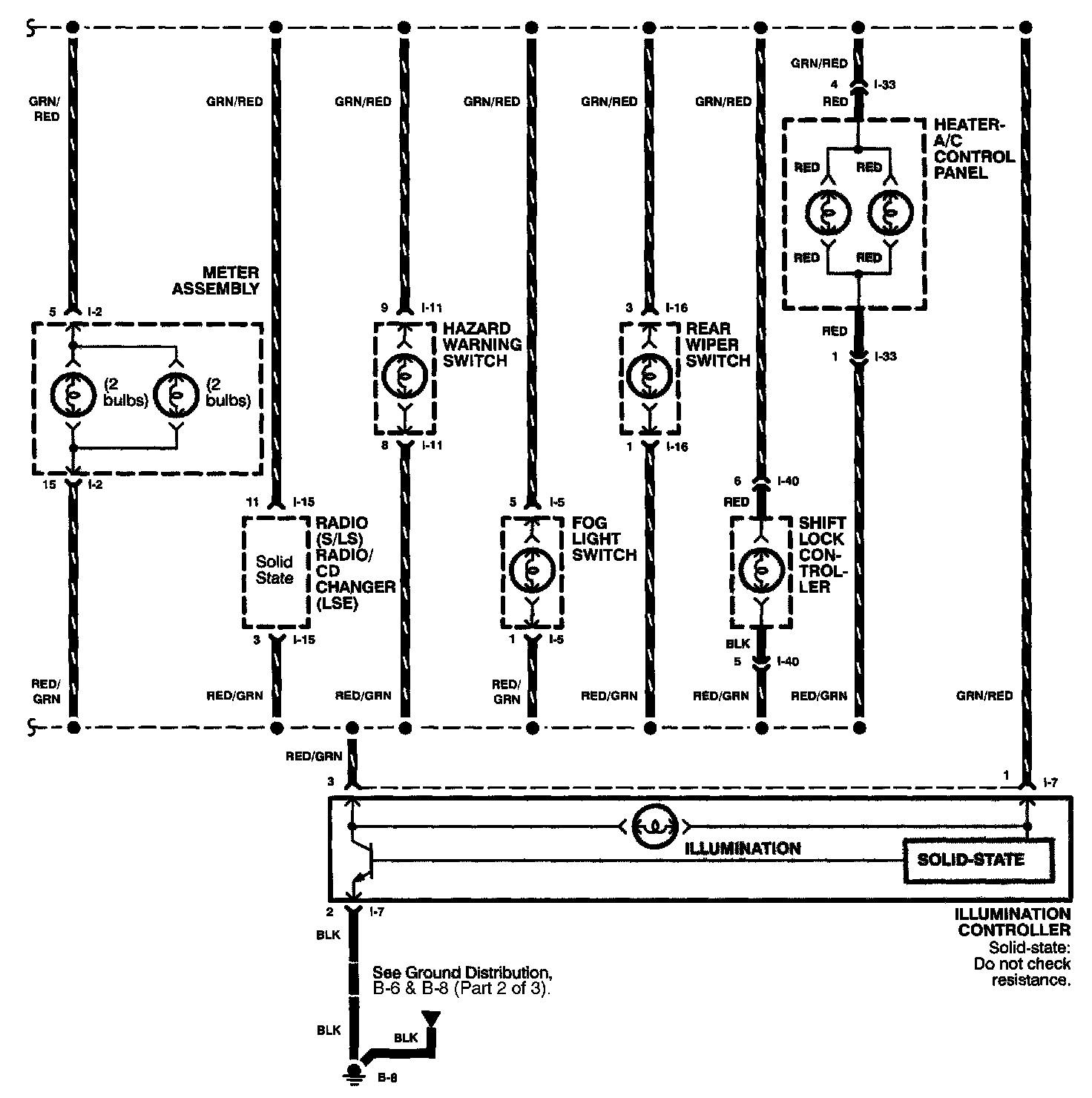

Dash & Console Lights (Part 2 Of 2):
