Home >> Isuzu >> 2000 >> Rodeo S 2WD L4-2.2L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Brake Fluid Level Sensor/Switch

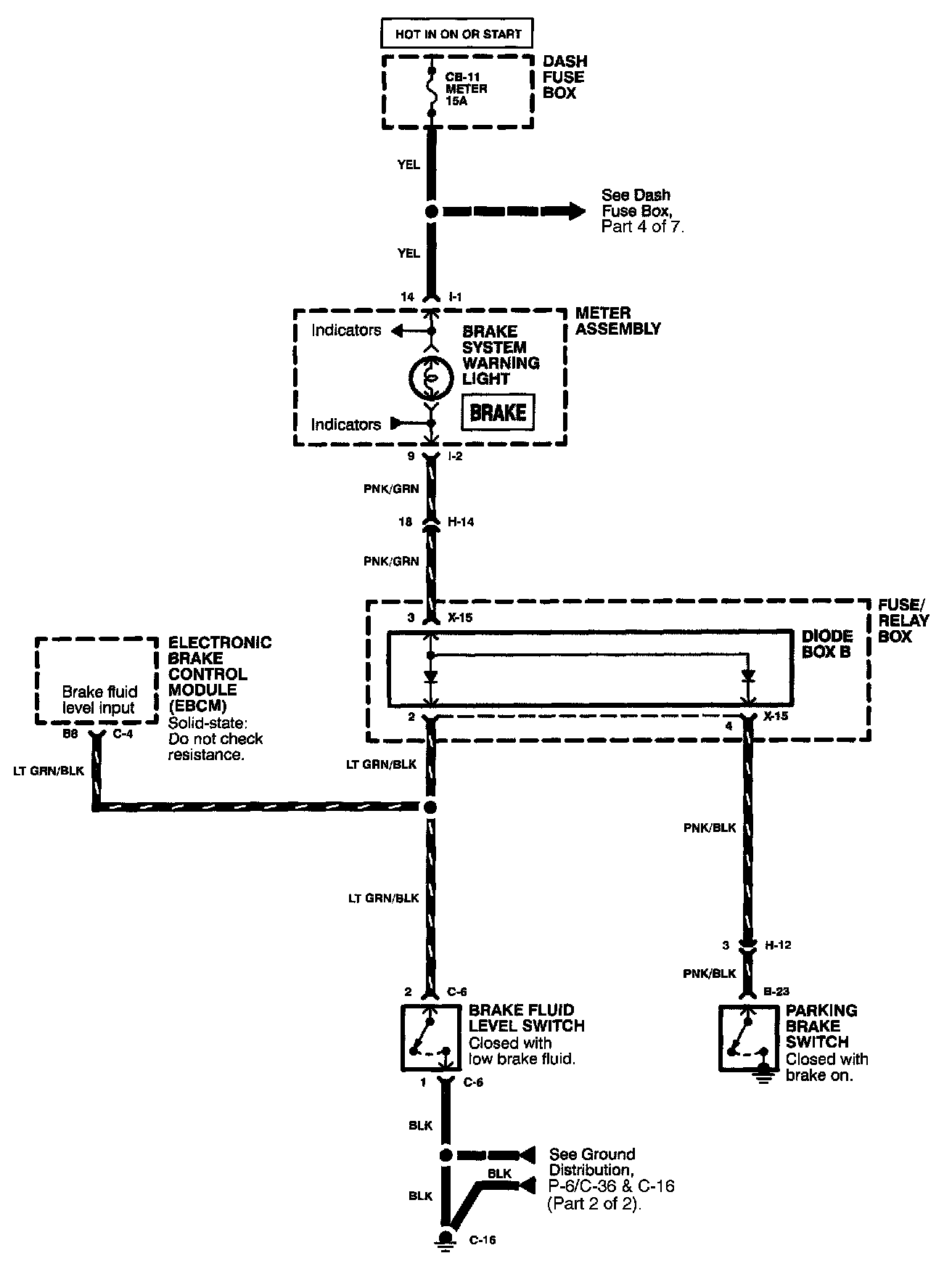

Brake Fluid Level Sensor/Switch

Brake Warning System:
