Manual Transmission/Transaxle

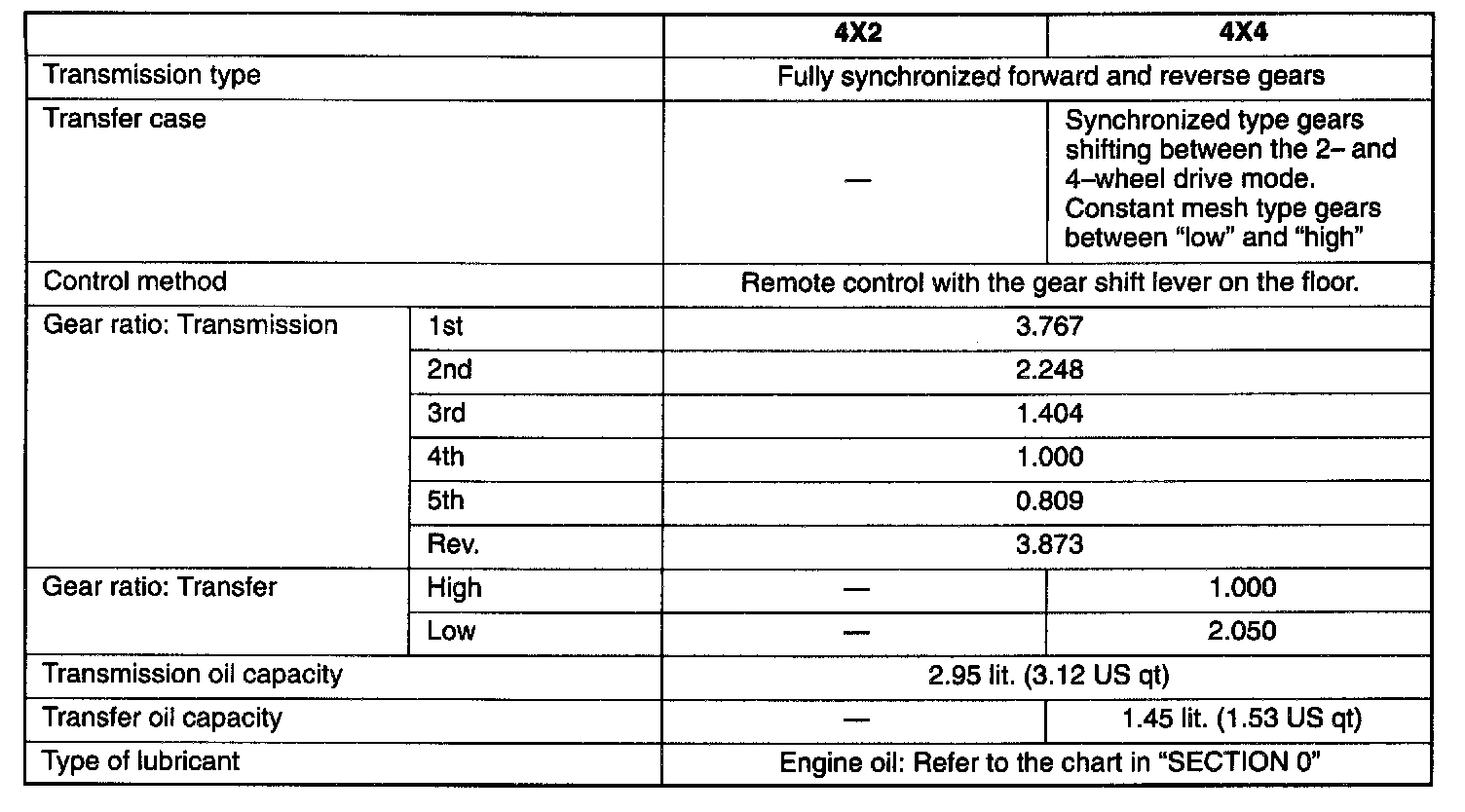

GENERAL SPECIFICATIONS





(MUA)





(TREMEC T5R)

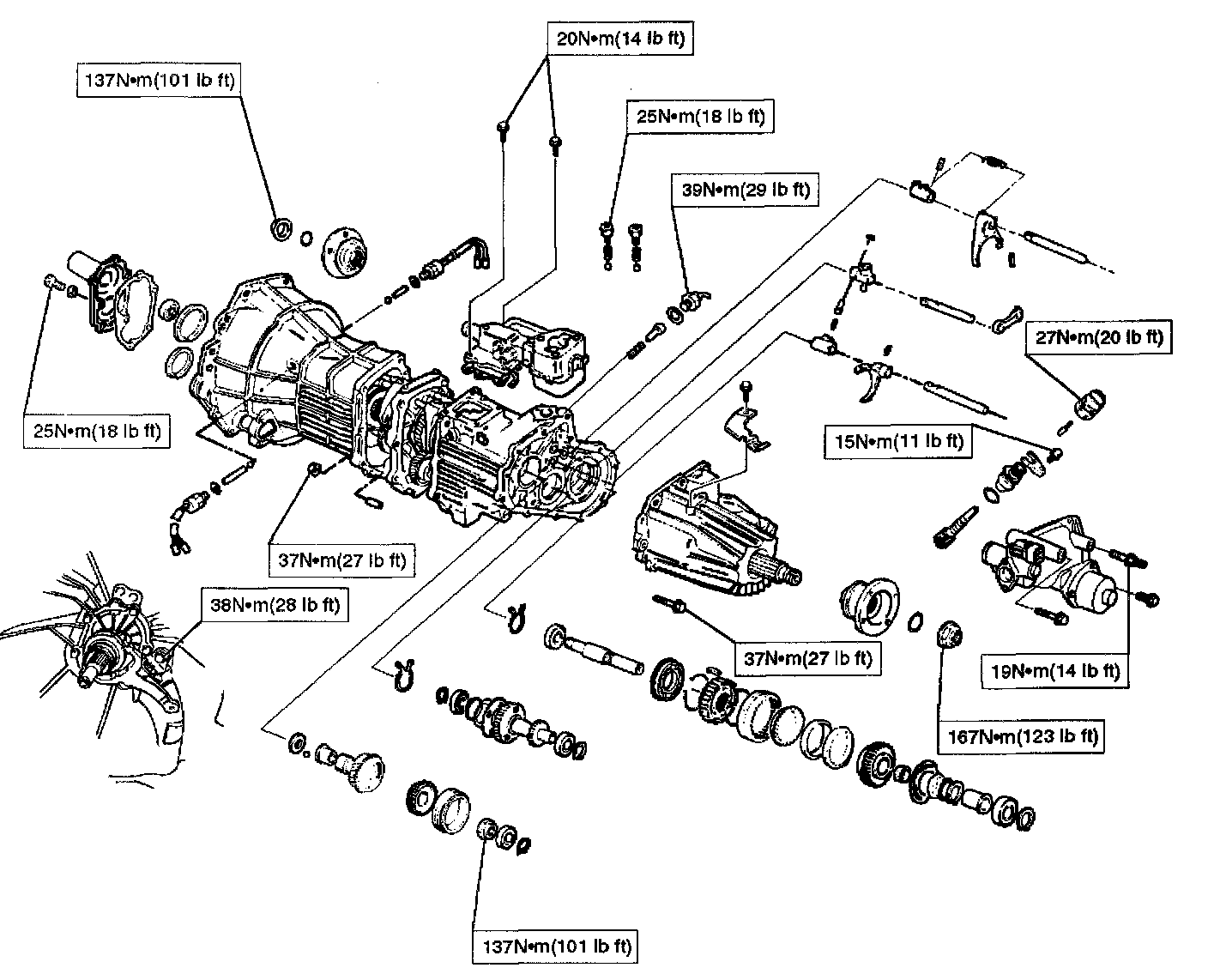

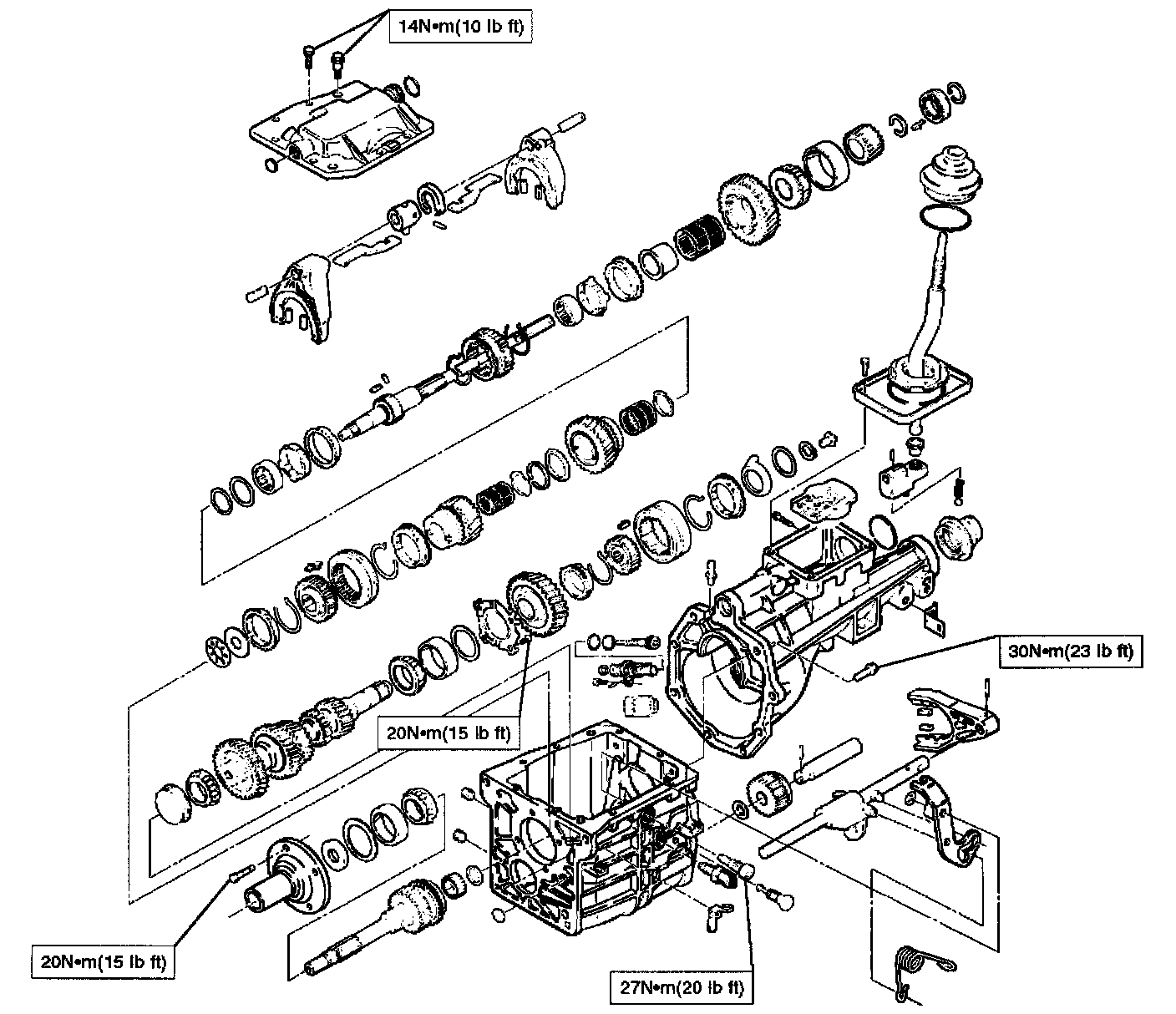

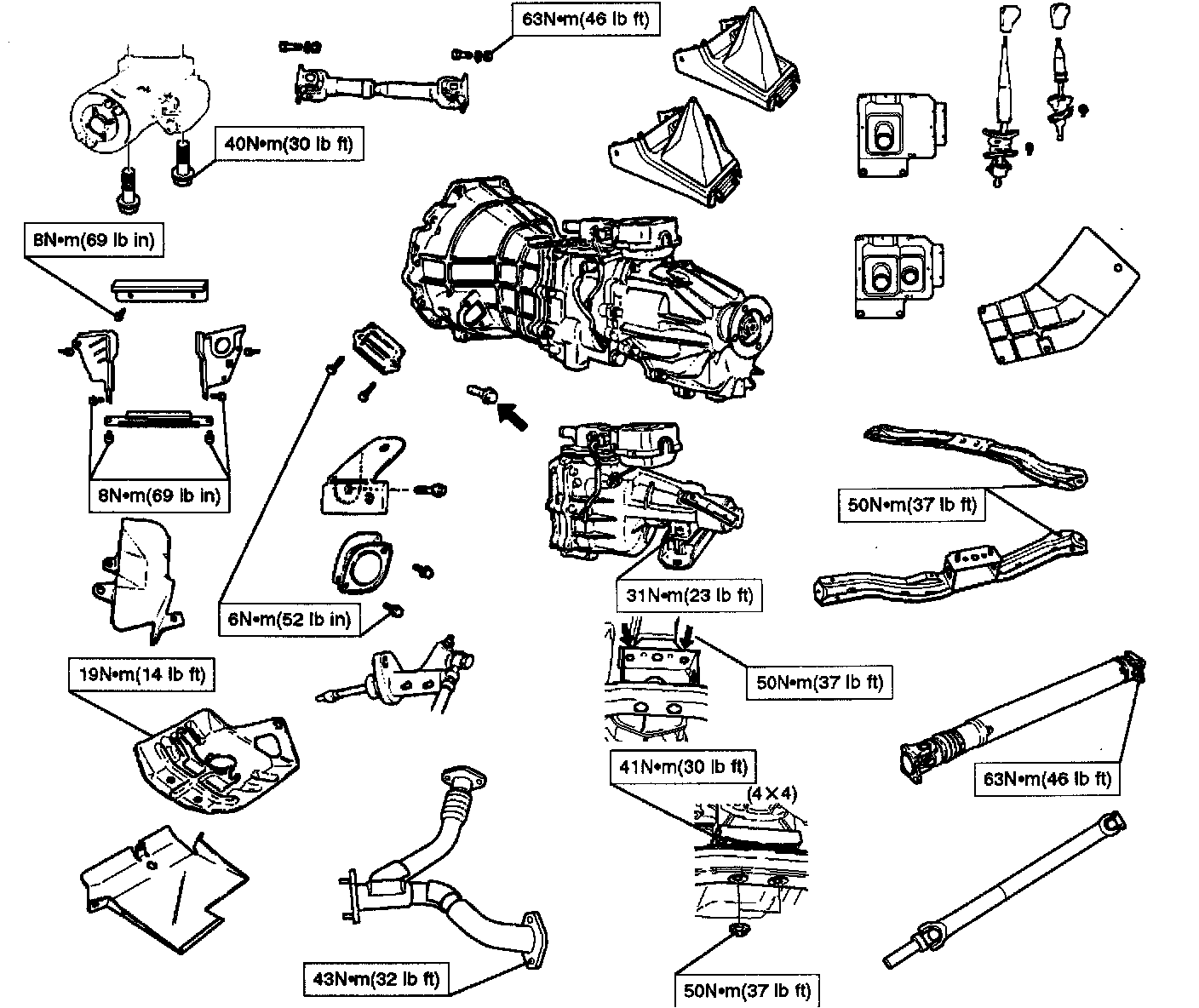

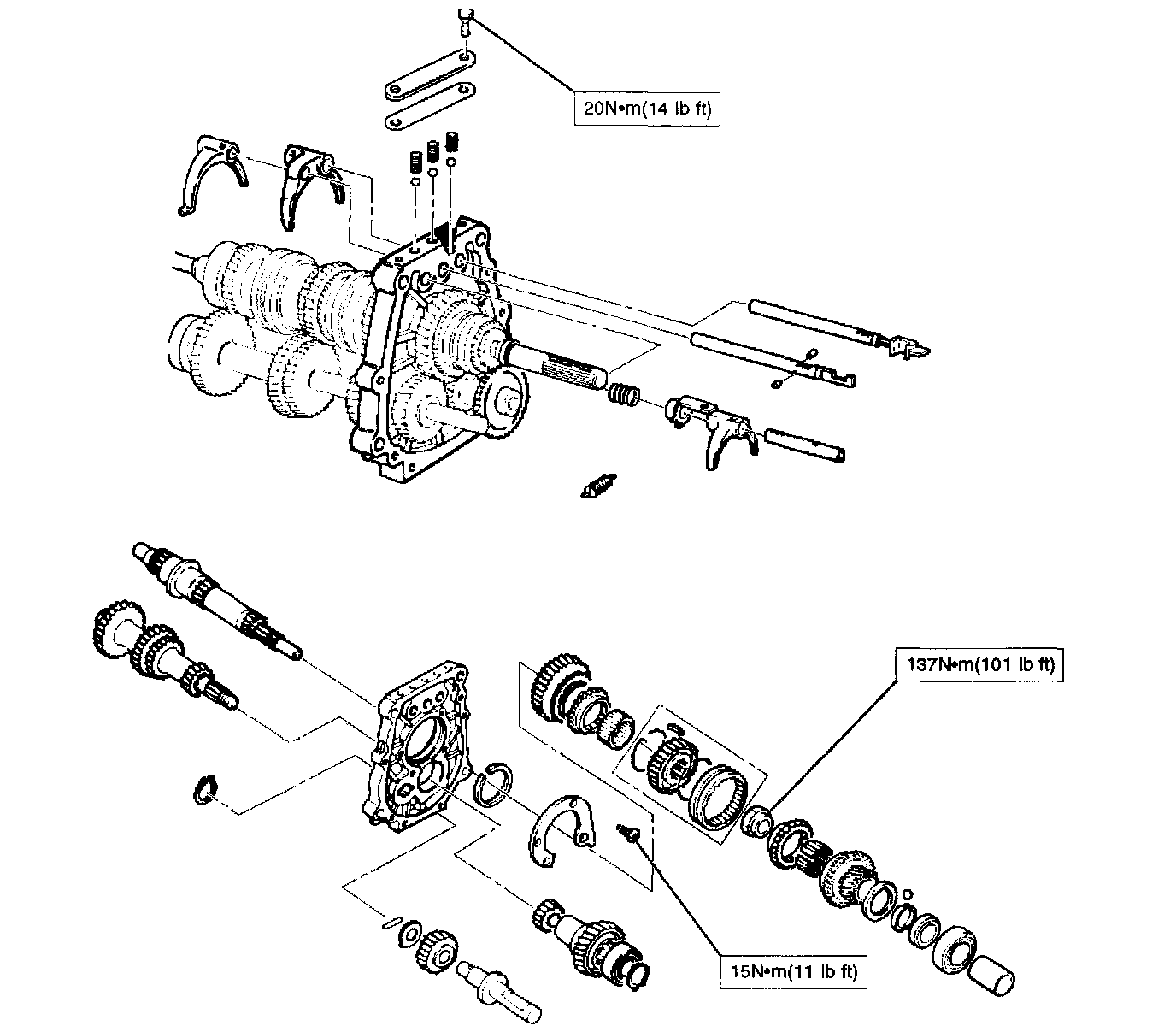

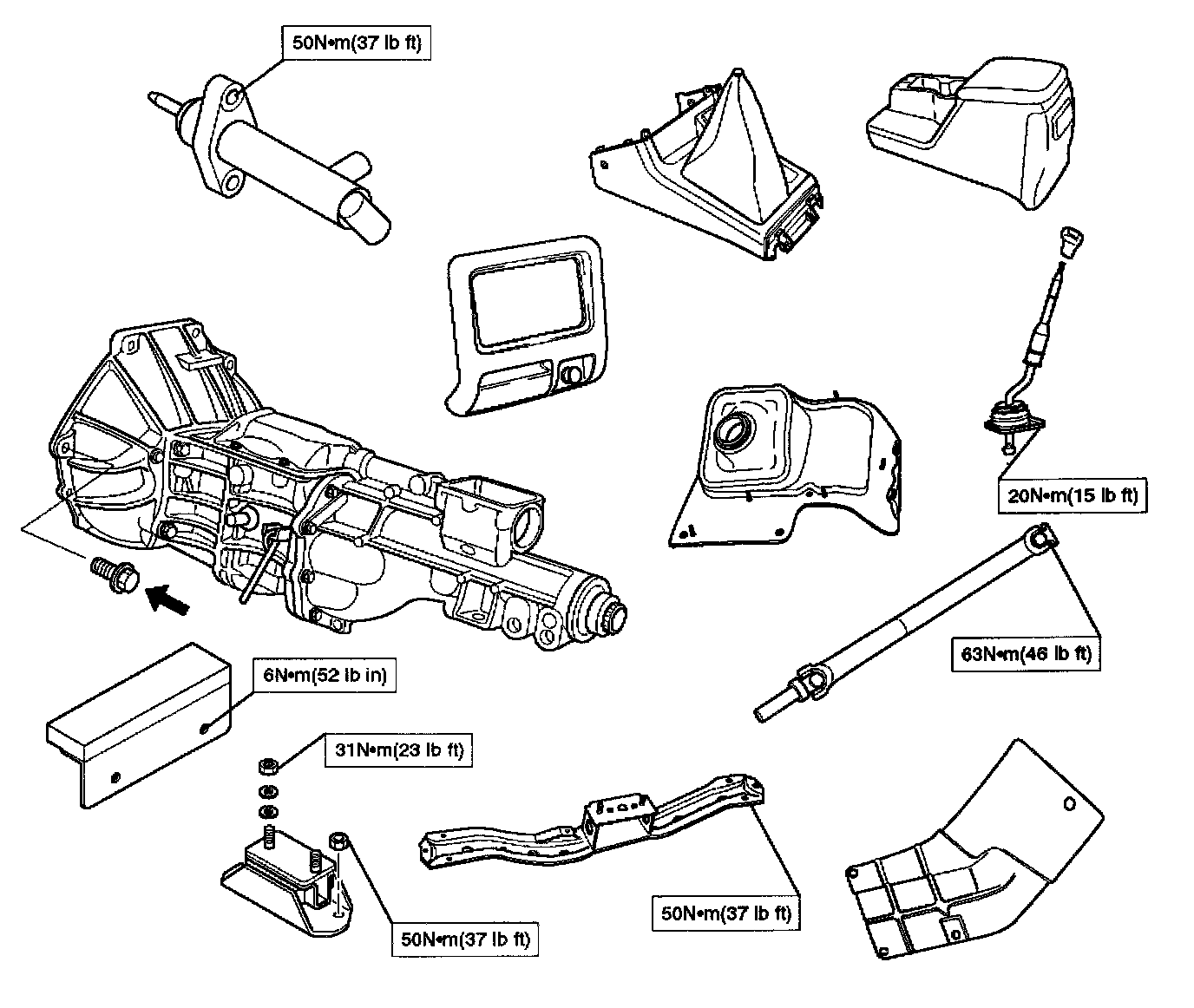

TORQUE SPECIFICATIONS





Part 1 of 5





Part 2 of 5





Part 3 of 5





Part 4 of 5





Part 5 of 5
