Windows

Side Window Regulator Motor, LF:



Side Window Regulator Motor, RF:

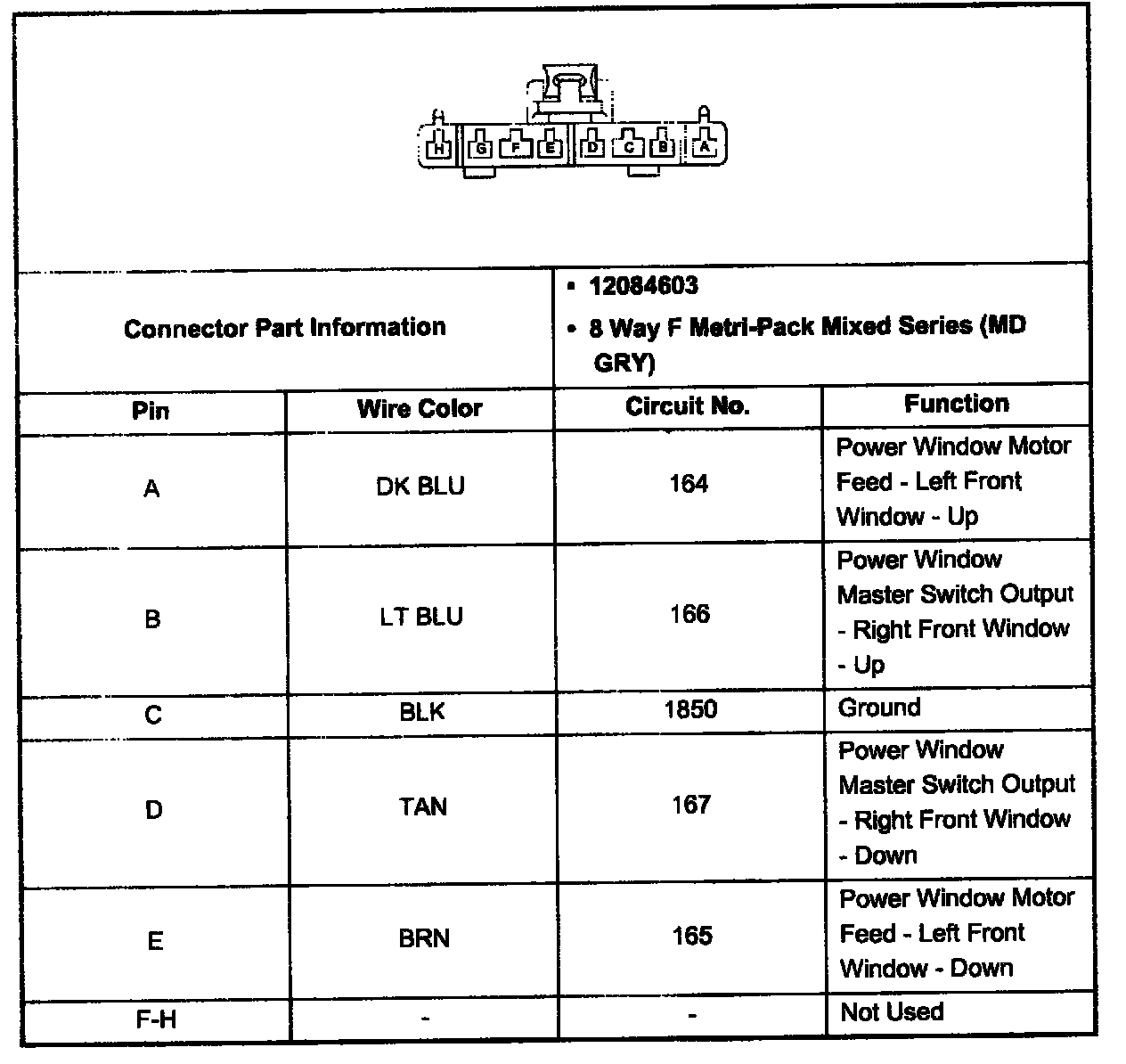

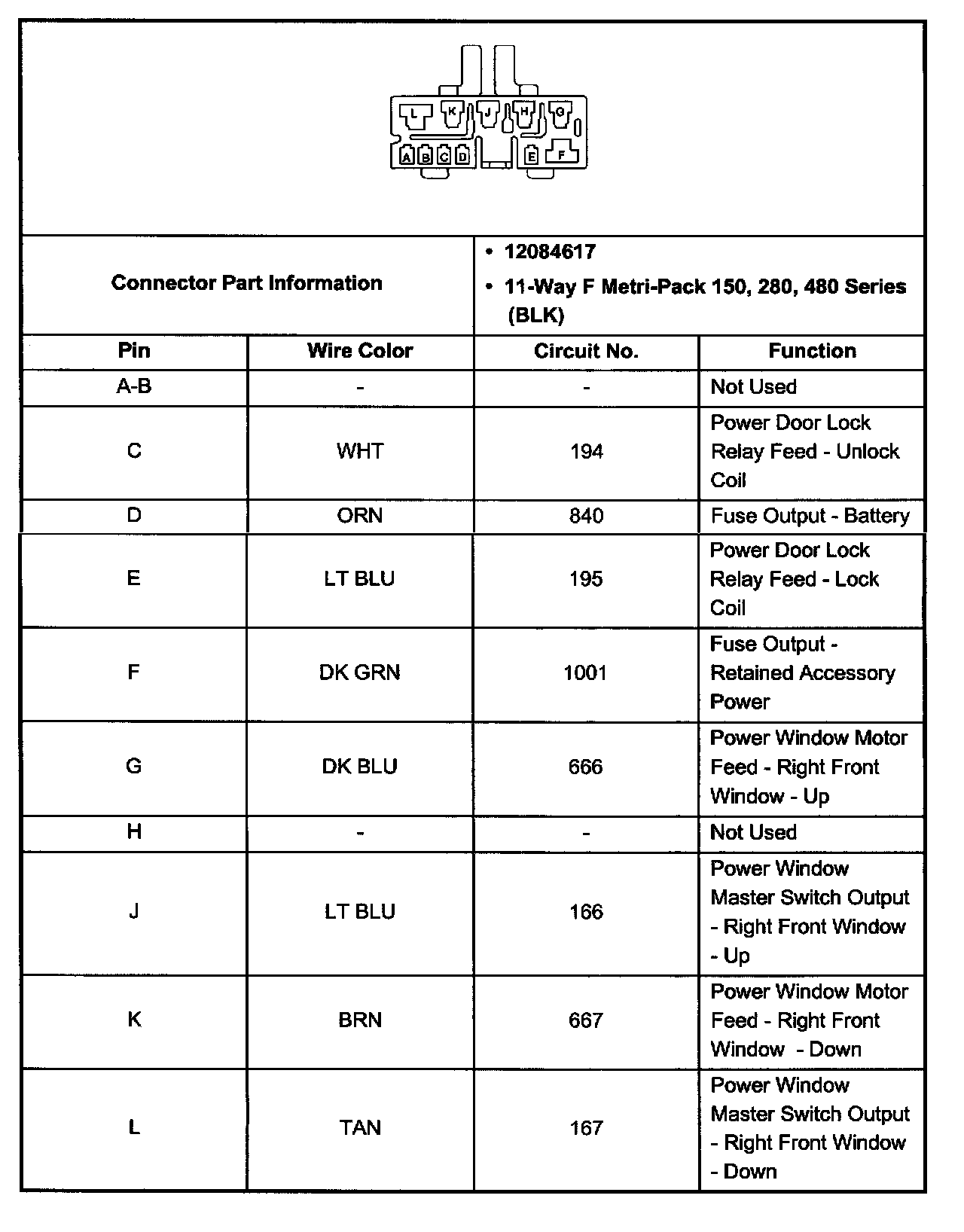

Door Lock and Side Window Switch, LH, Connector C1:

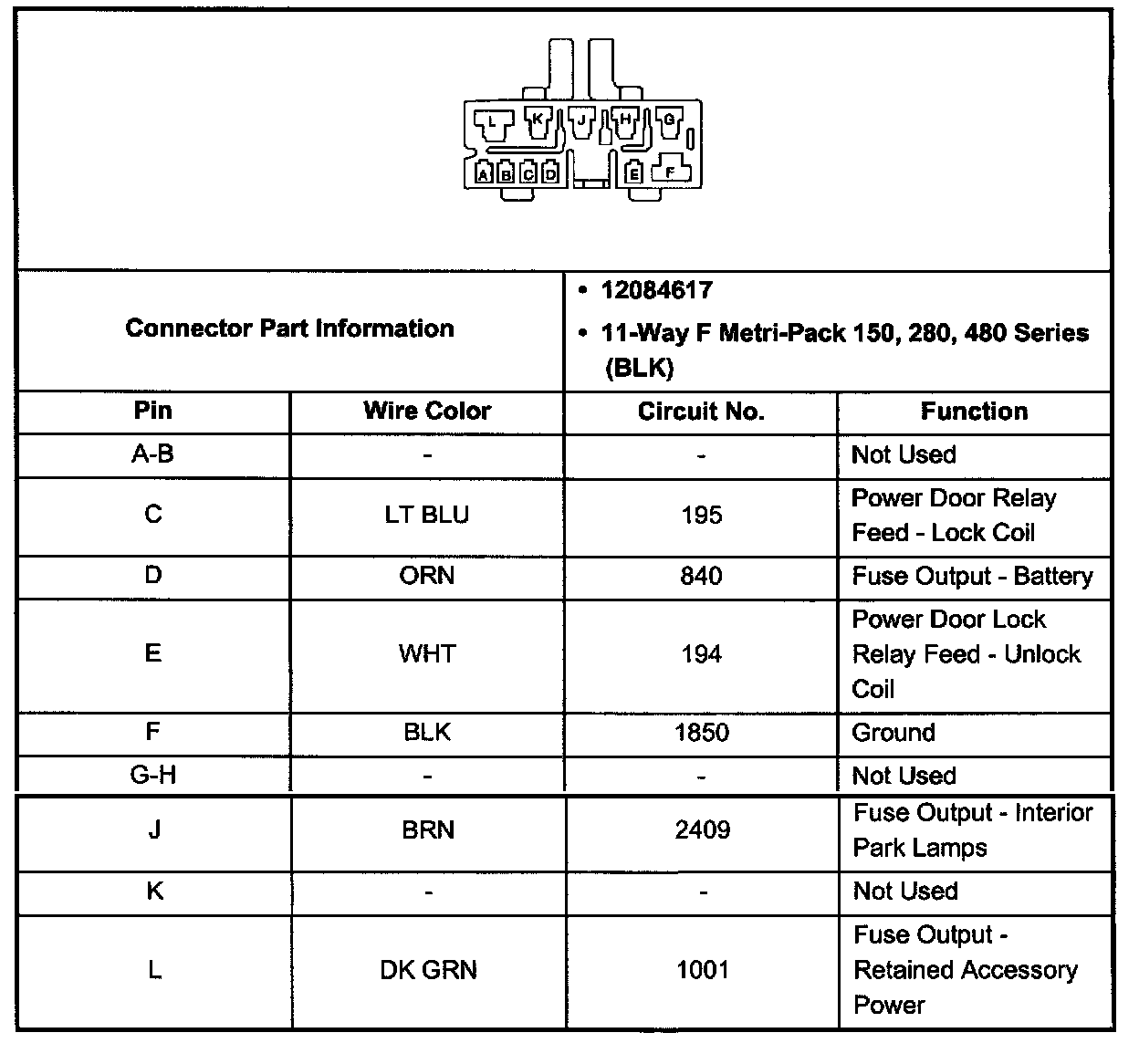

Door Lock and Side Window Switch RH Connector C1:

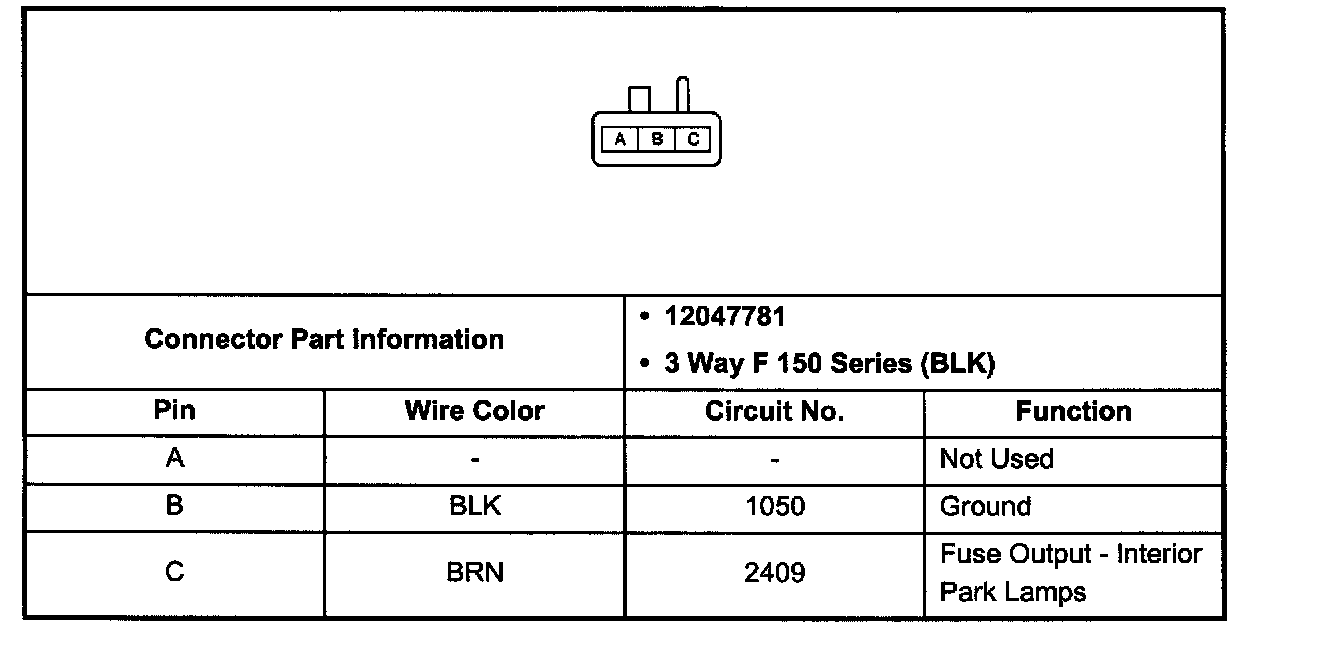

Door Lock and Side Window Switch LH, Connector C2:



Door Lock and Side Window Switch RH, Connector C2:
